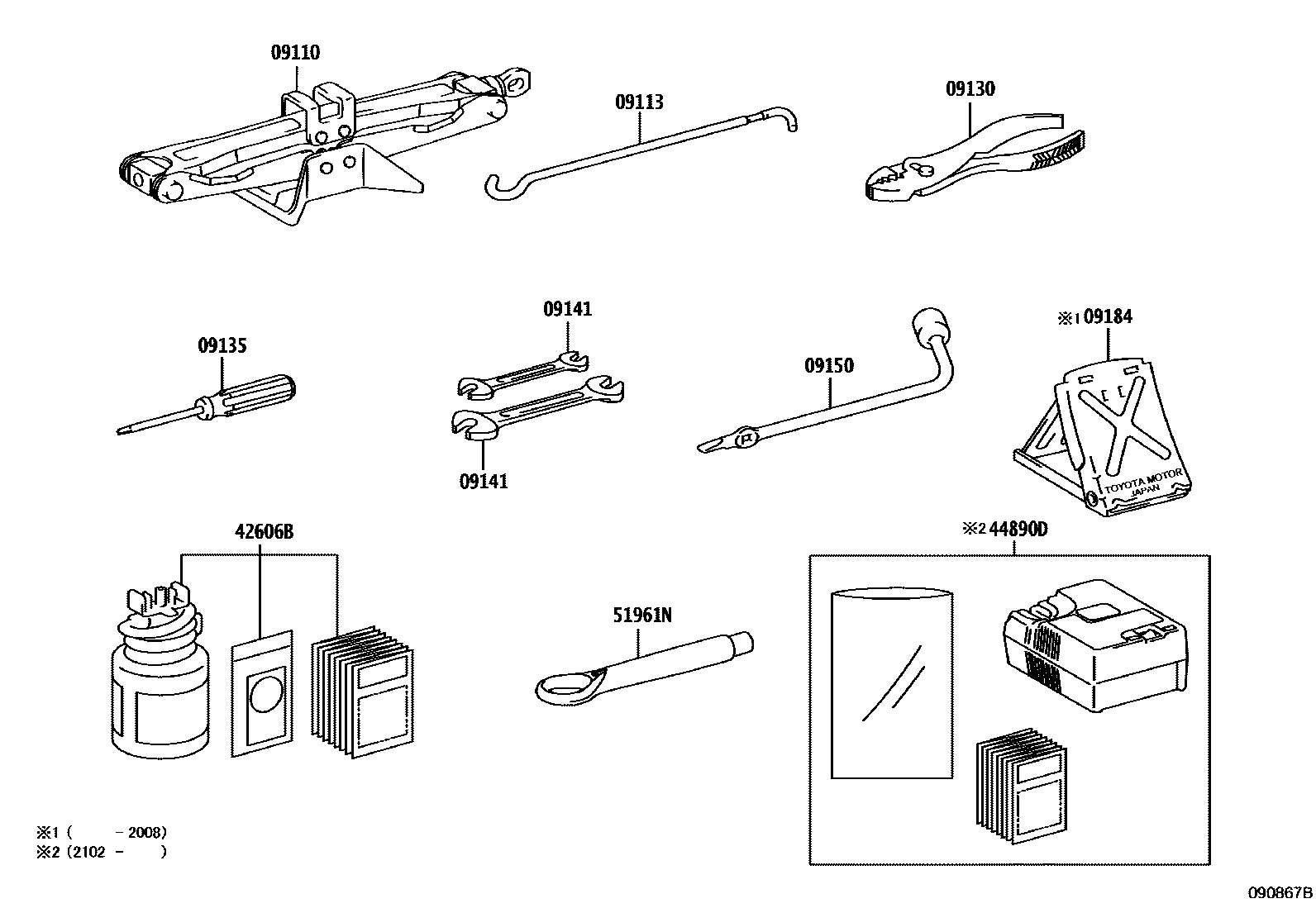

STANDARD TOOL

09110JACK ASSY

main09110-33050iAXVA70,AXVH70..ARL201709-202101

main09110-33080iAXVH71,MXVA71..TAIW,TAKR201808-202101

main09111-33050iASV70,AXVA70,AXVH71,GSV70..GCC201712-202110

sub09111-33051

main09111-33051iAXVA70,AXVH71,GSV70..GCC202111

09113HANDLE, JACK

main09113-42030iASV70,AXVA70,AXVH7#,GSV70201709-202101

09130PLIERS

main99913-11500iASV70,AXVA70,AXVH71,GSV70..GCC201712-202101

09135DRIVER, SCREW

main99915-10700iAXVA70,AXVH71,GSV70..GCC201712-202101

09141SPANNER

main99914-10810iASV70,AXVA70,AXVH71,GSV70..GCC201712-202101

8 X 10

main99914-11214iASV70,AXVA70,AXVH71,GSV70..GCC201712-202101

12 X 14

09150WRENCH, HUB NUT BOX

main09150-42010iAXVA70,AXVH7#,GSV70,MXVA71201709-202101

09184STOPPER, WHEEL

main09184-00010

42606BREPAIR KIT, TUBELESS TIRE

main42606-12040iAXVH71,MXVA71..TAIW,TAKR202102-202212

SPARE TIRE-TEMPORARY TIRE

sub42606-42080

main42606-30011iASV70,AXVA70,AXVH7#,GSV70201910-202101

sub42606-42080

main42606-42080iAXVH71,MXVA71..TAIW,TAKR202212

main42606-58010iASV70,AXVA70,AXVH71,GSV70201709-201910

44890DCOMPRESSOR ASSY, AIR

main44890-12030iAXVH71,MXVA71..TAIW,TAKR202102-202212

sub44890-42050

main44890-42050iAXVH71,MXVA71..TAIW,TAKR202212

51961NHOOK, TRANSPORT

main51961-33010iASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE201709-202101

main51961-33010iAXVH7#;ASV70..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD201712-202101

ATARA S

main51961-33010iAXVH7#;ASV70..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD201712-202101

ATARA SL

10 parts on this diagram · 1 diagram in section
