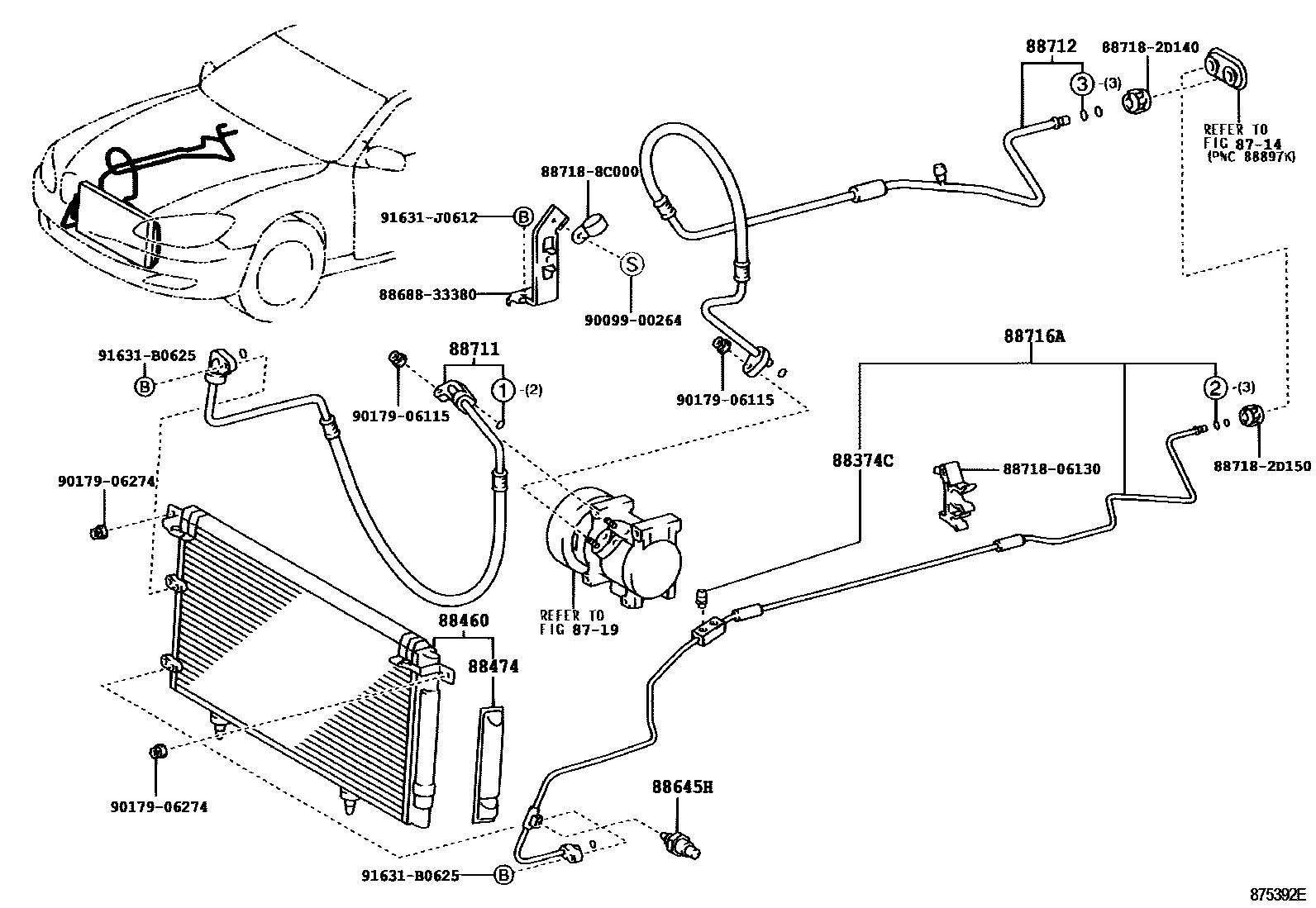

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1SINGAPORE DEALER OPTION 0004 1 0005 1 0006 1 0007 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374CVALVE, SERVICE, NO.2

main88374-30010iACV3#,MCV30..(TAIW,VN)..(4FC,5F)200203-200407

88460CONDENSER ASSY, COOLER

main88460-06080iACV30,MCV30..IDN200205-200405

main88460-06090iACV3#..MA200206-200407

main88460-06100iACV3#..TH200203-200405

main88460-06110iACV30,MCV30..PHL200407

main88460-06120iACV3#,MCV30..TAIW,VN200203-200307

main88460-06121iACV3#..TAIW,VN;MCV30..(TAIW,VN)..5FC200404

88474DRYER, COOLER

main88474-06010iACV3#..TH200203-200405

main88474-17010iACV3#..TAIW,VN;MCV30..(TAIW,VN)..5FC200404

main88474-47010iACV3#..MA,PHL200203-200407

88645HSWITCH, PRESSURE NO.1

main88645-60030iACV31,MCV30..TAIW200203-200404

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06140iMCV30..IDN200205-200405

main88711-06150iACV30..IDN200205-200405

main88711-06160iACV3#..MA200407

main88711-06170iACV30..PHL200407

main88711-06180iMCV30..TAIW200404

main88711-06190iACV31..TAIW200203-200404

main88711-06200iACV3#..TH200203-200405

main88711-06210iMCV30..PHL200407

main88711-06220iMCV30..TH200405

main88711-33160iMCV30..VN200207-200407

main88711-33180iACV30..VN200407

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-06140iMCV30..IDN200205-200405

main88704-06150iACV30..IDN200205-200405

main88704-06160iACV3#..MA200206-200407

main88704-06170iACV30..PHL200407

main88704-06180iMCV30..TAIW200404

main88704-06190iACV31..TAIW200404

main88704-06200iACV3#..TH200203-200405

main88704-06250iMCV30..PHL200407

main88704-06260iMCV30..TH200405

main88704-33270iMCV30..VN200207-200407

main88704-33290iACV30..VN200207-200407

main88712-33220iMCV30..TAIW200203-200404

main88712-8C004iACV31..TAIW200203-200404

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-06140iACV30,MCV30..PHL200407

main88710-06170iACV31,MCV30..TAIW200404

main88710-33260iACV30,MCV30..VN200407

main88716-06170iACV30,MCV30..IDN200205-200405

main88716-06180iACV3#..MA200407

main88716-06190iACV3#..TH200203-200405

main88716-33420iACV31,MCV30..TAIW200203-200404

8868833380BRACKET, COOLER DIAPHRAGM

main88688-33380

8871806130PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06130

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887188C000PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-8C000

9009900264

main90099-00264

9017906115

main90179-06115

9017906274

main90179-06274

91631B0625

main91631-B0625

91631J0612

main91631-J0612

19 parts on this diagram · 7 diagrams in section
