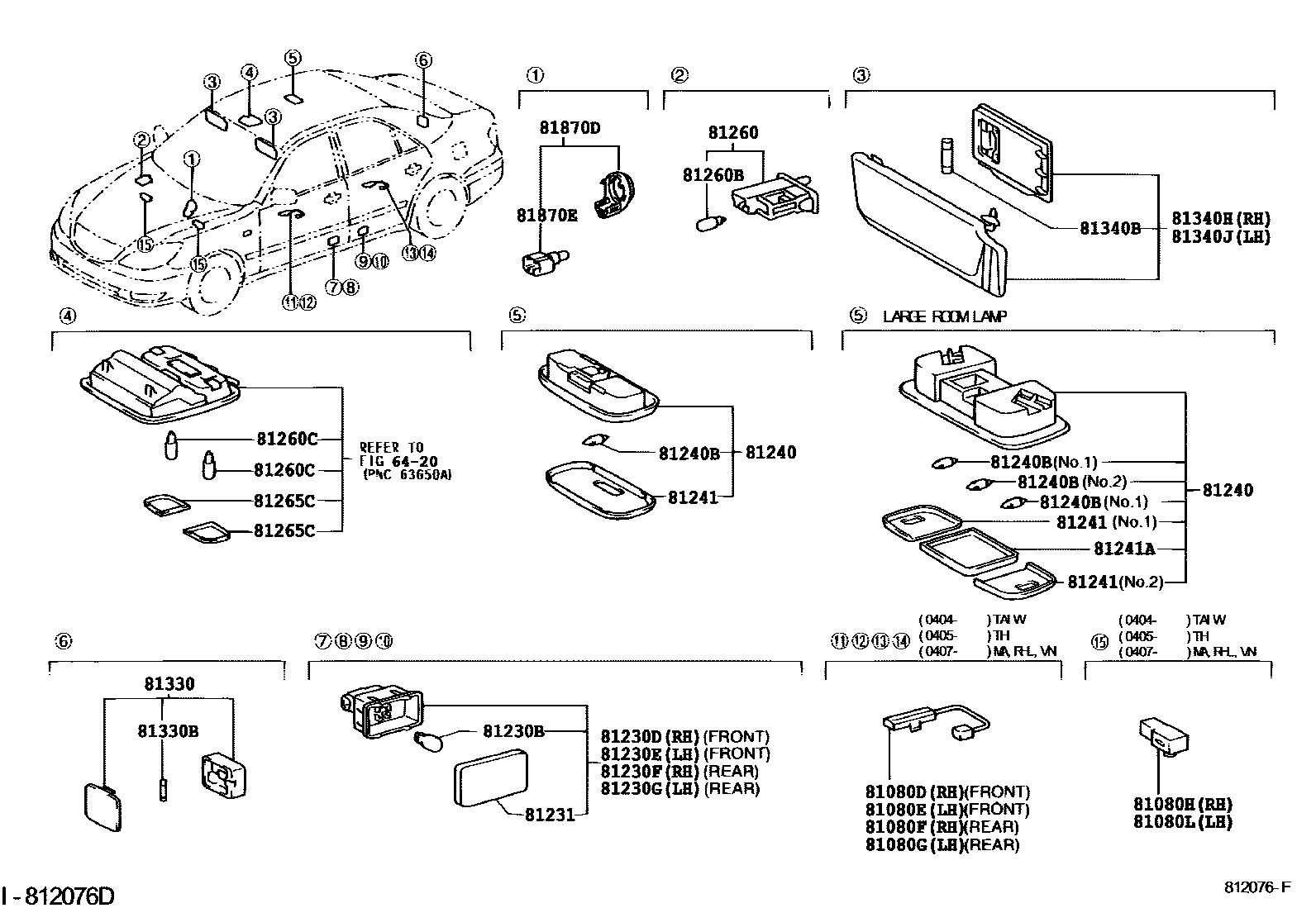

INTERIOR LAMP

6420

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-33010iMCV30..5FC;ACV30..(MA,TH)..4FC200404-200611

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

main81090-33010iMCV30..5FC;ACV30..(MA,TH)..4FC200404-200611

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-33010iACV30..MA200407-200608

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

main81090-33010iACV30..MA200407-200608

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48010iMCV30..5FC;ACV30..(MA,TH)..4FC200404

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48010iMCV30..5FC;ACV30..(MA,TH)..4FC200404

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iACV31..TAIW; MCV30..TAIW200203-200404

12V 3.8W

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

main81230-02010iACV31..MA;MCV30..VN..5FC;ACV30,MCV30..MA,PHL,TH200405

main81230-02021iMCV30..TAIW;ACV3#..TAIW,VN200404

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

main81230-02010iACV3#,MCV30..IDN,TH200203-200405

main81230-02021iACV30..VN200203-200407

81230FLAMP ASSY, REAR DOOR COURTESY, RH

main81230-02010iACV30..IDN;ACV30..24Q,24V;ACV31,MCV30..IDN,PHL,VN200203-200405

main81230-02021iMCV30..TAIW200404

81230GLAMP ASSY, REAR DOOR COURTESY, LH

main81230-02010iACV31..PHL;ACV30,MCV30..(MA,PHL,VN)..4FC200405-200407

main81230-02021iMCV30..TAIW200404

81231LENS, COURTESY LAMP

main81231-50010×4iACV3#..(20E,24G)..(MA,VN); ACV31..PHL;ACV30,MCV30..(MA,PHL,VN)..4FC200405-200407

81240LAMP ASSY, ROOM, NO.1

main81240-06030-A0iACV31..20E..TAIW200203-200404

IVORY,TRIM4#

main81240-06030-B0iACV31..20E..TAIW200405-200605

LT.GRAY,TRIM2#

main81240-06040-A0iACV31..PHL;ACV30..IDN,MA,PHL,TH;ACV31,MCV30..(20G,30G,30V)..(IDN,TAIW,VN)200203-200211

IVORY,TRIM4#

main81240-06040-B0iACV31,MCV30..(20G,30G,30V)..TAIW200203-200211

LT.GRAY,TRIM1#

main81240-06041-A0iACV30,MCV30..IDN,TH200211-200405

IVORY,TRIM4#

main81240-06041-B0iACV31,MCV30..(20G,30G,30V)..TAIW200211-200404

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14004iACV31..TH200203-200405

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-8C002iACV31..PHL;ACV30,MCV30..(MA,PHL,VN)..4FC200211-200407

NO.1

main81241-8C004iACV31..PHL;ACV30,MCV30..(MA,PHL,VN)..4FC200211-200407

NO.2

main81241-8C005iACV31..TH200203-200405

81241ALENS, ROOM LAMP, NO.2

main81241-8C003iACV31,MCV30..(20G,30G,30V)..TAIW200211-200404

81260LAMP ASSY, GLOVE BOX

main81260-06030iACV31,MCV30..TAIW200203-200404

main81260-33030iACV3#,MCV30..MA,PHL,VN200203-200407

81260BBULB(FOR GLOVE BOX)

main90981-11018iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90084-98049×2iACV3#,MCV30..MA,PHL,VN200203-200407

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-AA010iACV3#,MCV30..MA,PHL,VN200203-200407

RH

main81265-AA020iACV31,MCV30..TAIW200203-200404

LH

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-06020iACV31,MCV30..TAIW200203-200404

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-14009iACV3#,MCV30..MA,PHL,VN200203-200407

12V 3W

81340BBULB (FOR VANITY LAMP)

main90981-14007×2iACV30..IDN..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20G,24G,24Q,24V)..4FC200203-200407

12V 3W

81340HLAMP ASSY, VANITY, RH

main81350-33060-A0iACV31..TH;MCV30..VN..5FC;ACV31..20G..TAIW;ACV30,MCV30..(24G,24Q,24V,30G,30V)..(MA,PHL,TAIW,TH)200404-200611

IVORY,TRIM0#

main81350-33060-B0iACV31,MCV30..(20G,30G,30V)..TAIW200407-200605

LT.GRAY,TRIM2#

81340JLAMP ASSY, VANITY, LH

main81340-33160-A0iACV31..TH;MCV30..VN..5FC;ACV31..20G..TAIW;ACV30,MCV30..(24G,24Q,24V,30G,30V)..(MA,PHL,TAIW,TH)200404-200611

IVORY,TRIM0#

main81340-33160-B0iACV31,MCV30..(20G,30G,30V)..TAIW200407-200605

LT.GRAY,TRIM2#

81870DLAMP ASSY, KEY CYLINDER

main81870-06010iACV31..TAIW200404

main81870-13010iACV3#,MCV30..MA,PHL,VN200203-200407

81870EBULB, KEY CYLINDER LAMP

main90010-01056iACV31..MA,TAIW,TH;ACV30,MCV30..MA,PHL200404

14V 1.4W

28 parts on this diagram · 1 diagram in section
