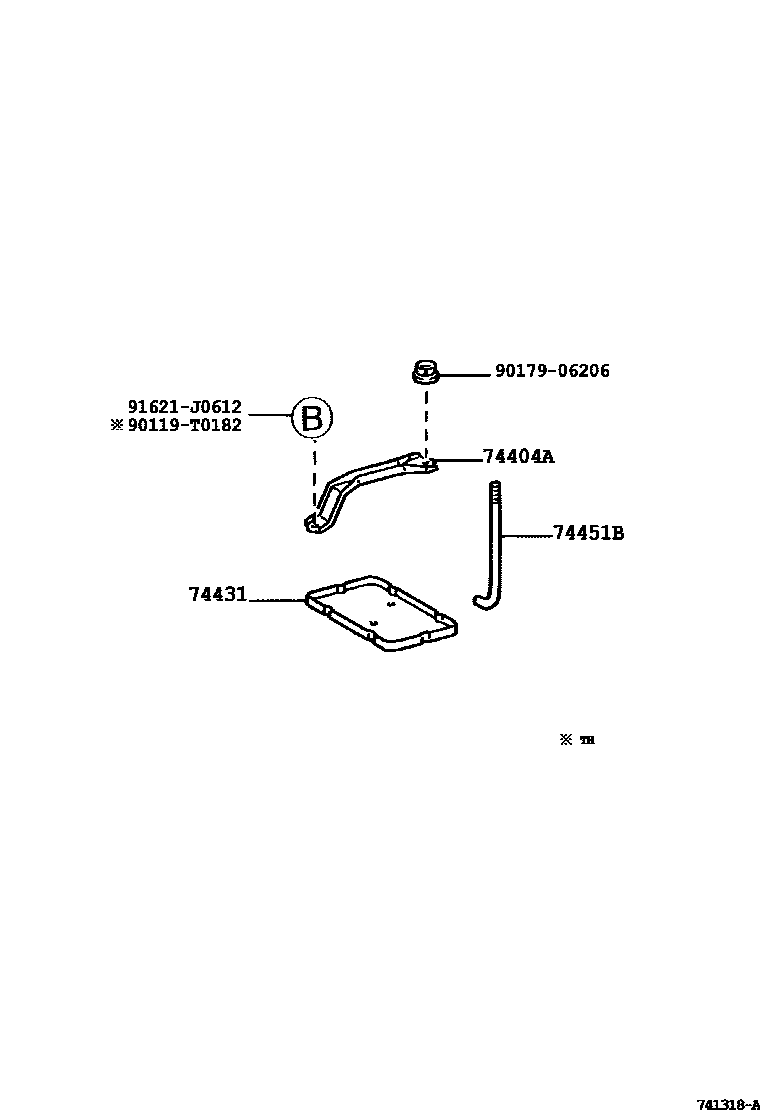

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-06060iACV31,MCV30..TAIW200203-200404

main74404-06070iACV3#..TH200203-200405

main74404-06080iACV30,MCV30..PHL200407

main74404-33090iACV30,MCV30..IDN200205-200405

74431TRAY, BATTERY

main74431-06020iACV31,MCV30..TAIW200203-200404

main74431-06030iACV3#..MA200206-200407

main74431-33011iACV3#,MCV30..IDN,TH200203-200405

74451BBOLT, BATTERY CLAMP

main74452-06020iACV31,MCV30..TAIW200203-200404

main74452-06030iACV3#..PHL200206-200407

main74452-33010iACV30,MCV30..IDN200205-200405

90119T0182

main90119-T0182

9017906206

main90179-06206

91621J0612

main91621-J0612

6 parts on this diagram · 1 diagram in section
