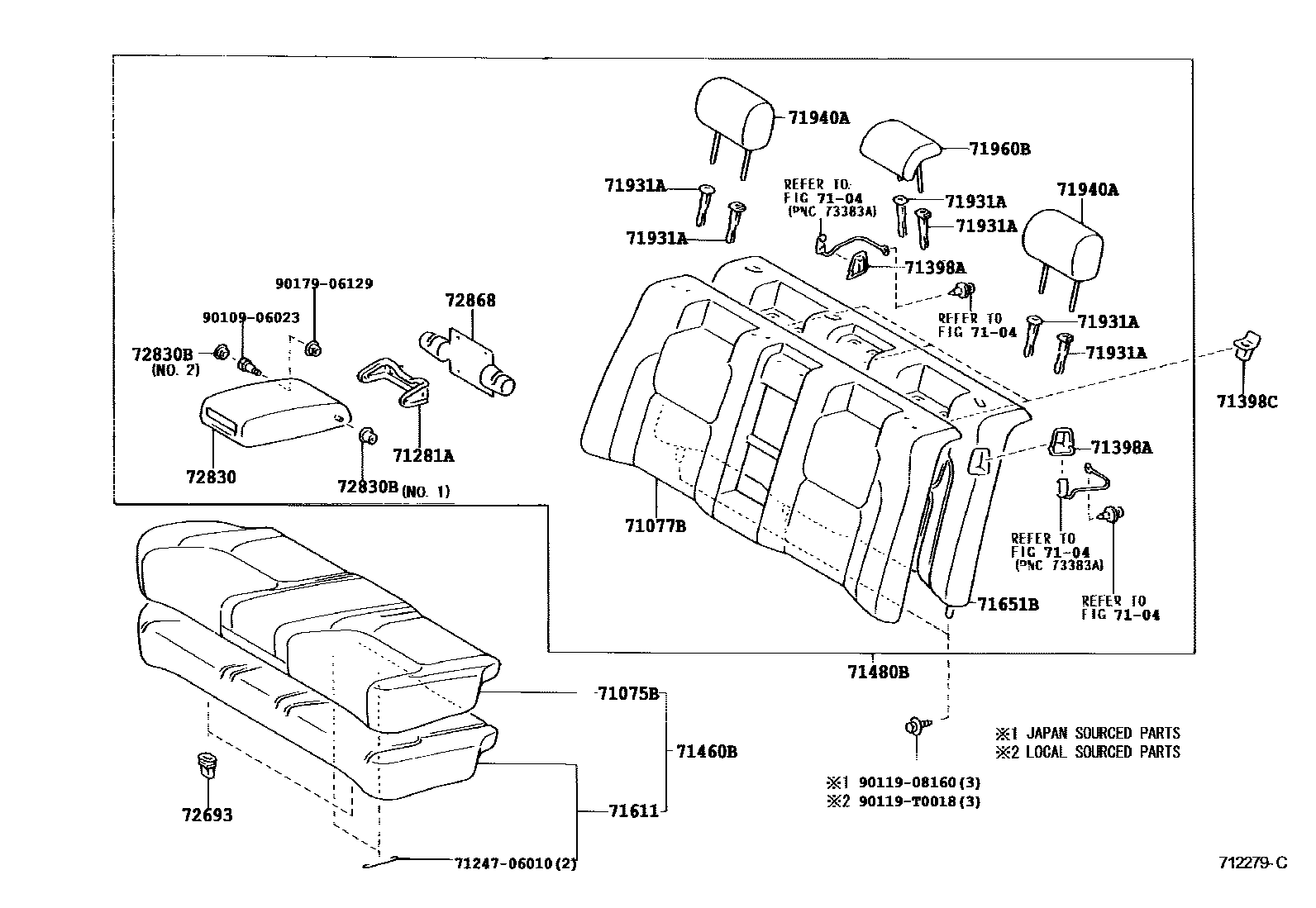

REAR SEAT & SEAT TRACK

0001 1 0003 1REAR POWER SEAT 0005 1 0006 1 0007 1ARMREST(PNC=72830)

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-06140-A0iACV31..20J;ACV3#..PHL,VN200203-200407

IVORY,TRIM4#

main71075-06140-B1iACV31..20J200203-200404

STONE,TRIM1#

main71075-06150-A0iACV30..TH;MCV30..IDN200203-200405

IVORY,TRIM4#

main71075-06170-A0iACV31..TH200203-200405

IVORY,TRIM4#

main71075-06180-A0iACV30..IDN200205-200405

IVORY,TRIM4#

main71075-06190-A0iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

IVORY,TRIM4#

main71075-06190-B1iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

STONE,TRIM1#

main71075-06200-A0iMCV30..LHD..30V..4FC200203-200407

IVORY,TRIM4#

main71075-06200-B1iMCV30..30V..TAIW200203-200404

STONE,TRIM1#

main71075-06210-A0iACV3#..MA200206-200407

IVORY,TRIM4#

main71075-06240-A0iACV30..5F;ACV30..24E200405-200611

IVORY,TRIM0#

main71075-06250-A0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

IVORY,TRIM0#

main71075-06250-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main71075-06260-A0iACV3#,MCV30..TH..4FC200405-200608

IVORY,TRIM0#

main71075-06270-A0iACV30..24V;MCV30..30V..5FC200404-200611

IVORY,TRIM0#

main71075-06270-C0iMCV30..30V..TAIW200404-200605

BLACK,TRIM2#

main71075-06350-A0iACV3#..MA200407-200608

IVORY,TRIM0#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-06150-A0iACV30..VN200203-200210

IVORY,TRIM4#

main71077-06150-B1iACV31..20J200203-200404

STONE,TRIM1#

main71077-06160-A0iMCV30..IDN200205-200405

IVORY,TRIM4#

main71077-06180-A0iACV31..TH200203-200405

IVORY,TRIM4#

main71077-06190-A0iACV30..IDN200205-200405

IVORY,TRIM4#

main71077-06200-A0iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

IVORY,TRIM4#

main71077-06200-B1iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

STONE,TRIM1#

main71077-06220-A0iACV30..TH200203-200405

IVORY,TRIM4#

main71077-06230-A0iACV3#..MA200206-200407

IVORY,TRIM4#

main71077-06240-A0iACV30..VN200210-200407

IVORY,TRIM4#

main71077-06270-A0iACV30..LHD..(24E,24G)200407-200611

IVORY,TRIM0#

main71077-06280-A0iACV30..TH..5F; ACV31..TH200405-200608

FABRIC,IVORY,TRIM0#; IVORY,TRIM0#

main71077-06290-A0iACV3#,MCV30..TH..4FC200405-200608

IVORY,TRIM0#

main71077-06300-A0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

IVORY,TRIM0#

main71077-06300-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main71077-06370-A0iACV3#..MA200407-200608

IVORY,TRIM0#

71281AHINGE, REAR SEAT CENTER ARMREST

main71281-06010iACV30,MCV30..(24E,30V)..(PHL,TH)..4FC;ACV3#,MCV30..(20E,20G,24G,24Q,24V,30G)..(MA,TAIW,TH,VN)200404-200611

main71281-30050iACV30..24V;MCV30..30V..5FC200404-200611

71398AHOLDER, REAR SEATBACK

main71398-06010×2iACV3#,MCV30..(IDN,MA,PHL,TAIW,VN)..(4FC,5F)200203-200407

71398CHOLDER, REAR SEATBACK

main71398-02040×3iACV31,MCV30..(20E,20G,20J,30G)..TAIW200308-200404

(L),NO.1

main71398-06020×3iACV3#..MA,PHL,VN200205-200407

(L),NO.2

main71398-33010×3iACV3#,MCV30..20E,20G,20J,24G,24Q,30G200203-200205

main71398-33010-A1×3iACV31..TAIW200405-200611

IVORY,TRIM0#,(J)

main71398-33010-C0×3iACV31,MCV30..(20E,20G,30G)..TAIW200405-200605

BLACK,TRIM2#,(J)

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-06090-B0iACV31..20J200203-200404

STONE,TRIM1#

main71460-06090-E0iACV3#..PHL,VN200203-200407

IVORY,TRIM4#

main71460-06100-E0iACV30..TH;MCV30..IDN200203-200405

IVORY,TRIM4#

main71460-06170-E0iACV31..TH200203-200405

IVORY,TRIM4#

main71460-06180-E0iACV30..IDN200205-200405

IVORY,TRIM4#

main71460-06190-B0iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

STONE,TRIM1#

main71460-06190-E0iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

IVORY,TRIM4#

main71460-06200-B0iMCV30..30V..TAIW200203-200404

STONE,TRIM1#

main71460-06200-E0iMCV30..LHD..30V..4FC200203-200407

IVORY,TRIM4#

main71460-06210-E0iACV3#..MA200206-200407

***,IVORY,TRIM4#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-06100-E0iACV3#..(20G,24V)..PHL200206-200407

IVORY,TRIM4#

main71480-06160-B0iACV31..20J200203-200404

STONE,TRIM1#

main71480-06160-E0iACV31..20J200203-200309

IVORY,TRIM4#

main71480-06170-E0iMCV30..IDN200205-200405

IVORY,TRIM4#

main71480-06210-E0iACV30..IDN200205-200405

IVORY,TRIM4#

main71480-06220-E0iACV31..TH200203-200405

IVORY,TRIM4#

main71480-06230-B0iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

STONE,TRIM1#

main71480-06230-E0iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

IVORY,TRIM4#

main71480-06250-E0iACV31..20E..PHL200206-200407

IVORY,TRIM4#

main71480-06260-E0iACV31..MA200206-200407

***,IVORY,TRIM4#

main71480-06270-E0iACV30..MA200206-200407

***,IVORY,TRIM4#

main71480-06280-E0iACV30..TH200203-200405

IVORY,TRIM4#

main71480-06290-E0iACV30..VN200210-200407

IVORY,TRIM4#

71611PAD, REAR SEAT CUSHION

main71503-06020iACV31..RHD;ACV30..24E;ACV30..MA,VN;ACV30..TH..5F200405-200611

main71503-06040iACV30..TH;MCV30..IDN200203-200405

LEATHER SEAT

main71503-06050iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

LEATHER SEAT

main71503-06060iACV30..24V;MCV30..30V..5FC200404-200611

LEATHER SEAT & W(POWER SEAT)

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-06010iACV30..24E;ACV30..MA,TH,VN;ACV31,MCV30..RHD200405-200611

main71507-06020iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

71931ASUPPORT, REAR SEAT HEADREST

main71930-20130-A0×3iACV30..24V;MCV30..5FC;ACV31..TAIW200404-200611

W(LOCK),IVORY,TRIM0#

main71930-20130-B2×3iACV31,MCV30..TAIW200203-200404

W(LOCK),STONE,TRIM1#

main71930-20130-C0×3iACV31,MCV30..TAIW200404-200605

W(LOCK),BLACK,TRIM2#

main71931-12040-A5×3iACV31,MCV30..(TAIW,VN)..4FC200203-200407

W/O(LOCK),IVORY,TRIM4#

main71931-12040-C0×3iACV31,MCV30..TAIW200404-200605

W/O(LOCK),BLACK,TRIM2#

main71931-12040-S5×3iACV31,MCV30..TAIW200203-200404

W/O(LOCK),STONE,TRIM1#

main71956-47010-A0×3iACV30..VN200207-200407

W/O(LOCK),IVORY,TRIM4#

main71970-47010-A0×3iMCV30..IDN;ACV30..IDN..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

W(LOCK),IVORY,TRIM4#

71940AHEADREST ASSY, REAR SEAT

main71940-06060-A0×2iACV30..VN200210-200407

IVORY,TRIM4#

main71940-06060-B1×2iACV31..20J200203-200404

STONE,TRIM1#

main71940-06080-A0×2iACV3#,MCV30..TH..4FC200405-200608

W(LEATHER SEAT),IVORY,TRIM0#

main71940-06080-B1×2iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

STONE,TRIM1#

main71940-06110-A0×2iACV31..TH200203-200405

IVORY,TRIM4#

main71940-06130-A0×2iACV30..IDN200205-200405

IVORY,TRIM4#

main71940-06150-A0×2iMCV30..LHD..30V..4FC200203-200407

IVORY,TRIM4#

main71940-06150-B1×2iMCV30..30V..TAIW200203-200404

STONE,TRIM1#

main71940-06160-A0×2iACV3#..MA200206-200407

IVORY,TRIM4#

main71940-06200-A0×2iACV31..TH;ACV30..5F;ACV30..24E200405-200611

W(FABRIC SEAT),IVORY,TRIM0#

main71940-06220-A0×2iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

IVORY,TRIM0#

main71940-06220-C0×2iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main71940-06230-A0×2iACV30..24V;MCV30..30V..5FC200404-200611

IVORY,TRIM0#

main71940-06230-C0×2iMCV30..30V..TAIW200404-200605

BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71940-06070-A0iACV3#..PHL;ACV31..20J200203-200407

IVORY,TRIM4#

main71940-06070-B1iACV31..20J200203-200404

STONE,TRIM1#

main71940-06090-A0iACV3#,MCV30..TH..4FC200405-200608

W(LEATHER SEAT),IVORY,TRIM0#

main71940-06090-B1iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

STONE,TRIM1#

main71940-06100-A0iMCV30..LHD..30V..4FC200203-200407

IVORY,TRIM4#

main71940-06100-B1iMCV30..30V..TAIW200203-200404

STONE,TRIM1#

main71940-06120-A0iACV31..TH200203-200405

IVORY,TRIM4#

main71940-06140-A0iACV30..IDN200205-200405

IVORY,TRIM4#

main71940-06170-A0iACV3#..MA200206-200407

IVORY,TRIM4#

main71940-06210-A0iACV31..TH;ACV30..5F;ACV30..24E200405-200611

W(FABRIC SEAT),IVORY,TRIM0#

main71940-06240-A0iACV30..24V;MCV30..30V..5FC200404-200611

IVORY,TRIM0#

main71940-06240-C0iMCV30..30V..TAIW200404-200605

BLACK,TRIM2#

main71940-06300-A0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

IVORY,TRIM0#

main71940-06300-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-06060-A0iACV3#..(20G,24V)..PHL200206-200407

IVORY,TRIM4#

main72830-06070-A0iMCV30..IDN;ACV31..(20E,20G)..TAIW;ACV30,MCV30..(24G,24Q,30G)..(TAIW,TH)..4FC200203-200405

IVORY,TRIM4#

main72830-06070-B1iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

STONE,TRIM1#

main72830-06080-A0iMCV30..LHD..30V..4FC200203-200407

IVORY,TRIM4#

main72830-06080-B1iMCV30..30V..TAIW200203-200404

STONE,TRIM1#

main72830-06090-A0iACV31..TH200203-200405

IVORY,TRIM4#

main72830-06100-A0iACV30..IDN200205-200405

IVORY,TRIM4#

main72830-06110-A0iACV31..MA200206-200407

IVORY,TRIM4#

main72830-06120-A0iACV30..MA200206-200407

IVORY,TRIM4#

main72830-06130-A0iACV30..VN200210-200407

IVORY,TRIM4#

main72830-06130-B1iACV31..20J200203-200404

STONE,TRIM1#

main72830-06140-A0iACV31..TH;ACV30..LHD..(24E,24G)200405-200611

W(FABRIC SEAT),IVORY,TRIM0#

main72830-06150-A0iACV30..TH..5F200405-200608

IVORY,TRIM0#

main72830-06160-A0iACV31..TH200405-200608

W(LEATHER SEAT),IVORY,TRIM0#

main72830-06160-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main72830-06170-A0iACV30..24V;MCV30..30V..5FC200404-200611

IVORY,TRIM0#

main72830-06170-C0iMCV30..30V..TAIW200404-200605

BLACK,TRIM2#

main72830-06200-A0iACV3#..MA200407-200608

IVORY,TRIM0#

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main90386-06011iACV30,MCV30..(24E,30V)..(PHL,TH)..4FC;ACV3#,MCV30..(20E,20G,24G,24Q,24V,30G)..(MA,TAIW,TH,VN)200404-200611

NO.1

main90386-08077iACV30..VN200207-200407

NO.2

72868COVER, CENTER ARMREST HINGE, RH

main72868-06010-A0iACV30..VN200210-200407

IVORY,TRIM4#

main72868-06010-B0iACV31..20J200206-200404

STONE,TRIM1#

main72868-06030-A0iACV30..IDN200205-200405

IVORY,TRIM4#

main72868-06040-A0iMCV30..IDN;ACV31..(20E,20G)..TAIW;ACV30,MCV30..(24G,24Q,30G)..(TAIW,TH)..4FC200203-200405

IVORY,TRIM4#

main72868-06040-B0iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

STONE,TRIM1#

main72868-06050-A0iACV3#..MA200206-200407

IVORY,TRIM4#

main72868-06060iMCV30..IDN;ACV31,MCV30..(20E,20G,30G)..TAIW..4FC200203-200405

main72868-06060-A0iMCV30..30G;ACV3#,MCV30..(20E,20G,24G,30V)..(TAIW,TH)..4FC200404-200608

LEATHER SEAT,IVORY,TRIM0#

main72868-06060-A1iACV31..TH;ACV30..TH..5F200405-200608

IVORY,TRIM0#

main72868-06060-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

BLACK,TRIM2#

main72868-06070-A0iACV30..LHD..(24E,24G)200407-200611

IVORY,TRIM0#

main72868-06070-A1iACV3#..MA200407-200608

IVORY,TRIM0#

main72868-30120-A0iMCV30..LHD..30V..4FC200203-200407

IVORY,TRIM4#

main72868-30120-B2iMCV30..30V..TAIW200203-200404

STONE,TRIM1#

7124706010COVER, REAR NO.1 SEATBACK HINGE, LH

main71247-06010

9010906023

main90109-06023

9011908160

main90119-08160

90119T0018

main90119-T0018

9017906129

main90179-06129

22 parts on this diagram · 5 diagrams in section
