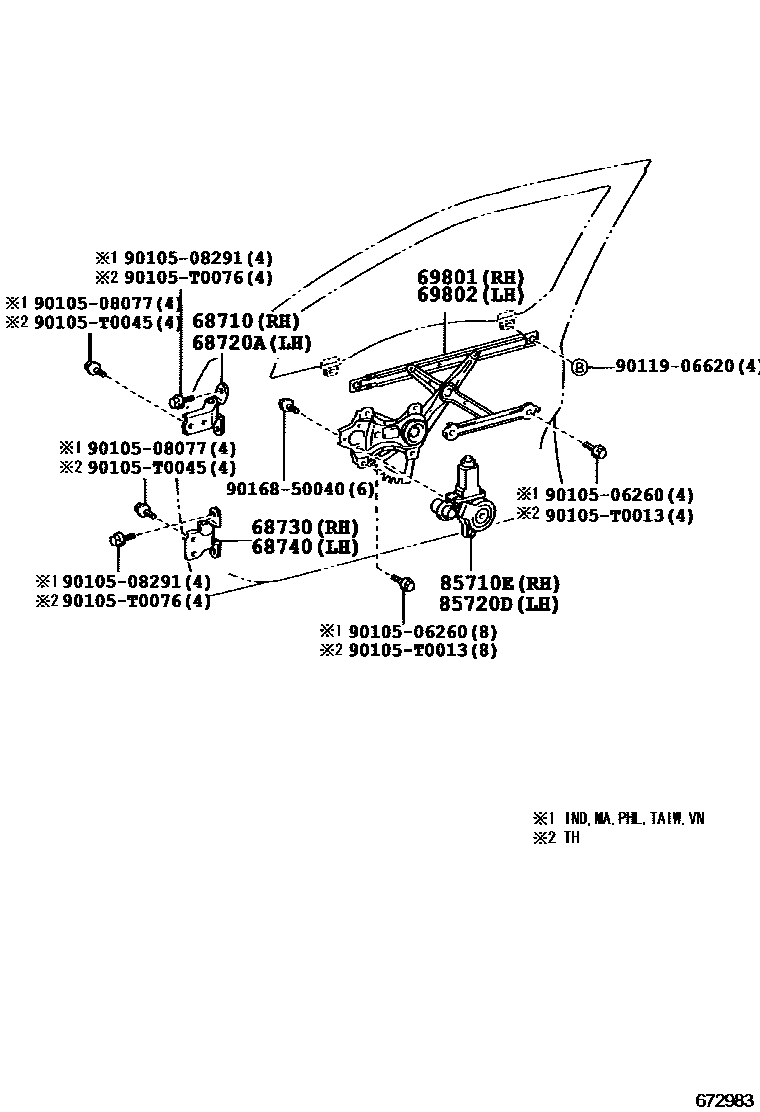

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-06020iACV30..LHD;MCV30..5FC;ACV31..TAIW200404-200611

main68710-33030iACV3#,MCV30..RHD200405-200608

68720AHINGE ASSY, FRONT DOOR, LH

main68720-06020iACV3#,MCV30..LHD..(4FC,5F)200203-200407

main68720-33030iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200203-200407

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06030iACV31,MCV30..TAIW200404

main69801-06050iACV3#..TH200305-200405

(L)

main69801-33050iACV3#..TH..4FC200305-200407

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06030iACV31,MCV30..TAIW200404

main69802-06050iACV3#,MCV30..TH200405

(L)

main69802-33060iACV3#,MCV30..IDN,MA,PHL,VN200203-200407

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02060iACV31..TAIW200203-200404

main85710-33120iACV3#..IDN,MA;MCV30..(IDN,TAIW)..4FC200203-200407

main85710-33130iACV3#,MCV30..PHL,VN200206-200407

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D100iACV3#..(20E,24G)..TH200405

(L)

main85720-33120iACV3#..RHD..(20E,24G)200405

(J)

main85720-33130iACV30..24Q200305-200407

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

9011906620

main90119-06620

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
