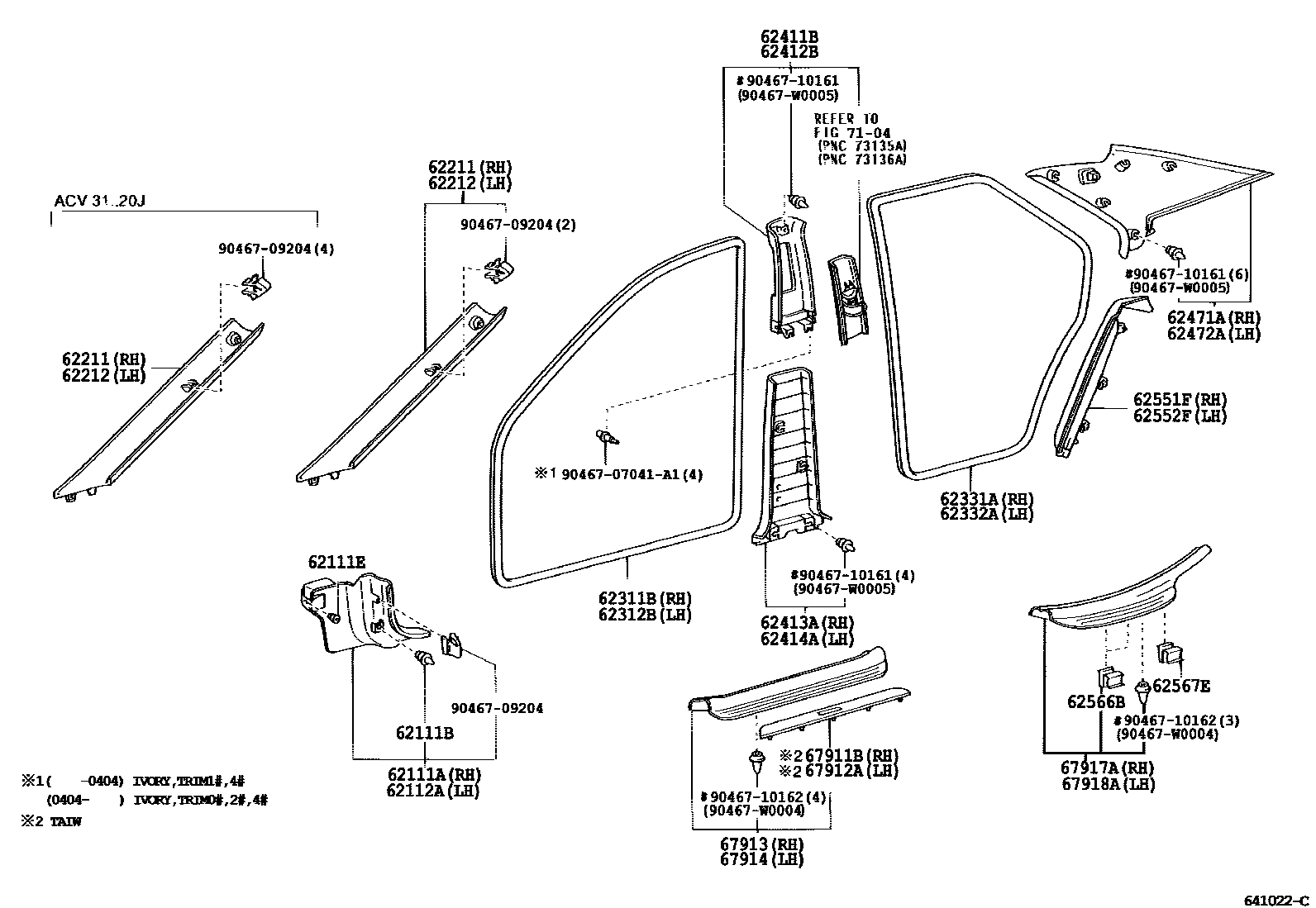

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-06030-A0iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main62101-06030-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main62101-06030-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main62101-06040-A0iACV3#..TH200203-200405

IVORY,TRIM4#

main62101-33080-A0iACV3#,MCV30..PHL,VN200206-200407

IVORY,TRIM4#

main62101-33090-A0iACV3#..MA200407-200608

IVORY,TRIM0#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161×2iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

62111ERETAINER, COWL SIDE TRIM

main90467-06147×2iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-06030-A0iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main62102-06030-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main62102-06030-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main62102-06040-A0iACV3#..TH200203-200405

IVORY,TRIM4#

main62102-33150-A0iACV3#,MCV30..PHL,VN200206-200407

IVORY,TRIM4#

main62102-33160-A0iACV3#,MCV30..IDN,MA200205-200407

IVORY,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-06040-A2iMCV30..5FC;ACV31..MA,TAIW;ACV30..MA,PHL,VN200404-200611

IVORY,TRIM0#

main62210-06040-B2iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

LT.GRAY,TRIM1#

main62210-06060-A2iACV3#,MCV30..TH200405-200608

IVORY,TRIM0#

main62211-06030-A0iACV31..20J200203-200309

IVORY,TRIM4#

main62211-06030-B0iACV31..20J200203-200404

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-06030-A0iACV31..20J200203-200309

IVORY,TRIM4#

main62212-06030-B0iACV31..20J200203-200404

LT.GRAY,TRIM1#

main62220-06040-A2iMCV30..5FC;ACV31..MA,TAIW;ACV30..MA,PHL,VN200404-200611

IVORY,TRIM0#

main62220-06040-B2iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

LT.GRAY,TRIM1#

main62220-06060-A2iACV3#,MCV30..TH200405-200608

IVORY,TRIM0#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-06050-A0iACV31..20J200203-200309

IVORY,TRIM4#

main62311-06050-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main62311-06050-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main62311-06060-A0iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200405-200611

IVORY,TRIM0#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-06050-A0iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main62312-06050-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main62312-06050-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main62312-06060-A0iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

IVORY,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-06050-A0iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main62331-06050-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main62331-06050-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main62331-06060-A0iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200405-200611

IVORY,TRIM0#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-06050-A0iACV31..20J200203-200309

IVORY,TRIM4#

main62332-06050-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main62332-06050-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main62332-06060-A0iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

IVORY,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-06030-A0iACV31..20J200203-200309

IVORY,TRIM4#

main62410-06030-B0iACV31..20J200203-200404

LT.GRAY,TRIM1#

main62410-06050-A1iACV3#,MCV30..(20E,20G,24G,24V,30G,30V)..(IDN,MA,PHL,TAIW,VN)..(4FC,5F)200203-200407

IVORY,TRIM4#

main62410-06050-B1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

LT.GRAY,TRIM1#

main62410-06070-A1iACV3#,MCV30..TH200405-200608

IVORY,TRIM0#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-06030-A0iACV31..20J200203-200309

IVORY,TRIM45

main62420-06030-B0iACV31..20J200203-200309

LT.GRAY,TRIM1#,45

main62420-06050-A1iACV3#,MCV30..(20E,20G,24G,24V,30G,30V)..(IDN,MA,PHL,TAIW,VN)..(4FC,5F)200203-200407

IVORY,TRIM4#

main62420-06050-B1iACV31,MCV30..TAIW200404-200605

LT.GRAY,TRIM2#

main62420-06070-A1iACV3#,MCV30..TH200405-200608

IVORY,TRIM0#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-06030-A0iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

IVORY,TRIM0#

main62413-06030-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main62413-06030-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-06010-A0iACV31..20J200203-200309

IVORY,TRIM4#

main62414-06010-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main62414-06010-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-06070-A0iACV31..20J200203-200309

IVORY,TRIM4#

main62470-06070-B0iACV31..20J200203-200404

LT.GRAY,TRIM1#

main62470-06080-A1iMCV30..5FC;ACV31..MA,TAIW;ACV30..MA,PHL,VN200404-200611

IVORY,TRIM0#

main62470-06080-B1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

LT.GRAY,TRIM1#

main62470-06100-A1iACV3#,MCV30..TH200405-200608

IVORY,TRIM0#

62472AGARNISH, ROOF SIDE, INNER LH

main62480-06070-A0iACV31..20J200203-200309

IVORY,TRIM4#

main62480-06070-B0iACV31..20J200203-200404

LT.GRAY,TRIM1#

main62480-06080-A1iMCV30..5FC;ACV31..MA,TAIW;ACV30..MA,PHL,VN200404-200611

IVORY,TRIM0#

main62480-06080-B1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

LT.GRAY,TRIM1#

main62480-06100-A1iACV3#,MCV30..TH200405-200608

IVORY,TRIM0#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-06040-A0iMCV30..LHD..30V..4FC200203-200407

IVORY,TRIM4#

main62551-06040-B0iMCV30..30V..TAIW200203-200404

STONE,TRIM1#

main62551-06040-C0iMCV30..30V..TAIW200404-200605

BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-06040-A0iMCV30..LHD..30V..4FC200203-200407

IVORY,TRIM4#

main62552-06040-B0iMCV30..30V..TAIW200203-200404

STONE,TRIM1#

main62552-06040-C0iMCV30..30V..TAIW200404-200605

BLACK,TRIM2#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-06010×4iACV31,MCV30..TAIW200203-200404

main62566-32010×4iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200405

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-06020×2iACV31,MCV30..TAIW200404

main62567-33040×2iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200405

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67921-06020iACV31,MCV30..TAIW200203-200404

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67922-06010iACV31,MCV30..TAIW200203-200404

67913PLATE, FRONT DOOR SCUFF, RH

main67913-06050-A0iACV31..20J200203-200309

IVORY,TRIM4#

main67913-06050-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main67913-06050-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main67913-33030-A0iACV3#..(20E,24G)..(MA,VN)200407-200611

IVORY,TRIM0#

main67913-33040-A0iACV31..TH;MCV30..IDN,VN;ACV30..(MA,TH)..4FC200203-200407

IVORY,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-06050-A0iACV31..20J200203-200309

IVORY,TRIM4#

main67914-06050-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main67914-06050-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main67914-33030-A0iACV31..MA,PHL;ACV30..IDN,PHL,VN200205-200407

IVORY,TRIM4#

main67914-33040-A0iACV31..TH;MCV30..IDN,VN;ACV30..(MA,TH)..4FC200203-200407

IVORY,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-06030-A0iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200404

IVORY,TRIM4#

main67917-06030-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main67917-06030-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main67917-33020-A0iACV3#..(20E,24G)..(MA,VN)200407-200611

IVORY,TRIM0#

main67917-33030-A0iACV31..TH;MCV30..VN..5FC;ACV30,MCV30..MA,PHL,TH200405-200611

IVORY,TRIM0#

67918APLATE, REAR DOOR SCUFF, LH

main67918-06030-A0iACV31,MCV30..TAIW200404-200605

IVORY,TRIM0#

main67918-06030-B0iACV31,MCV30..TAIW200203-200404

STONE,TRIM1#

main67918-06030-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main67918-33020-A0iACV3#..(20E,24G)..(MA,VN)200407-200611

IVORY,TRIM0#

main67918-33030-A0iACV31..TH;MCV30..VN..5FC;ACV30,MCV30..MA,PHL,TH200405-200611

IVORY,TRIM0#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

9046707041A1

main90467-07041A1

9046709204

main90467-09204

9046710161

main90467-10161

9046710162

main90467-10162

90467W0004

main90467-W0004

90467W0005

main90467-W0005

33 parts on this diagram · 1 diagram in section
