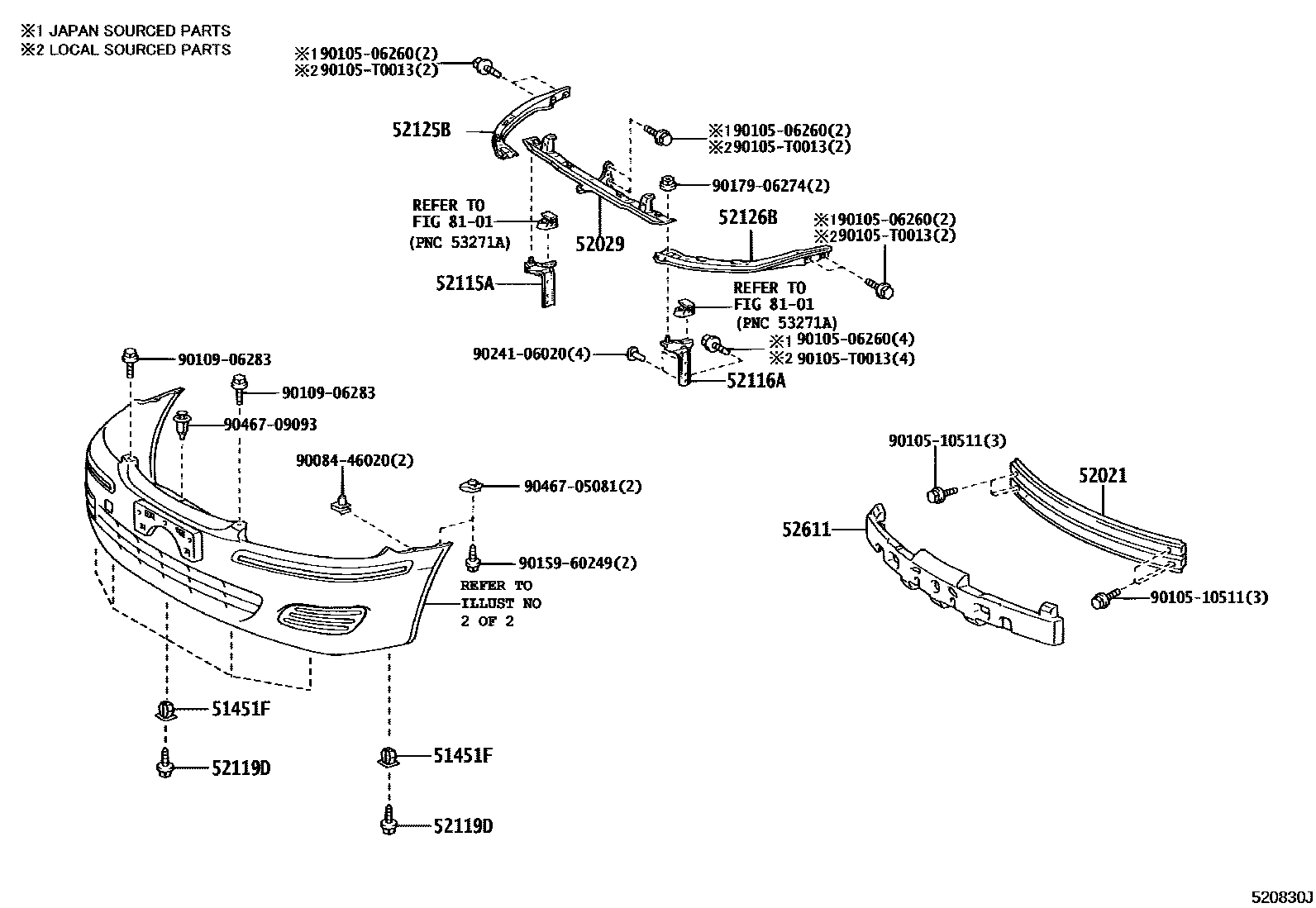

FRONT BUMPER & BUMPER STAY

0001 1 0004 1 0007 1 0010 1

51451FGROMMET, NO.1

main90189-06193×7iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-06020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-06020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

main52029-06030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-06020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

main52115-06030iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-06020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

main52116-06030iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

52119DSCREW, NO.1

main90159-60431×7iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH

main52125-06030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

main52125-06040iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH

main52126-06030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

main52126-06040iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06030iACV3#,MCV30..MA,PHL,VN200405-200407

main52611-06040iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

8101HEADLAMP

→ Go to FIG 81-01

9008446020

main90084-46020

9010506260

main90105-06260

9010510511

main90105-10511

90105T0013

main90105-T0013

9010906283

main90109-06283

9015960249

main90159-60249

9017906274

main90179-06274

9024106020

main90241-06020

9046705081

main90467-05081

9046709093

main90467-09093

20 parts on this diagram · 4 diagrams in section
