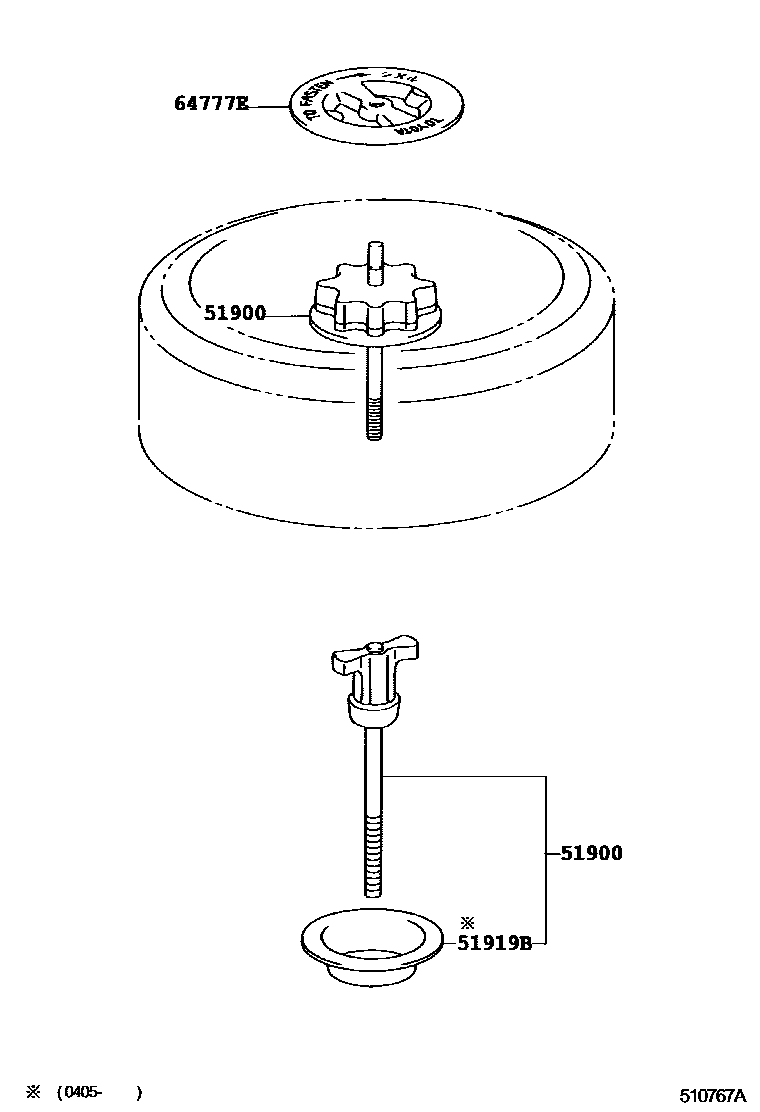

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-06010iACV3#..TH..4FC200405

main51900-06020iACV31,MCV30..TAIW200203-200404

main51900-33030iACV3#,MCV30..(PHL,VN)..4FC200205-200407

main51900-33060iACV30..24G..4FC; ACV30..TH..5F;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..MA,PHL,VN200405

INDONESIA SPEC

main51931-33080iACV3#..MA,VN200206-200407

51919BSPACER, SPARE WHEEL CARRIER

main51919-22010iACV31..MA;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..24E,24G,24V200405

64777ECLAMP, SPARE WHEEL COVER

main64777-20030iACV31,MCV30..TAIW200404

main64777-32030iACV3#,MCV30..IDN,TH200203-200405

3 parts on this diagram · 1 diagram in section
