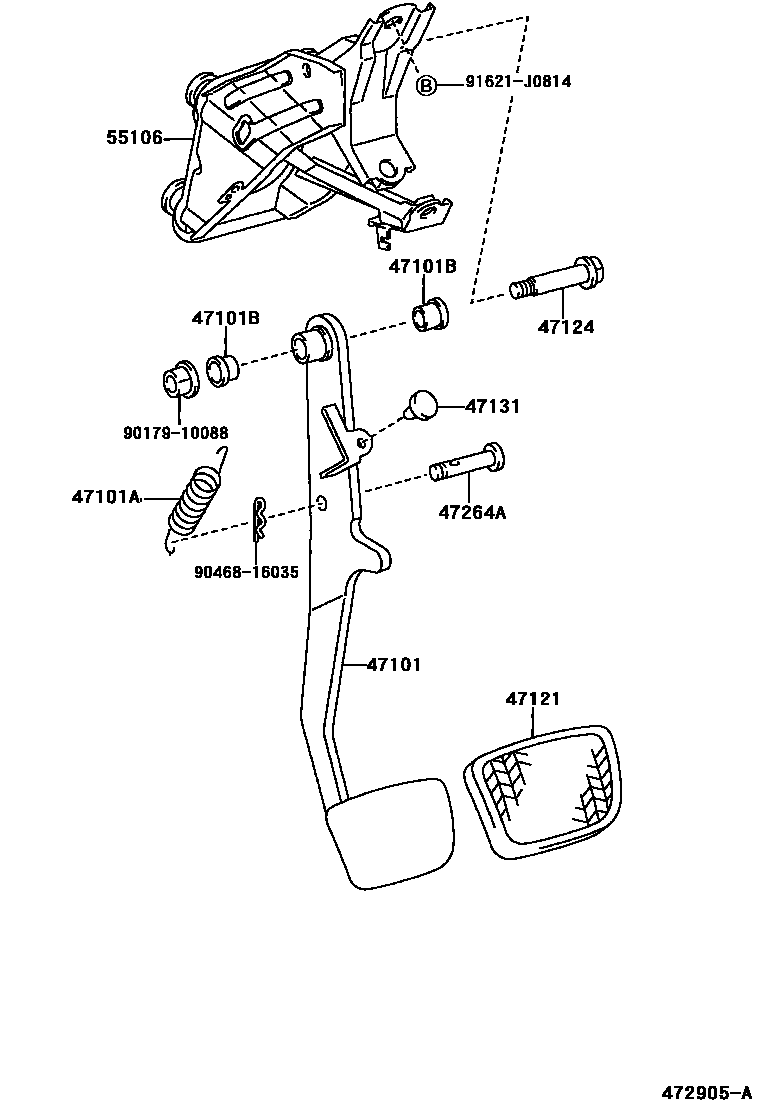

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-33060iACV30..VN200407

main47101-33070iACV30..PHL;MCV30..5FC;ACV31..TAIW200404

main47101-33080iACV30..IDN..5F200205-200405

main47101-33090iACV3#,MCV30..RHD..4FC200405

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14051iACV31,MCV30..TAIW200203-200404

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

47121PAD, BRAKE PEDAL

main31321-52010iACV30..(IDN,VN)..5F200205-200407

main47121-50020iACV31,MCV30..TAIW200203-200404

47124SHAFT, BRAKE PEDAL

main90109-10167iACV31..MA,TAIW,TH;ACV30,MCV30..VN..(5F,5FC);ACV30,MCV30..ATM..(MA,PHL,TAIW,TH)200404

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

47264APIN(FOR PUSH ROD)

main47148-33011iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-33080iACV31,MCV30..TAIW200203-200404

main55106-33090iACV3#,MCV30..IDN,TH200203-200405

9017910088

main90179-10088

9046816035

main90468-16035

91621J0814

main91621-J0814

11 parts on this diagram · 1 diagram in section
