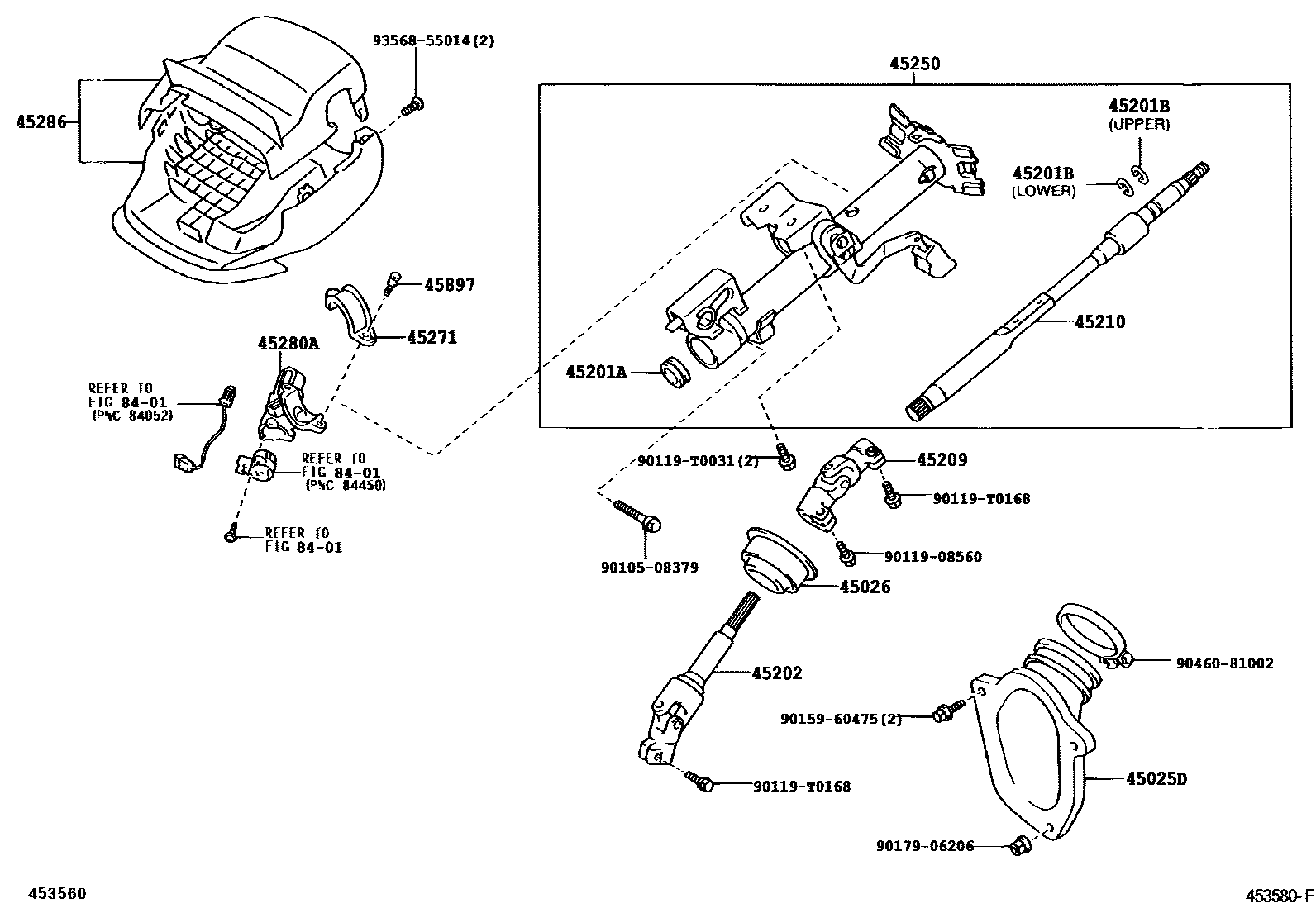

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-33060iACV3#,MCV30..PHL,VN200203-200407

main45025-33070iACV3#,MCV30..TH200405

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-33050iACV31,MCV30..TAIW200203-200404

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-02020iACV3#..TH; ACV30,MCV30..IDN200210-200405

(L)

main45274-42010iACV3#,MCV30..TH200405

(J)

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90080-52142iACV31,MCV30..TAIW200404

T=1.20,UPPER

main90080-52143iACV31,MCV30..TAIW200404

T=1.20,LOWER

main90520-17042iACV3#..TH; ACV30,MCV30..IDN200203-200405

T=1.20,LOWER

main90520-17269iACV3#,MCV30..MA,PHL,VN200203-200407

T=1.20,UPPER

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-33060iACV31,MCV30..TAIW200203-200404

main45202-33080iACV3#,MCV30..PHL,VN200206-200407

main45202-33090iACV3#..TH; ACV30,MCV30..IDN200203-200405

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-33010iACV31,MCV30..TAIW200404

45210SHAFT ASSY, STEERING MAIN

main45210-06030iACV3#..TH; ACV30,MCV30..IDN200210-200405

(L)

main45210-33070iACV3#,MCV30..TH200405

(J)

45250COLUMN ASSY, STEERING

main45250-06350iACV31,MCV30..TAIW200404

main45250-06390iACV3#..TH; ACV30,MCV30..IDN200203-200405

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iACV31,MCV30..TAIW200203-200404

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-06030iACV31,MCV30..TAIW200203-200404

main45280-06040iACV30..(IDN,VN)..5F200205-200406

main45280-06050iACV31..RHD;MCV30..VN..5FC;ACV30,MCV30..ATM..(MA,PHL,TH)200405-200611

45286COVER, STEERING COLUMN

main45286-06906-B1iACV31,MCV30..TAIW200203-200404

DK.CHARCOAL,TRIM1#

main45286-06906-E1iACV31,MCV30..TAIW..4FC200203-200309

SANDAL WOOD,TRIM4#

main45286-06907iACV31,MCV30..(20G,30G,30V)..TAIW200404

main45286-06908iACV31..20E..TAIW200404

main45286-33919-E1iACV3#..TH; ACV30,MCV30..IDN200203-200405

SANDAL WOOD,TRIM4#

main45286-39901-E0iACV3#,MCV30..TH200405

SANDAL WOOD,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020×2iACV31,MCV30..TAIW200203-200404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508379

main90105-08379

9011908560

main90119-08560

90119T0031

main90119-T0031

90119T0168

main90119-T0168

9015960475

main90159-60475

9017906206

main90179-06206

9046081002

main90460-81002

9356855014

main93568-55014

21 parts on this diagram · 3 diagrams in section
