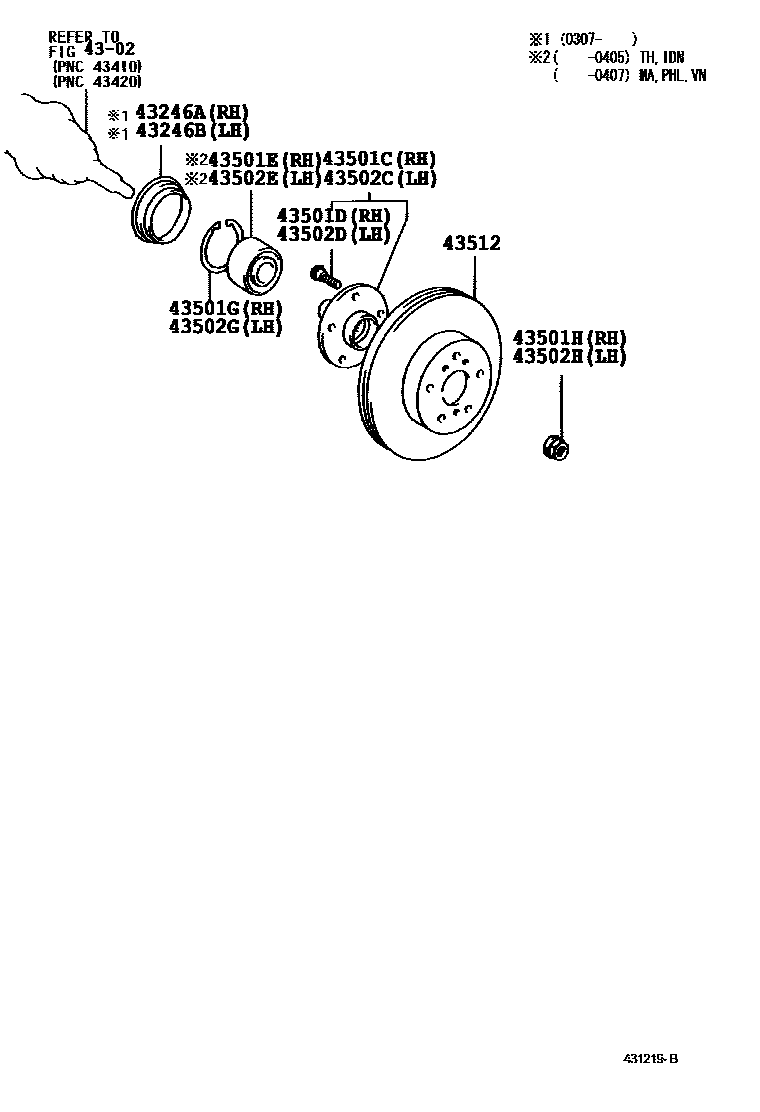

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-28020iACV3#,MCV30..PHL,VN200307-200405

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-28020iACV3#,MCV30..PHL,VN200307-200405

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-06050iACV31..TAIW200203-200404

main43502-06060iMCV30..TAIW200203-200404

main43502-06070iACV31..TAIW200404

main43502-06080iMCV30..TAIW200404

main43502-28090iACV30;ACV31..RHD200405

main43502-28100iMCV30..PHL,TH;MCV30..VN..5FC200405

main43502-33020iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

main43502-33030iMCV30..IDN,VN200207-200407

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iACV3#..4FC;MCV30..LHD..4FC;ACV30..(IDN,VN)..5F200203-200407

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36177iACV3#..4FC;MCV30..LHD..4FC;ACV30..(IDN,VN)..5F200203-200407

(L)

main90369-43008iACV3#..4FC;MCV30..LHD..4FC;ACV30..(IDN,VN)..5F200203-200407

(J)

main90369-45005iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

(J)

main90369-T0004iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

(L)

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

main90521-88001iACV3#..4FC;MCV30..LHD..4FC;ACV30..(IDN,VN)..5F200203-200407

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-06050iACV31..TAIW200203-200404

main43502-06060iMCV30..TAIW200203-200404

main43502-06070iACV31..TAIW200404

main43502-06080iMCV30..TAIW200404

main43502-28090iACV30;ACV31..RHD200405

main43502-28100iMCV30..PHL,TH;MCV30..VN..5FC200405

main43502-33020iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

main43502-33030iMCV30..IDN,VN200207-200407

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iACV3#..4FC;MCV30..LHD..4FC;ACV30..(IDN,VN)..5F200203-200407

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36177iACV3#..4FC;MCV30..LHD..4FC;ACV30..(IDN,VN)..5F200203-200407

(L)

main90369-43008iACV3#..4FC;MCV30..LHD..4FC;ACV30..(IDN,VN)..5F200203-200407

(J)

main90369-45005iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

(J)

main90369-T0004iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

(L)

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

main90521-88001iACV3#..4FC;MCV30..LHD..4FC;ACV30..(IDN,VN)..5F200203-200407

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

43512DISC, FRONT

main43512-06060×2iACV3#..TH200203-200405

main43512-06070×2iACV31,MCV30..TAIW200203-200404

main43512-33090×2iACV3#,MCV30..IDN,MA,PHL,VN200205-200407

14 parts on this diagram · 1 diagram in section
