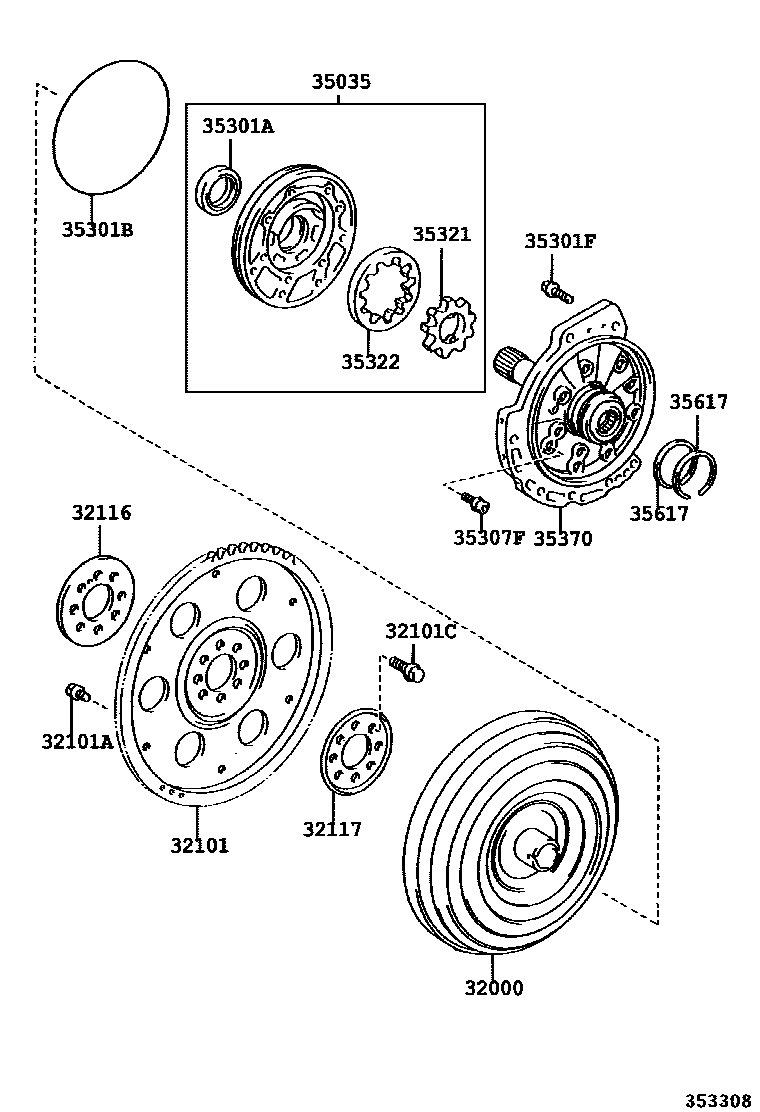

32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06010iMCV30..VN..5FC;MCV30..PHL,TAIW,TH200404 (L)
main32101-06030iACV3#..TH; ACV30..IDN..4FC200203-200405 (L)
main32101-48010iMCV30..VN..5FC;MCV30..PHL,TAIW,TH200404 (J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90119-09025×5iACV3#..TH; ACV30,MCV30..IDN..4FC200203-200405 *9-1.25PX12.4-8.4
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-12184×8iACV3#..TH; ACV30..IDN..4FC200203-200405 *12-1.25PX22-16
32116SPACER, DRIVE PLATE, FRONT
main32116-20050iACV3#..TH; ACV30..IDN..4FC200203-200405 32117SPACER, DRIVE PLATE, REAR
main32117-20060iACV3#..TH; ACV30..IDN..4FC200203-200405 35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-21020iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407 main35035-28010iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404-200608 AISIN AW
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99099iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407 35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050×7iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 *8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
main90148-60027×11iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407 35321GEAR, FRONT OIL PUMP DRIVE
main35321-21060iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407 T=10.690-10.699
main35321-21070iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.700-10.709
main35321-21080iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.710-10.720
main35321-21090iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407 T=10.721-10.730
main35321-21100iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407 T=10.731-10.740
main35321-28060iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.715,MARK 1
main35321-28070iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.715,MARK 2
main35321-28080iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.715,MARK 3
main35321-28090iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.715,MARK 4
main35321-28100iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.715,MARK 5
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-21060iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407 T=10.690-10.699
main35322-21070iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407 T=10.700-10.709
main35322-21080iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407 T=10.710-10.720
main35322-21090iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.721-10.730
main35322-21100iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407 T=10.731-10.740
main35322-28060iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.715,MARK 1
main35322-28070iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.715,MARK 2
main35322-28080iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.715,MARK 3
main35322-28090iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.715,MARK 4
main35322-28100iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404 T=10.715,MARK 5
35370SHAFT ASSY, STATOR
main35370-21020iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200404-200608 TOYOTA
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010×2iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407
