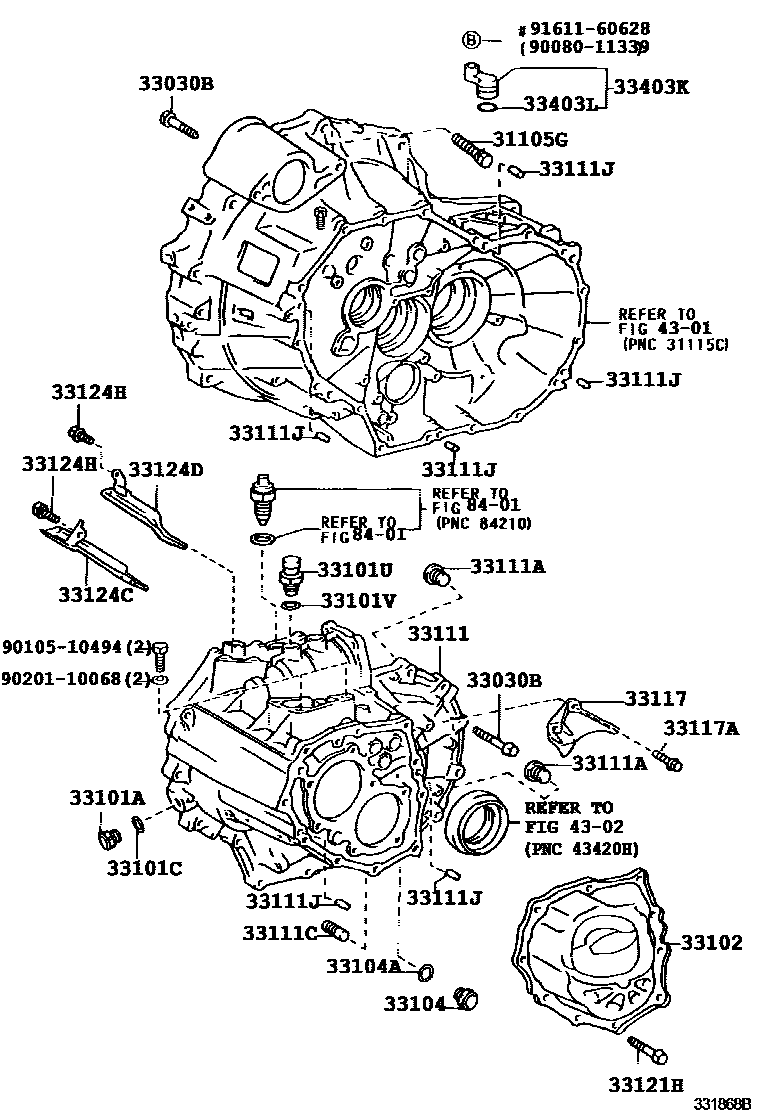

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-12147iACV30..5F200405

*12-1.25PX74.5-25

main90119-12252×2iACV30..IDN..5F200205-200405

*12-1.25PX60-30

main91512-61060×2iACV30..VN200205-200407

*10-1.25PX60-30

main91512-61065iACV30..VN200205-200407

*10-1.25PX65-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08126×17iACV30..(IDN,VN)..5F200205-200407

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iACV30..(IDN,VN)..5F200205-200407

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iACV30..(IDN,VN)..5F200205-200407

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03148iACV30..(IDN,VN)..5F200205-200407

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008iACV30..(IDN,VN)..5F200205-200407

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-33010iACV30..5F200205-200304

sub33102-33011

main33102-33012iACV30..5F200405

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iACV30..(IDN,VN)..5F200205-200407

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iACV30..(IDN,VN)..5F200205-200407

33111CASE, MANUAL TRANSMISSION

main33101-20090iACV30..(IDN,VN)..5F200301-200407

main33101-28041iACV30..5F200205-200301

sub33250-12180

33111APLUG, MANUAL TRANSMISSION CASE

main90341-12004×2iACV30..(IDN,VN)..5F200205-200407

33111CPLUG(FOR TRANSMISSION CASE)

main90340-10005iACV30..(IDN,VN)..5F200205-200407

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×6iACV30..(IDN,VN)..5F200205-200407

L=23,OD=8

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33107-12030iACV30..IDN..5F200205-200405

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main91641-H0820×2iACV30..IDN..5F200205-200405

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273×10iACV30..5F200405

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-28050iACV30..(IDN,VN)..5F200205-200407

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-28060iACV30..(IDN,VN)..5F200205-200407

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830×2iACV30..(IDN,VN)..5F200205-200407

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iACV30..IDN..5F200205-200405

33403LRING, O

main96711-24018iACV30..IDN..5F200205-200405

4301

4302

8401

9008011339

main90080-11339

9010510494

main90105-10494

9020110068

main90201-10068

9161160628

main91611-60628

28 parts on this diagram · 1 diagram in section
