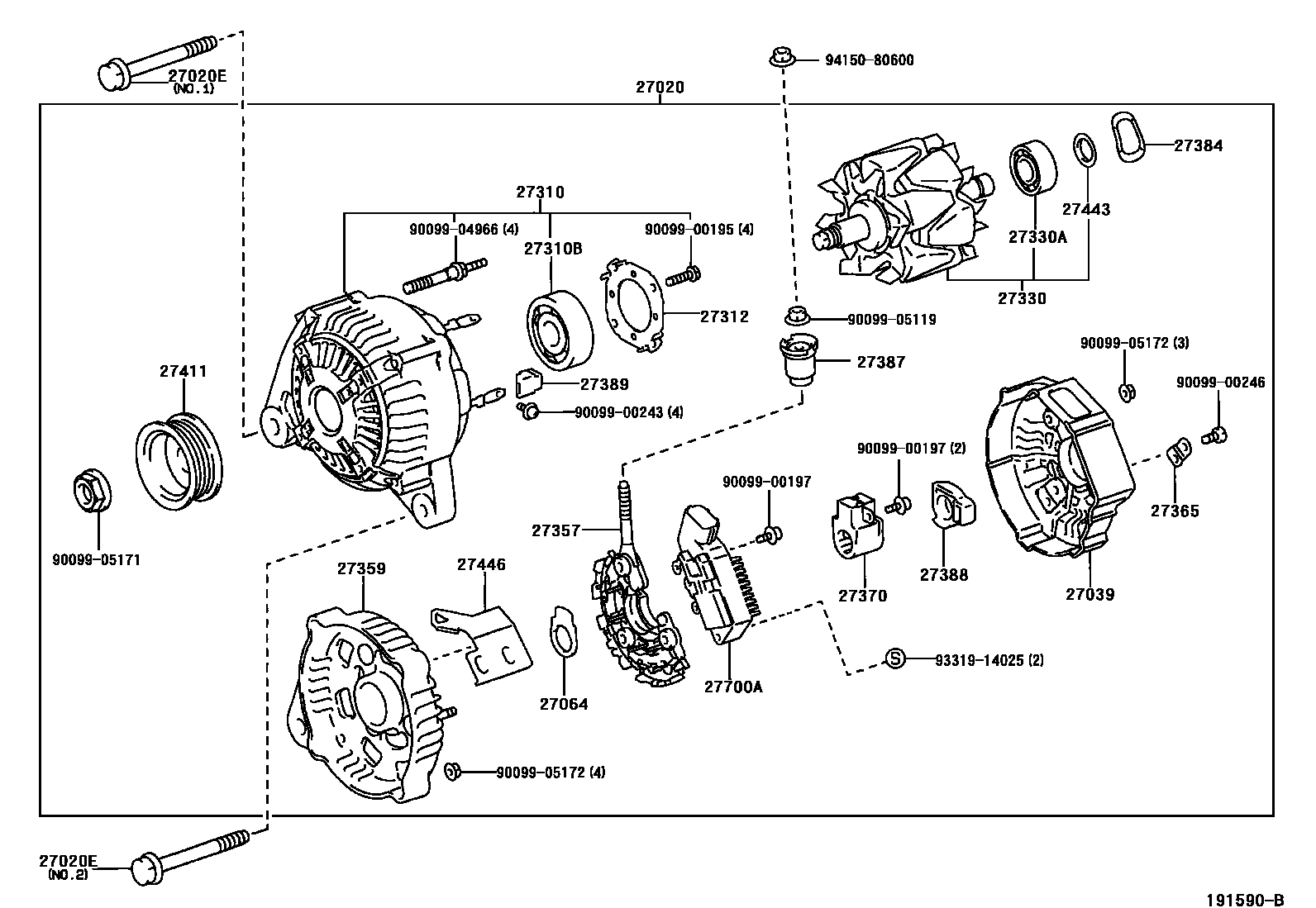

ALTERNATOR

0001 112V 80A 0002 112V 80A 0003 112V 100A 0004 112V 100A

27020ALTERNATOR ASSY

main27060-0A080i1MZFE..MCV30..TAIW200203-200404

12V 100A

main27060-0H030i1AZFE..ACV31..TAIW200203-200407

12V 80A

sub27060-0H031

main27060-0H031i1AZFE..ACV31..TAIW200407

12V 80A

main27060-0H040i1AZFE,2AZFE..ACV3#..TH200203-200407

12V 80A

sub27060-0H041

main27060-0H041i1AZFE,2AZFE..ACV3#..TH,VN200407

12V 80A

main27060-0H060i1AZFE,2AZFE..ACV3#..MA200206-200406

12V 80A

sub27060-0H061

main27060-0H061i1AZFE,2AZFE..ACV3#..MA200407

12V 80A

main27060-20230i1MZFE..MCV30..IDN,VN200205-200407

12V 100A

sub27060-20240

main27060-28170i1AZFE,2AZFE..ACV3#..IDN,PHL,VN200205-200406

12V 80A

sub27060-28180

main27060-28180i1AZFE,2AZFE..ACV3#..PHL,VN200406-200407

12V 80A

sub27060-28110

27020EBOLT(FOR ALTERNATOR)

main91511-J0840i1AZFE,2AZFE..ACV3#..MA,PHL,VN200203-200407

NO.1

main91511-J0840i1AZFE..ACV31..MA,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN200404-200607

NO.2

main91512-81085i1AZFE,2AZFE..ACV3#..MA,PHL,VN200203-200407

NO.2

main91512-81085i1AZFE..ACV31..MA,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN200404

NO.1

main91551-80840i1AZFE,2AZFE..ACV3#200608

NO.2

27039COVER, ALTERNATOR REAR END

main27039-20160i1MZFE..MCV30..TAIW200203-200404

main27039-28090i1AZFE..ACV31..TAIW200203-200406

27064SEAL, ALTERNATOR PLATE

main27064-42010i1AZFE,1MZFE..ACV31,MCV30..TAIW200203-200406

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0A070i1MZFE..MCV30..TAIW200203-200404

sub27310-20170

main27310-0H020i1AZFE..ACV31..TAIW200203-200406

sub27310-0H021

main27310-0H021i1AZFE..ACV31..TAIW200407

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10002i1MZFE..MCV30..TAIW200203-200404

sub90099-10192

main90068-10015i1AZFE..ACV31..TAIW200203-200406

main90099-10192i1MZFE..MCV30..TAIW200404

main90099-10226i1AZFE..ACV31..TAIW200407

27312PLATE, RETAINER

main27312-42010i1AZFE..ACV31..TAIW200203-200406

27330ROTOR ASSY, ALTERNATOR

main27330-0A070i1MZFE..MCV30..TAIW200203-200605

main27330-0H010i1AZFE..ACV31..TAIW200203-200406

main27330-28050i1MZFE..MCV30..PHL,TH;1MZFE..MCV30..VN..5FC200205-200611

main27330-74550i1AZFE..ACV31..TAIW200203-200611

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10013i1AZFE,1MZFE..ACV31,MCV30..TAIW200203-200406

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22050i1AZFE..ACV31..TAIW200203-200611

main27357-70450i1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200611

27359FRAME, ALTERNATOR RECTIFIER END

main27359-0A070i1MZFE..MCV30..TAIW200203-200404

main27359-0H010i1AZFE..ACV31..TAIW200203-200406

main27359-0H020i1AZFE..ACV31..TAIW200407

sub27359-28090

27365PLATE, TERMINAL

main27365-55080i1AZFE,1MZFE..ACV31,MCV30..TAIW200203-200406

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i1AZFE,2AZFE..ACV3#..4FC;2AZFE..ACV30..(IDN,VN)..5F;1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200611

27384WASHER

main27384-50030i1AZFE,1MZFE..ACV31,MCV30..TAIW200203-200406

27387INSULATOR, TERMINAL

main27387-42021i1AZFE..ACV31..TAIW200203-200406

27388COVER, ALTERNATOR BRUSH

main27388-42010i1AZFE..ACV31..TAIW200203-200406

27389INSULATOR, TERMINAL

main27389-42010i1MZFE..MCV30..TAIW200203-200406

27411PULLEY, ALTERNATOR

main27411-28090i1AZFE,2AZFE..ACV3#..4FC;2AZFE..ACV30..(IDN,VN)..5F200203-200611

main27411-46080i1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH200203-200611

27443COVER, ALTERNATOR BEARING

main27443-63020i1AZFE..ACV31..TAIW200203-200406

27446CLIP, ALTERNATOR CORD

main27446-28060i1AZFE..ACV31..TAIW200203-200406

main27446-62050i1MZFE..MCV30..TAIW200203-200404

27700AREGULATOR ASSY, GENERATOR

main27700-20050i1AZFE,2AZFE..ACV3#..4FC;2AZFE..ACV30..(IDN,VN)..5F;1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200407

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9331914025

main93319-14025

9415080600

main94150-80600

31 parts on this diagram · 4 diagrams in section
