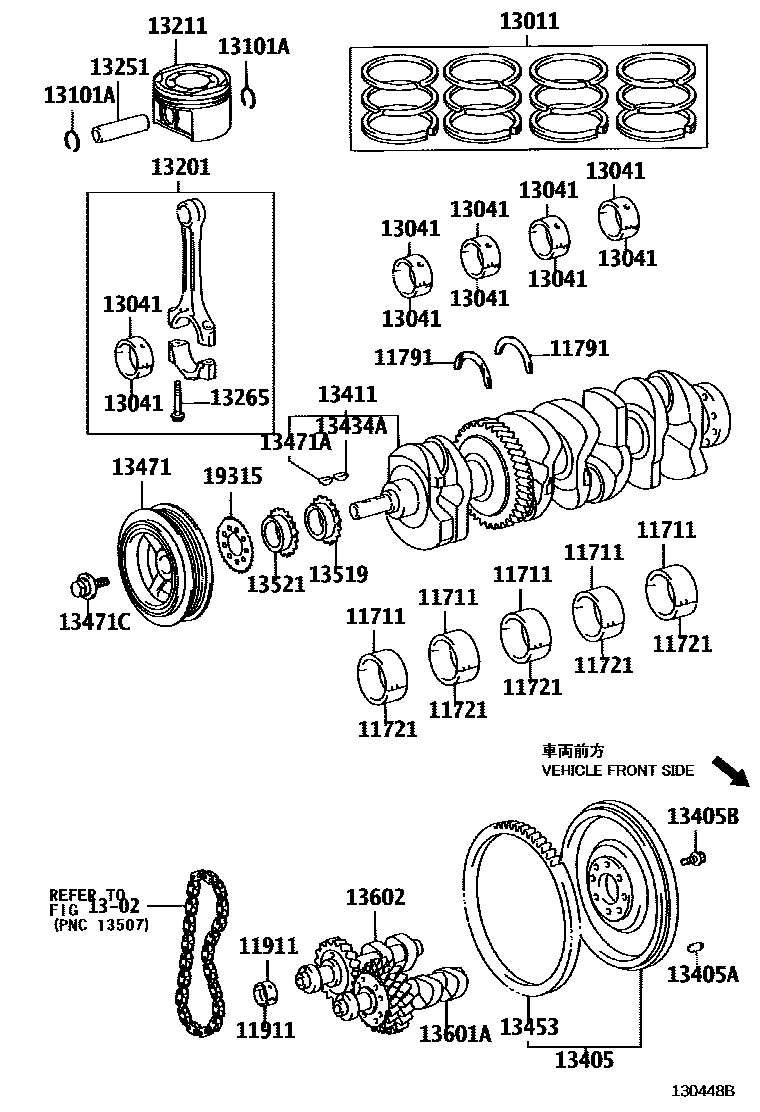

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK 6,NO.2,REFER R/M
MARK 7,NO.2,REFER R/M
MARK1,NO.2,REFER R/M
MARK2,NO.2,REFER R/M
MARK3,NO.2,REFER R/M
MARK4,NO.2,REFER R/M
MARK5,NO.2,REFER R/M
MARK6,NO.2,REFER R/M
MARK7,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK 6,NO.1,REFER R/M
MARK 7,NO.1,REFER R/M
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,REFER R/M
MARK5,NO.1,REFER R/M
MARK6,NO.1,REFER R/M
MARK7,NO.1,REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
MARK4,(J):REFER R/M
11721BEARING, CRANKSHAFT, NO.2
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,(J):REFER R/M
MARK4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
11911BEARING, BALANCESHAFT, NO.1
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13011RING SET, PISTON
STD,(L)
STD
STD
STD
STD
STD,(J)
STD; STD,(J)
1302CAMSHAFT & VALVE
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,RH
STD,RH
STD,LH
STD,LH
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A,(L):REFER R/M
MARK B,(L):REFER R/M
MARK C,(L):REFER R/M
(L):REFER R/M
MARK A,(J):REFER R/M
MARK B,(J):REFER R/M
MARK C,(J):REFER R/M
(J):REFER R/M
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13211PISTON
MARK A,(L):REFER R/M
MARK B,(L):REFER R/M
MARK C,(L):REFER R/M
MARK A,(J):REFER R/M
MARK B,(J):REFER R/M
MARK C,(J):REFER R/M
MARK A,REFER REPAIR MANUAL
MARK B,(J):REFER R/M
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
MARK A
MARK B
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
(L)
(J)
(L)
(J)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
*110,(L)
*109,(L)
(L)
(J)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L),*110
*109,(L)
(L)
(J)
13601ABALANCESHAFT SUB-ASSY, NO.1
13602BALANCESHAFT SUB-ASSY, NO.2
19315PLATE, CRANK ANGLE SENSOR, NO.1
27 parts on this diagram · 2 diagrams in section
