WINDSHIELD WIPER

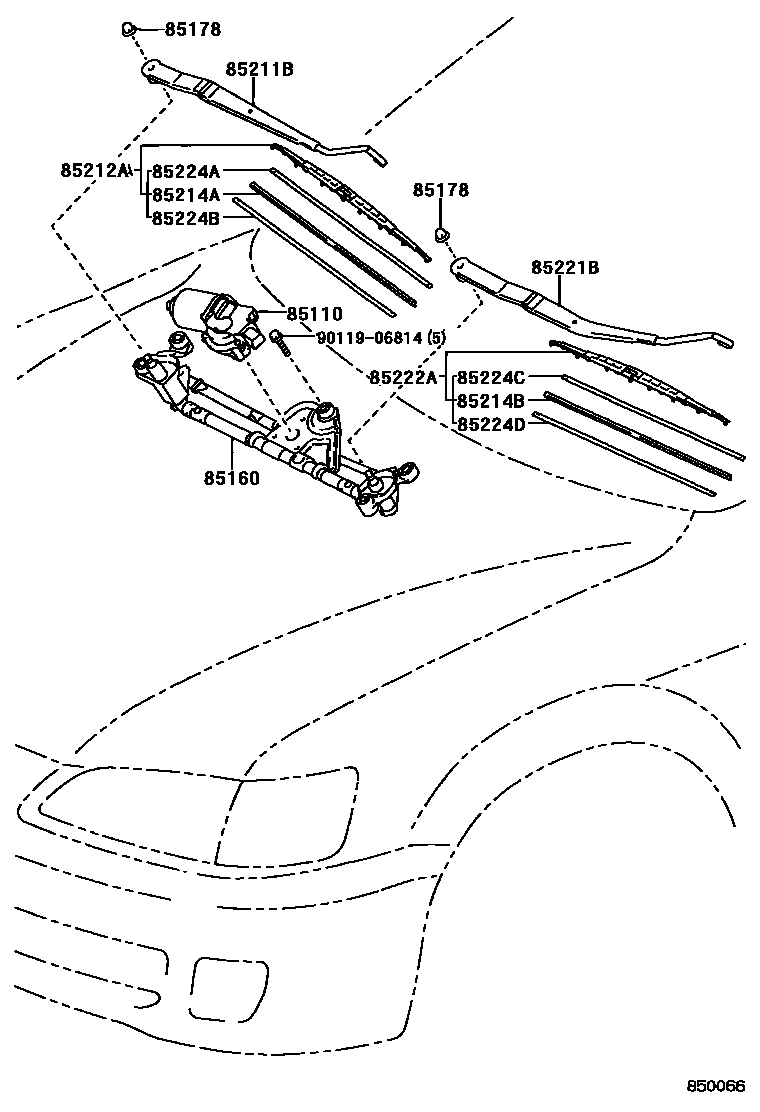

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33160i199810

main85110-33170i199608

85160LINK ASSY, WINDSHIELD WIPER

main85150-33100i199810

main85150-33110i199608

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2i199608

85211BARM, FRONT WIPER, RH

main85211-33140i199810

main85211-33150i199608

85212ABLADE, FR WIPER, RH

main85212-33130i199608-199905

main85212-33160i199905

main85212-33170i199905

main85212-60090i199810-199905

85214ARUBBER, WIPER, RH

main85214-30350i199905

main85214-33040i199905

main85214-33110i199608-199905

main85214-60060i199810-199905

85214BRUBBER, WIPER, LH

main85214-20350i199608-199905

main85214-30360i199905

main85214-33100i199810-199905

main85214-33170i199905-199907

main85214-60100i199907

85221BARM, FRONT WIPER, LH

main85221-33140i199810

main85221-33150i199608

85222ABLADE, FR WIPER, LH

main85222-30540i199905

main85222-33140i199810-199905

main85222-33150i199608-199905

main85222-33180i199905

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33040i199608

main85224-60100i199810

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33040i199608

main85224-60100i199810

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20310i199608

main85224-33040i199810

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20310i199608

main85224-33040i199810

9011906814

main90119-06814

14 parts on this diagram · 2 diagrams in section
