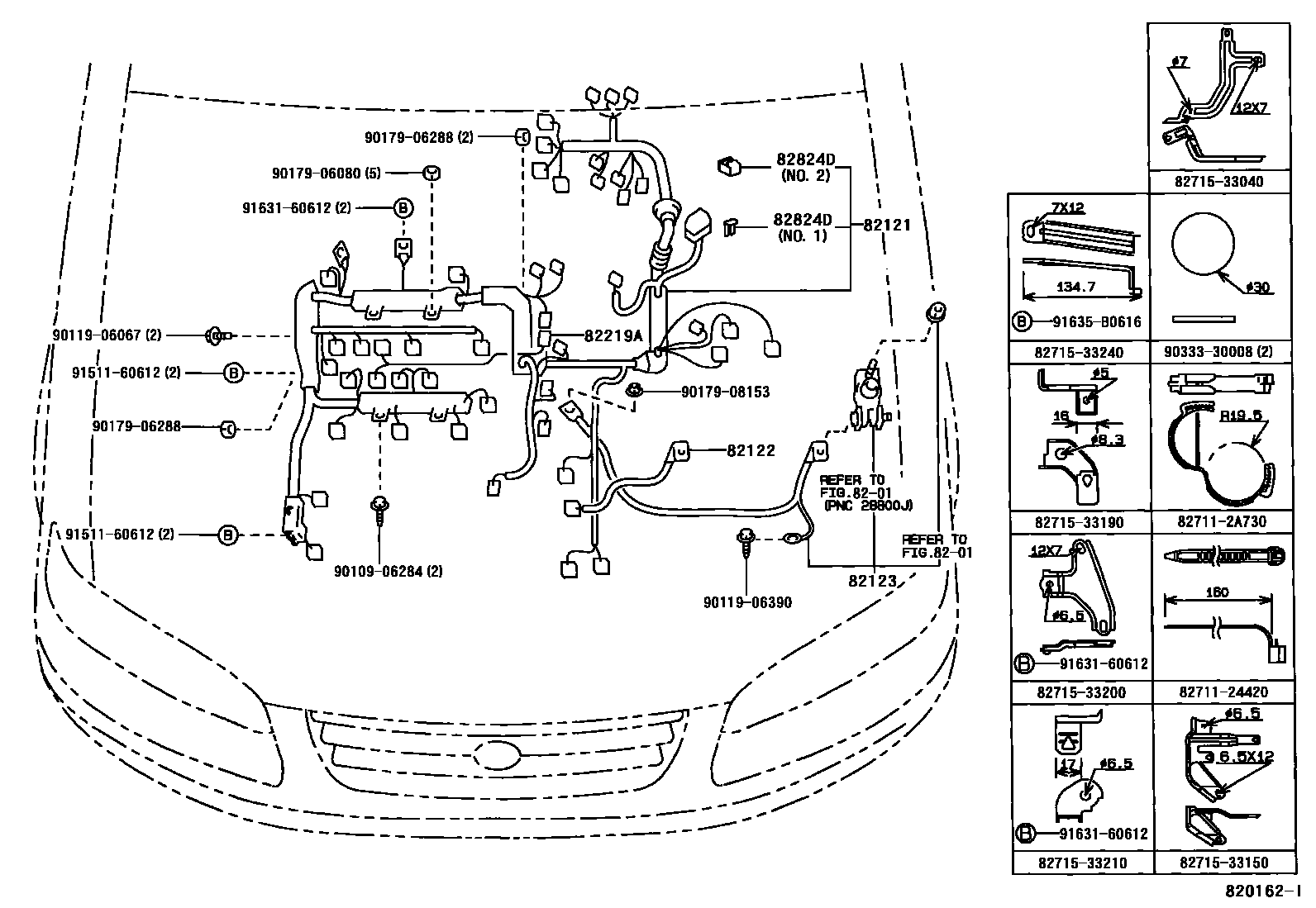

WIRING & CLAMP

0001 1ENGINE WIRE 0002 1ENGINE ROOM WIRE 0003 1COWL WIRE 0004 1COWL WIRE 0005 1INSTRUMENT PANEL WIRE 0006 1INSTRUMENT PANEL WIRE 0007 1DOOR WIRE 0008 1ROOF & FLOOR WIRE 0009 1ROOF & FLOOR WIRE 0010 1SEAT WIRE 0011 1CABLE BOND

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

82121WIRE, ENGINE

main82121-3T010iMCV20..ARL199608

HONG KONG SPEC

main82121-3T060iMCV20199608-199708

main82121-3T061iMCV20..ARL199708

main82121-3T441iMCV20..GCC199810

82122WIRE, ENGINE, NO.2

main82122-07010iMCV20199708-199808

main82122-33020iMCV20199702-199708

82123WIRE, ENGINE, NO.3

main82123-06020iMCV20199608-199808

main82123-33020iMCV20199808

82219AWIRE, SENSOR

main82219-07010iMCV20199608-199808

main82219-33030iMCV20199808

82824DCONNECTOR, WIRING HARNESS

main82824-24010iMCV20199608

NO.1

main82824-50110iMCV20..ARL199908

NO.2

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A730

8271533040BRACKET,WIRING HARNESS CLAMP

main82715-33040

8271533150BRACKET,WIRING HARNESS CLAMP

main82715-33150

8271533190BRACKET,WIRING HARNESS CLAMP

main82715-33190

8271533200BRACKET,WIRING HARNESS CLAMP

main82715-33200

8271533210BRACKET,WIRING HARNESS CLAMP

main82715-33210

8271533240BRACKET,WIRING HARNESS CLAMP

main82715-33240

9010906284

main90109-06284

9011906067

main90119-06067

9011906390

main90119-06390

9017906080

main90179-06080

9017906288

main90179-06288

9017908153

main90179-08153

9033330008

main90333-30008

9151160612

main91511-60612

9163160612

main91631-60612

91635B0616

main91635-B0616

24 parts on this diagram · 11 diagrams in section
