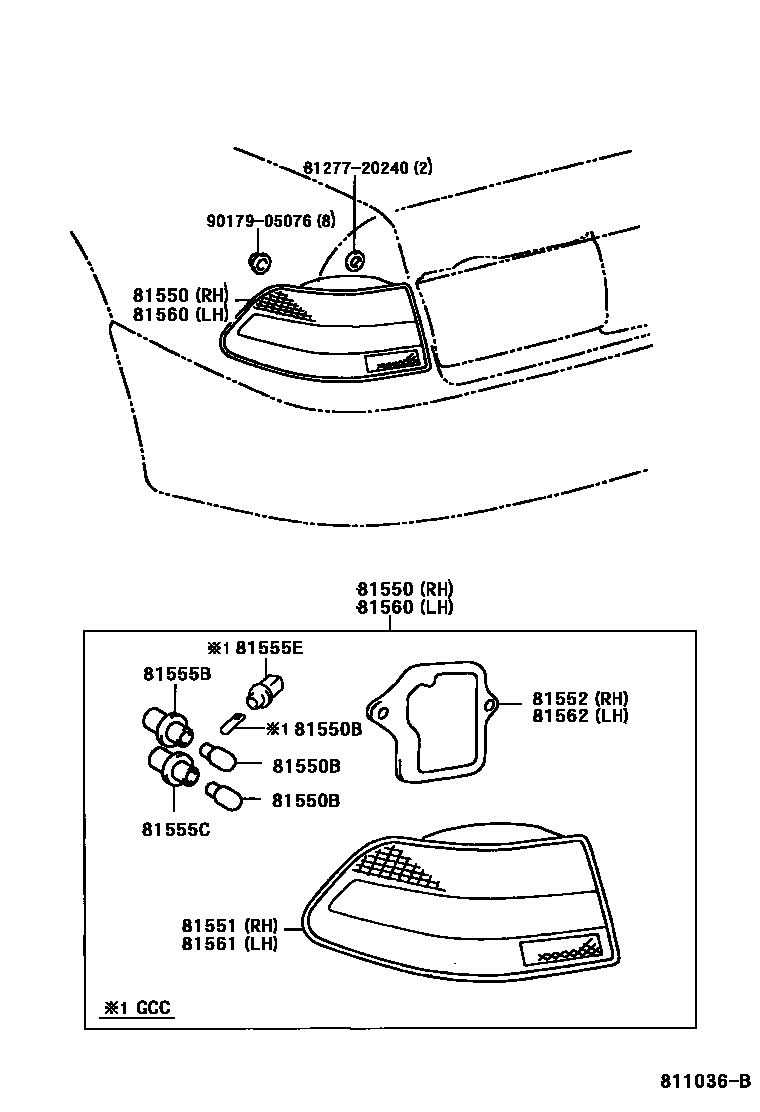

Toyota LEXUS ES300 — REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
81552GASKET, REAR COMBINATION LAMP LENS, RH
81555BSOCKET PLUG, NO.1
81555CSOCKET PLUG, NO.2
81555ESOCKET PLUG, NO.3
81562GASKET, REAR COMBINATION LAMP LENS, LH
8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS
9017905076
12 parts on this diagram · 1 diagram in section
REAR COMBINATION LAMP for Toyota LEXUS ES300
This section contains 12 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota LEXUS ES300. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP LENS, RH, SOCKET PLUG, NO.1.
