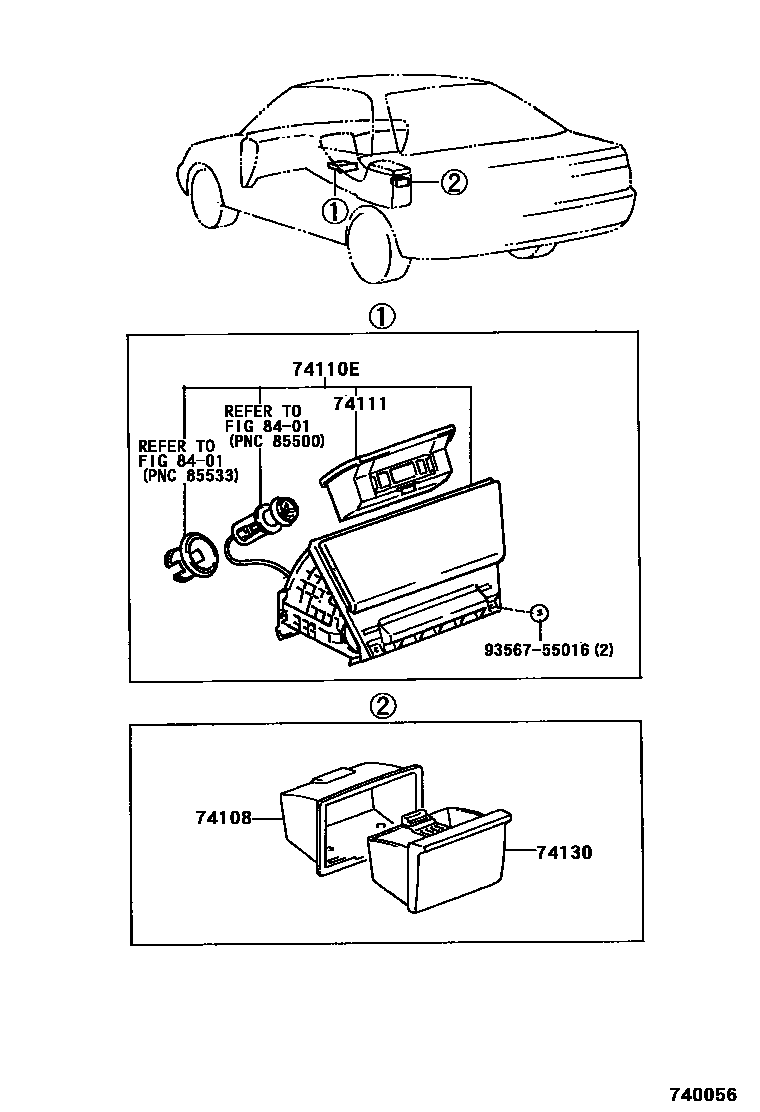

ASH RECEPTACLE

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-24010iMCV20199608

74110ERECEPTACLE ASSY, FRONT ASH

main74110-33060iMCV20..GCC199810

main74110-33070iMCV20..ARL199608

main74110-33130iMCV20..GCC200001-200007

LEXUS 10TH ANNIVERSARY EDITION(G.C.C.)

74111BOX, FRONT ASH RECEPTACLE

main74111-33020iMCV20199608

74130RECEPTACLE ASSY, REAR ASH

main74109-24020-22iMCV20199908

BLACK,TRIM2#

main74109-24020-A2iMCV20199608

IVORY,TRIM0#

main74109-24020-G1iMCV20199608

SAGE,TRIM6#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356755016

main93567-55016

6 parts on this diagram · 1 diagram in section
