FRONT DOOR LOCK & HANDLE

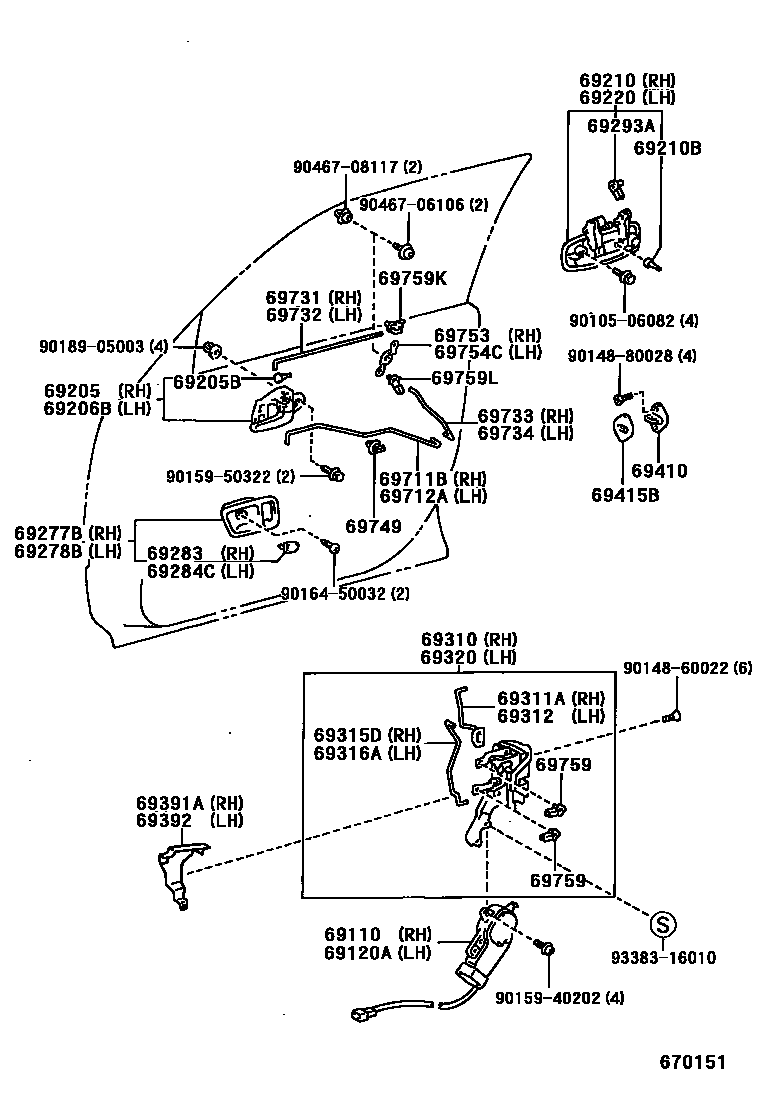

Parts diagram
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
main69110-33020i199608
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
main69120-33020i199608
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-30120-A0i199608
IVORY,TRIM0#
main69205-30120-C0i199908
BLACK,TRIM2#
main69205-30120-G0i199608
SAGE,TRIM6#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014×2i199608
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-30120-A0i199608
IVORY,TRIM0#
main69206-30120-C0i199810-199908
BLACK,TRIM2#
main69206-30120-G0i199608
SAGE,TRIM6#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-33040-A1i199608-200001
SU.WHITE PM,051
main69210-33040-A3i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),WHITE PEARL CL.SH.,062
main69210-33040-B0i199608-200001
GRAY M.M.,1B2
main69210-33040-B2i199908-200001
SILVER ME.,1C0
main69210-33040-B3i199908-200001
DK.GRAY M.M.,1C6
main69210-33040-C0i199810-200001
BLACK,202
main69210-33040-D1i199608-199808
MAGENTA MC.,3L3
main69210-33040-D2i199808-200001
DK.RED MC.,3N6
main69210-33040-E0i199608-200001
BEIGE ME.,4M9
main69210-33040-E1i199608-199908
FLAXEN MM,4M7
main69210-33040-E3i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BEIGE SF,4P2
main69210-33040-G0i199608-199808
DK.GREEN M.M.,6P2
main69210-33040-G2i199808-199908
GREEN MC.,6R1
main69210-33040-G3i199908-200001
GRAYISH GREEN M.M.OP,6R6
main69210-33040-J0i199608-199908
DK.BLUE M.M.,8L3
main69210-33041-A1i200001
SU. WHITE PM.,051
main69210-33041-B0i200001
GRAY M.M.,1B2
main69210-33041-B2i200001
SILVER ME.,1C0
main69210-33041-B3i200001
DK.GRAY M.M.,1C6
main69210-33041-C0i200001
BLACK,202
main69210-33041-D2i200001
DK. RED MC.,3N6
main69210-33041-E0i200001
BEIGE ME.,4M9
main69210-33041-G3i200001
GRAYISH GREEN M.M.OP,6R6
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
main90541-04018×4i199608
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-33040-A1i199608-200001
SU.WHITE PM,051
main69220-33040-A3i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),WHITE PEARL CL.SH.,062
main69220-33040-B0i199608-200001
GRAY M.M.,1B2
main69220-33040-B2i199908-200001
SILVER ME.,1C0
main69220-33040-B3i199908-200001
DK.GRAY M.M.,1C6
main69220-33040-C0i199810-200001
BLACK,202
main69220-33040-D1i199608-199808
MAGENTA MC.,3L3
main69220-33040-D2i199808-200001
DK.RED MC.,3N6
main69220-33040-E0i199608-200001
BEIGE ME.,4M9
main69220-33040-E1i199608-199908
FLAXEN MM,4M7
main69220-33040-E3i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BEIGE SF,4P2
main69220-33040-G0i199608-199808
DK.GREEN M.M.,6P2
main69220-33040-G2i199808-199908
GREEN MC.,6R1
main69220-33040-G3i199908-200001
GRAYISH GREEN M.M.OP,6R6
main69220-33040-J0i199608-199908
DK.BLUE M.M.,8L3
main69220-33041-A1i200001
SU. WHITE PM.,051
main69220-33041-B0i200001
GRAY M.M.,1B2
main69220-33041-B2i200001
SILVER ME.,1C0
main69220-33041-B3i200001
DK.GRAY M.M.,1C6
main69220-33041-C0i200001
BLACK,202
main69220-33041-D2i200001
DK. RED MC.,3N6
main69220-33041-E0i200001
BEIGE ME.,4M9
main69220-33041-G3i200001
GRAYISH GREEN M.M.OP,6R6
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-33030-A0i199608
IVORY,TRIM0#
main69277-33030-C0i199908
BLACK,TRIM2#
main69277-33030-G1i199608
SAGE,TRIM6#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-33030-A0i199608
IVORY,TRIM0#
main69278-33030-C0i199810-199908
BLACK,TRIM2#
main69278-33030-G1i199608
SAGE,TRIM6#
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-30040-A0i199608
IVORY,TRIM0#
main69283-30040-C0i199908
BLACK,TRIM2#
main69283-30040-G1i199608
SAGE,TRIM6#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-30040-A0i199608
IVORY,TRIM0#
main69284-30040-C0i199810-199908
BLACK,TRIM2#
main69284-30040-G1i199608
SAGE,TRIM6#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030i199608-200001
RH
main69293-12040i199608-200001
LH
main69293-33010i200001
RH
main69293-33020i200001
LH
69310LOCK ASSY, FRONT DOOR, RH
main69310-33040i199608
main69310-33080i199810
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-33030i199608
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-33030i199608
69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH
main69315-33020i199608
69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH
main69316-33020i199608
69320LOCK ASSY, FRONT DOOR, LH
main69320-33040i199608
main69320-33070i199810
69391ACOVER, FRONT DOOR LOCK, OUTER RH
main69391-33020i199608
69392COVER, FRONT DOOR LOCK, OUTER LH
main69392-33020i199608
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-50010×2i199608
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-50010×2i199608
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
main69711-33020i199608-199805
main69711-33021i199805
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
main69712-33020i199608-199805
main69712-33021i199805
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
main69737-33020i199608
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
main69737-33020i199608
69733LINK, FRONT DOOR INSIDE LOCKING, RH
main69733-33020i199608
69734LINK, FRONT DOOR INSIDE LOCKING, LH
main69733-33020i199608
69749CLAMP, FRONT DOOR LOCK LINK
main69749-50010×2i199608
69753BELLCRANK, DOOR LOCK CONTROL, RH
main69753-33010i199608
69754CBELLCRANK, DOOR LOCK CONTROL, LH
main69754-33010i199608
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-20040i199608
LOWER,YELLOW
main69759-20050i199608
LOWER,BROWN
main69759-24080i199608
UPPER,YELLOW
main69759-24090i199608-199612
UPPER,BROWN
main69759-33030i199612
UPPER,ORANGE
69759KSNAP, DOOR LOCK CONTROL LINK
main69759-20410×2i199608
69759LSNAP, DOOR LOCK CONTROL LINK
main69759-20100i199608
RH
main69759-20110i199608
LH
9010506082
main90105-06082
9014860022
main90148-60022
9014880028
main90148-80028
9015940202
main90159-40202
9015950322
main90159-50322
9016450032
main90164-50032
9018905003
main90189-05003
9046706106
main90467-06106
9046708117
main90467-08117
9338316010
main93383-16010

45 parts on this diagram · 1 diagram in section
