E
EPC Data

FRONT DOOR PANEL & GLASS

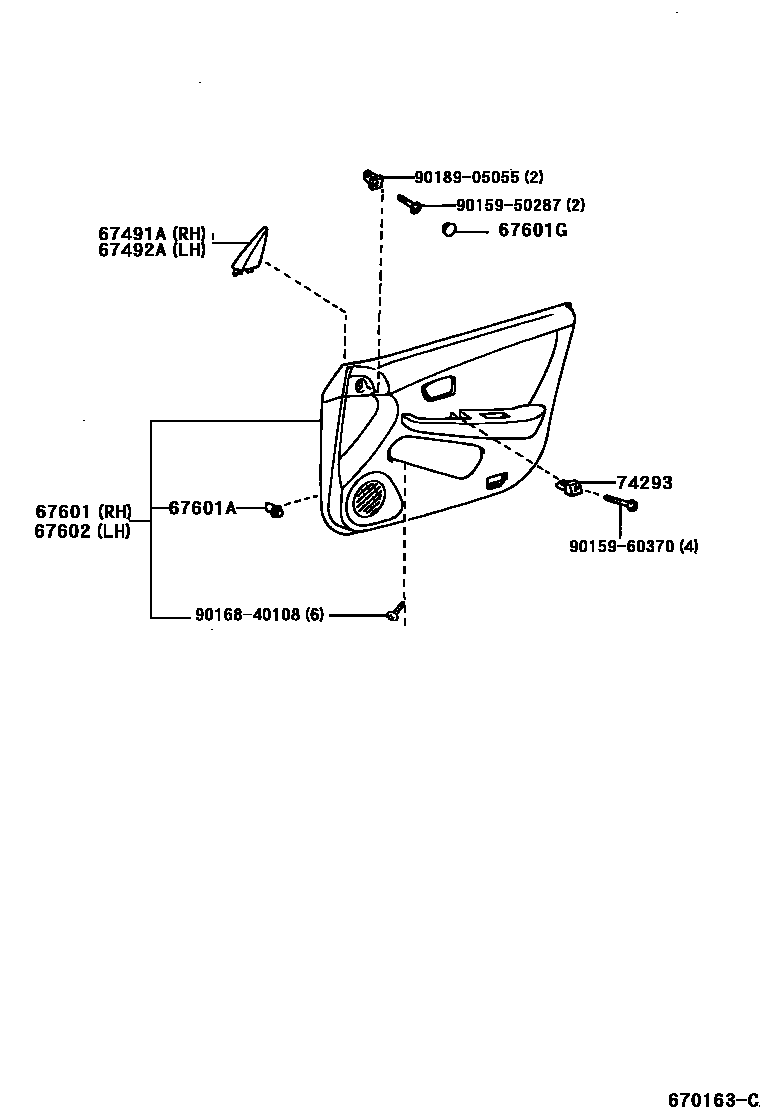

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-33070i199608
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-33070i199608
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-33750-C0i199810-199908
BLACK,TRIM2#
main67610-33750-G0i199608-199701
SAGE,TRIM6#
main67610-33760-A0i199608-199701
W(LEATHER SEAT),IVORY,TRIM0#
main67610-33760-A2i199908
W(LEATHER SEAT),IVORY,TRIM0#
main67610-33760-C0i199810-199908
W(LEATHER SEAT),BLACK,TRIM2#
main67610-33760-C2i199908
W(LEATHER SEAT),BLACK,TRIM2#
main67610-33760-G0i199608-199701
W(LEATHER SEAT),SAGE,TRIM6#
main67610-33760-G2i199908
W(LEATHER SEAT),DK.SAGE,TRIM6#
main67610-33790-A2i199912
W(LEATHER SEAT),IVORY,TRIM0#
main67610-33790-C4i199912
W(LEATHER SEAT),BLACK,TRIM2#
main67610-33790-G4i199912
W(LEATHER SEAT),DK.SAGE,TRIM6#
main67610-33830-G0i199701-199908
SAGE,TRIM6#
main67610-33840-A0i199701-199908
IVORY,TRIM0#
main67610-33840-A2i199908-199912
W(LEATHER SEAT),IVORY,TRIM0#
main67610-33840-C1i199908-199912
W(LEATHER SEAT),BLACK,TRIM2#
main67610-33840-G0i199701-199908
W(LEATHER SEAT),SAGE,TRIM6#
main67610-33840-G2i199908-199912
W(LEATHER SEAT),DK.SAGE,TRIM6#
main67650-33090-C1i199908
BLACK,TRIM2#
main67650-33090-G1i199908
DK.SAGE,TRIM6#
main67650-33100-G1i199912-200101
DK.SAGE,TRIM6#
main67650-33110-G1i199908-199912
DK.SAGE,TRIM6#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-12050×14i199608
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01800-C0×2i199908
BLACK,TRIM2#
main90950-01800-E1×2i199608
OAK,TRIM0#
main90950-01800-G2×2i199608
DK. SAGE,TRIM6#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-33700-C0i199810-199908
BLACK,TRIM2#
main67620-33700-G0i199608-199701
SAGE,TRIM6#
main67620-33710-A0i199608-199701
W(LEATHER SEAT),IVORY,TRIM0#
main67620-33710-A2i199908
W(LEATHER SEAT),IVORY,TRIM0#
main67620-33710-C0i199810-199908
W(LEATHER SEAT),BLACK,TRIM2#
main67620-33710-C2i199908
W(LEATHER SEAT),BLACK,TRIM2#
main67620-33710-G0i199810-199908
W(LEATHER SEAT),SAGE,TRIM6#
main67620-33710-G2i199908
W(LEATHER SEAT),DK.SAGE,TRIM6#
main67620-33740-A2i199912
W(LEATHER SEAT),IVORY,TRIM0#
main67620-33740-C4i199912
W(LEATHER SEAT),BLACK,TRIM2#
main67620-33740-G4i199912
W(LEATHER SEAT),DK.SAGE,TRIM6#
main67620-33760-G0i199701-199908
SAGE,TRIM6#
main67620-33770-A0i199701-199908
IVORY,TRIM0#
main67620-33770-A2i199908-199912
W(LEATHER SEAT),IVORY,TRIM0#
main67620-33770-C1i199908-199912
W(LEATHER SEAT),BLACK,TRIM2#
main67620-33770-G0i199701-199908
W(LEATHER SEAT),SAGE,TRIM6#
main67620-33770-G2i199908-199912
W(LEATHER SEAT),DK.SAGE,TRIM6#
main67660-33010-C1i199908
BLACK,TRIM2#
main67660-33010-G1i199908
DK.SAGE,TRIM6#
main67660-33020-G1i199912-200101
DK.SAGE,TRIM6#
main67660-33030-G1i199908-199912
DK.SAGE,TRIM6#
74293PLATE, FRONT DOOR ARMREST, NO.1
main74294-32010×2i199608
9015950287
main90159-50287
9015960370
main90159-60370
9016840108
main90168-40108
9018905055
main90189-05055

11 parts on this diagram · 2 diagrams in section
