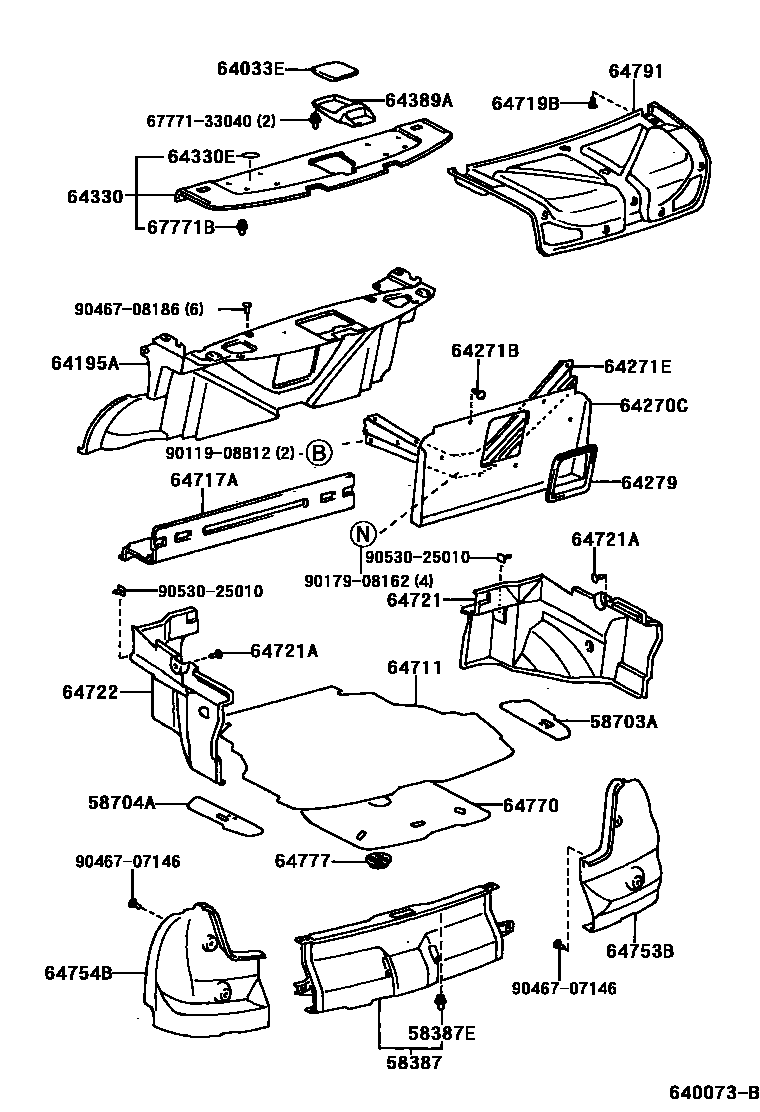

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64033EGRILLE SUB-ASSY, REAR SPEAKER
64195AINSULATOR, ROOM PARTITION PANEL
64270CBOARD ASSY, ROOM PARTITION
BLACK,TRIM0#,6#
BLACK,TRIM0#,2#,6#
64271BCLIP(FOR ROOM PARTITION BOARD)
64271EPANEL, ROOM PARTITION
64279PROTECTOR, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
OAK,TRIM0#
DARK SAGE,TRIM6#
BLACK,TRIM2#
OAK,TRIM0#
DARK SAGE,TRIM6#
OAK,TRIM0#
DARK SAGE,TRIM6#
BLACK,TRIM2#
OAK,TRIM0#
DARK SAGE,TRIM6#
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
64389ABASE, REAR SPEAKER GRILLE
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,6#
BLACK,TRIM0#,2#,6#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,6#
BLACK,TRIM0#,2#,6#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,6#
BLACK,TRIM0#,2#,6#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,6#
BLACK,TRIM0#,2#,6#
64753BPLATE, REAR FLOOR FINISH SIDE, RH
64754BPLATE, REAR FLOOR FINISH SIDE, LH
64770COVER ASSY, SPARE WHEEL
64777CLAMP, SPARE WHEEL COVER
STANDARD USE = SPARE TIRE
TEMPORARY USE = SPARE TIRE
64791COVER, BACK DOOR TRIM
BLACK,TRIM0#,6#
BLACK,TRIM0#,2#,6#
67771BRETAINER, PACKAGE TRAY TRIM
6777133040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-33040
9011908B12
main90119-08B12
9017908162
main90179-08162
9046707146
main90467-07146
9046708186
main90467-08186
9053025010
main90530-25010
31 parts on this diagram · 1 diagram in section
