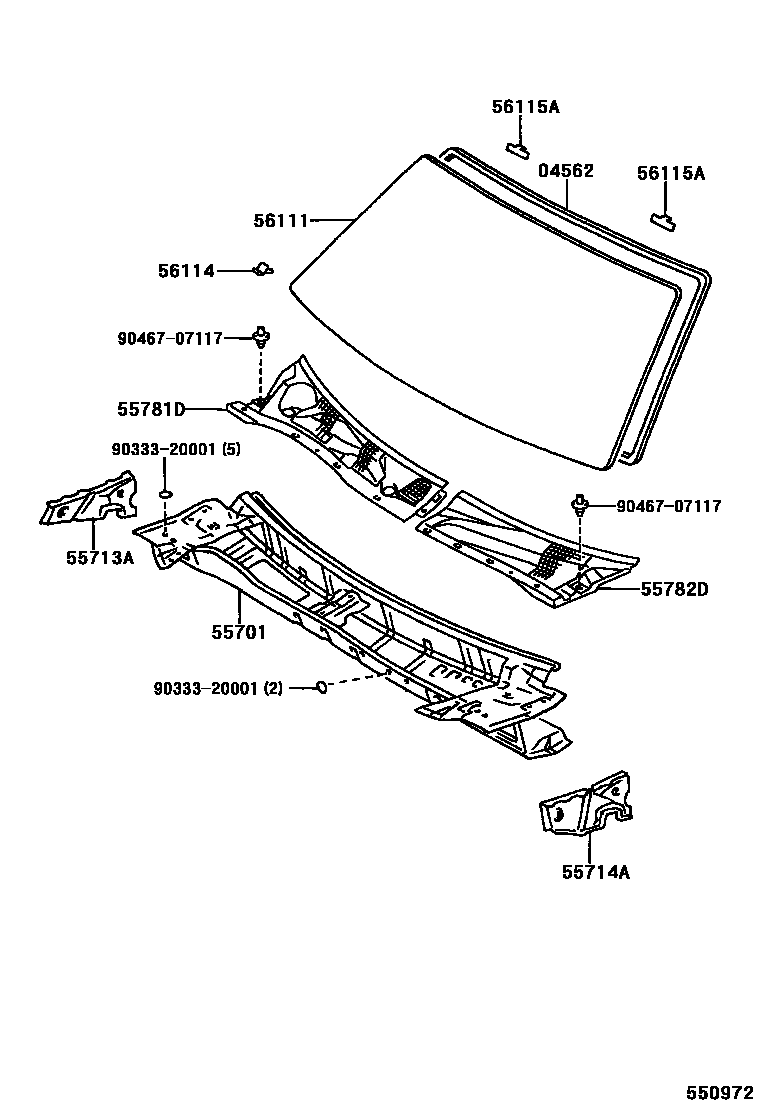

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iMCV20199608

55701PANEL SUB-ASSY, COWL

main55700-33170iMCV20..GCC199810

main55700-33180iMCV20..ARL199608

55713APANEL, COWL TOP SIDE, RH

main55713-33020iMCV20199608

55714APANEL, COWL TOP SIDE, LH

main55714-33020iMCV20199608

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-33140iMCV20..GCC199810-200107

main55781-33150iMCV20199608-199810

main55781-33151iMCV20..ARL199810-200107

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-33140iMCV20..GCC199810

main55782-33150iMCV20199608-199810

main55782-33151iMCV20..ARL199810-199901

main55782-33152iMCV20..ARL199901

56111GLASS, WINDSHIELD

main56101-33181iMCV20..GCC199810-199908

*TL,T=4.76,GREEN

main56101-33210iMCV20..ARL199608-199908

*TL,T=4.76,GREEN

main56101-33220iMCV20..GCC199908

*UVCL,T=4.76,GREEN

main56101-33260iMCV20..ARL199908

*TL,T=4.76,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2iMCV20199608

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-33020×2iMCV20199608

9033320001

main90333-20001

9046707117

main90467-07117

11 parts on this diagram · 2 diagrams in section
