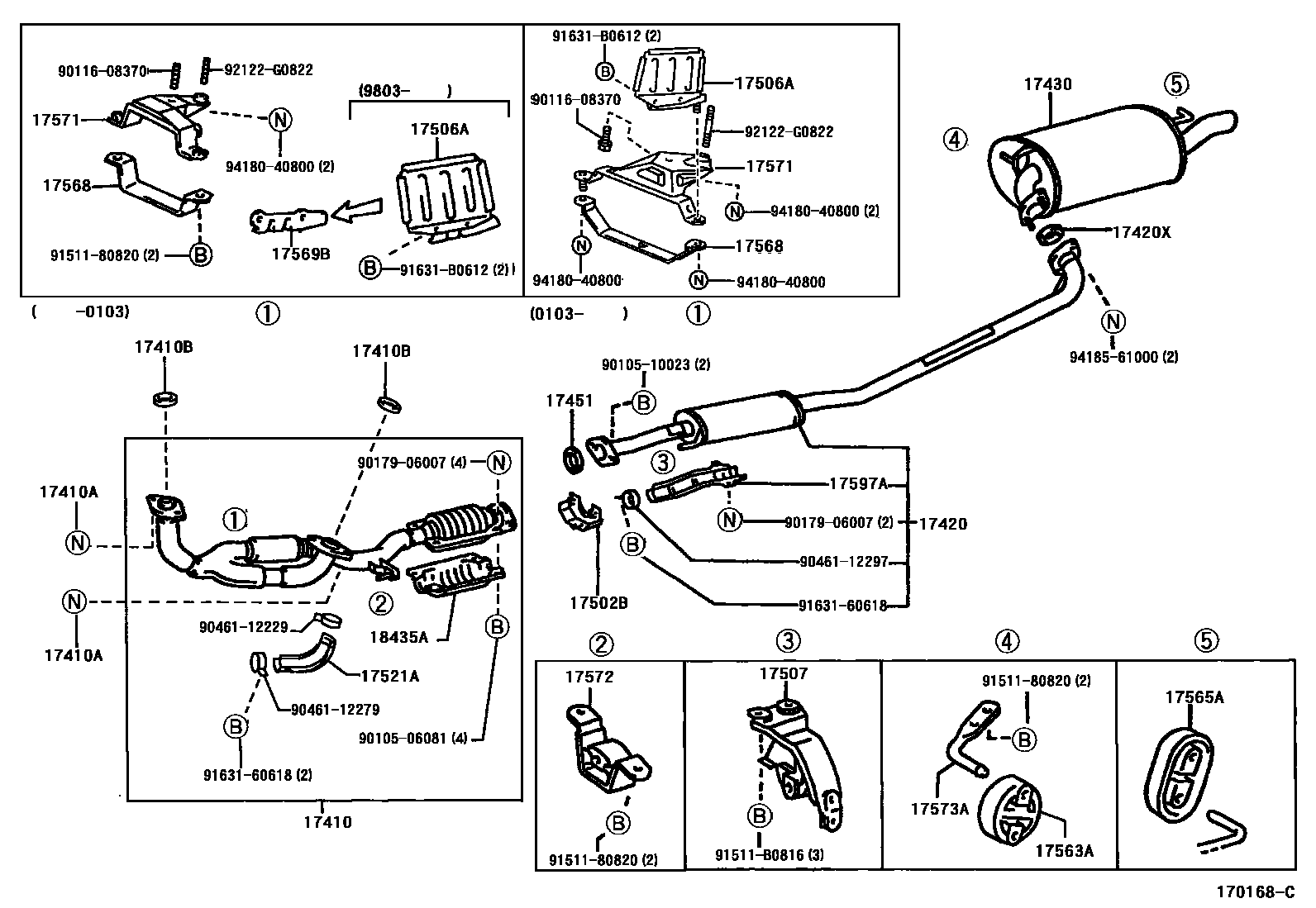

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
W/O(CONVERTER PROTECTOR)
W(CONVERTER PROTECTOR)
W(CONVERTER PROTECTOR)
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
FRONT EXHAUST PIPE=W/O(CONVERTER PROTECT0R)
FRONT EXHAUST PIPE=W(CONVERTER PROTECTOR)
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
FRONT EXHAUST PIPE=W/O(CONVERTER PROTECT0R)
FRONT EXHAUST PIPE=W(CONVERTER PROTECTOR)
17502BBRACKET SUB-ASSY, CATALYTIC CONVERTER, FRONT
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
FRONT EXHAUST PIPE=W/O(CONVERTER PROTECT0R)
17521APROTECTOR, EXHAUST PIPE, UPPER NO.1
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17568STAY, EXHAUST PIPE SUPPORT
17569BSTAY, EXHAUST PIPE SUPPORT, NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17597APROTECTOR, EXHAUST PIPE, LOWER NO.5
18435APROTECTOR, MONOLITHIC CONVERTER
9010506081
main90105-06081
9010510023
main90105-10023
9011608370
main90116-08370
9017906007
main90179-06007
9046112229
main90461-12229
9046112279
main90461-12279
9046112297
main90461-12297
9151180820
main91511-80820
91511B0816
main91511-B0816
9163160618
main91631-60618
91631B0612
main91631-B0612
92122G0822
main92122-G0822
9418040800
main94180-40800
9418561000
main94185-61000
34 parts on this diagram · 3 diagrams in section
