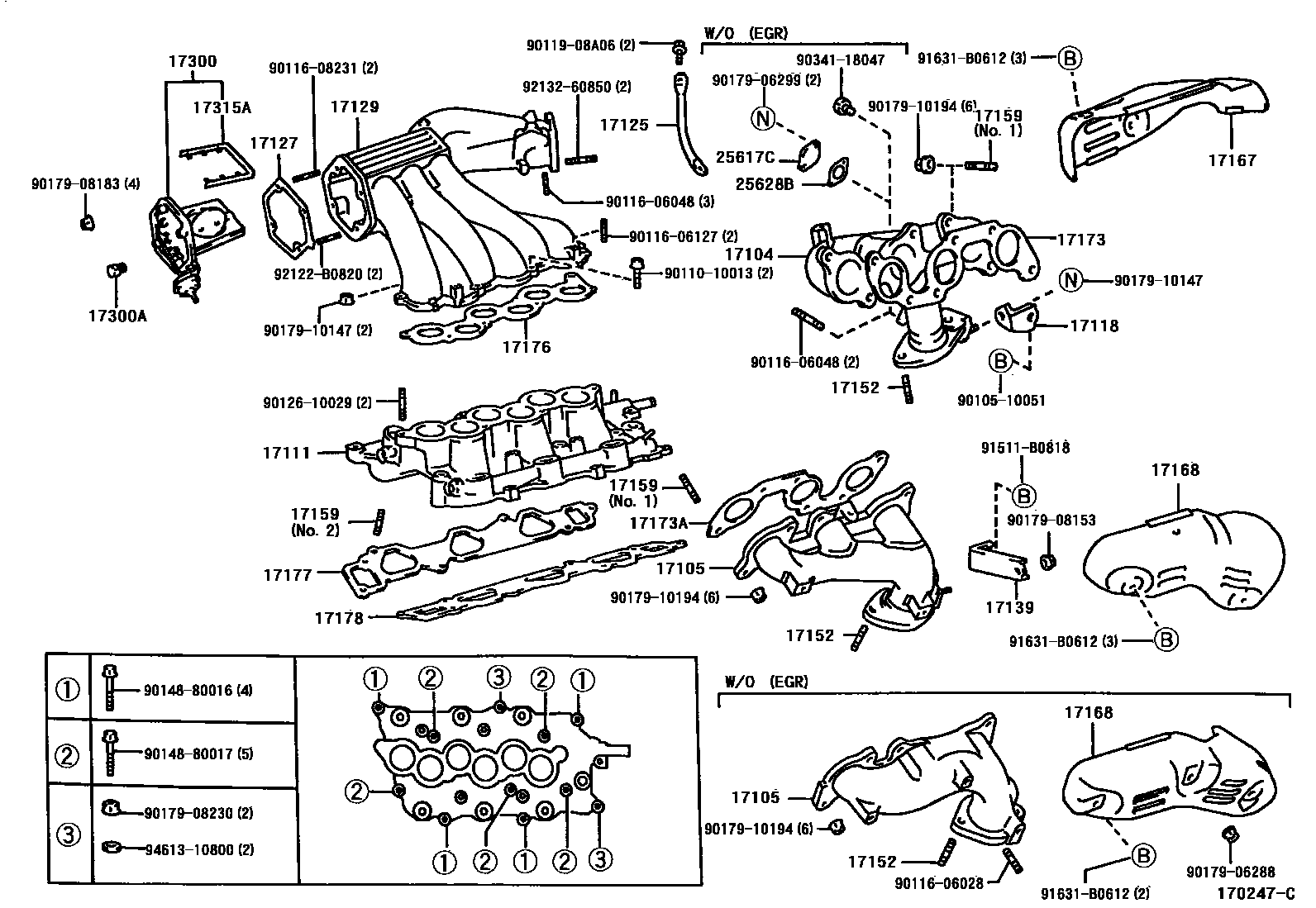

MANIFOLD
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17125STAY, SURGE TANK, NO.1
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
17139STAY, MANIFOLD, NO.2
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17300VALVE ASSY, INTAKE AIR CONTROL
17300APLUG, W/HEAD TAPER SCREW(FOR AIR CONTROL VALVE)
17315AGASKET, INTAKE AIR CONTROL VALVE
25617CPLATE, EGR HOLE COVER
25628BGASKET, EGR INLET
9010510051
main90105-10051
9011010013
main90110-10013
9011606028
main90116-06028
9011606048
main90116-06048
9011606127
main90116-06127
9011608231
main90116-08231
9011908A06
main90119-08A06
9012610029
main90126-10029
9014880016
main90148-80016
9014880017
main90148-80017
9017906288
main90179-06288
9017906299
main90179-06299
9017908153
main90179-08153
9017908183
main90179-08183
9017908230
main90179-08230
9017910147
main90179-10147
9017910194
main90179-10194
9034118047
main90341-18047
91511B0818
main91511-B0818
91631B0612
main91631-B0612
92122B0820
main92122-B0820
9213260850
main92132-60850
9461310800
main94613-10800
45 parts on this diagram · 1 diagram in section
