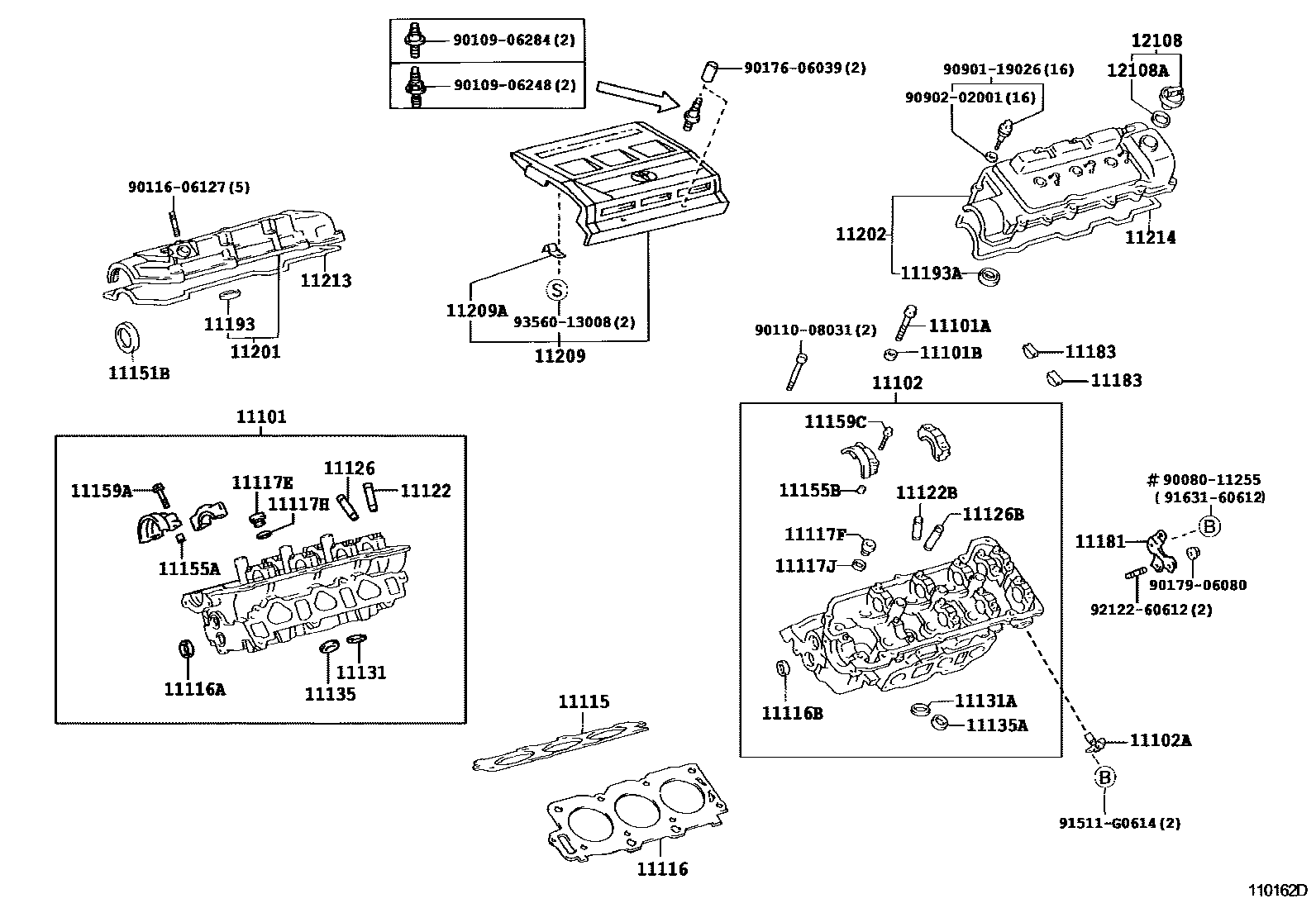

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-29406
sub11101-29407
sub11101-29408
sub11101-29409
sub11101-29410
sub11101-29418
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11102HEAD, CYLINDER, LH
sub11102-29036
sub11102-29037
sub11102-29038
sub11102-29039
sub11102-29040
sub11102-29048
11102ASENSOR, CAMSHAFT POSITION
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
sub90341-24011
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
sub90341-24011
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11155BPIN, RING
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11181PLATE, CYLINDER HEAD, REAR
(L)
(J)
11183PLUG, SEMICIRCULAR
11193GASKET, SPARK PLUG TUBE
sub11193-70010
11193AGASKET, SPARK PLUG TUBE, LH
sub11193-70010
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-20070
11202COVER SUB-ASSY, CYLINDER HEAD, LH
11209COVER SUB-ASSY, V-BANK
sub11209-20041
11209ACLAMP, PIPE
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
9008011255
main90080-11255
9010906248
main90109-06248
9010906284
main90109-06284
9011008031
main90110-08031
9011606127
main90116-06127
9017606039
main90176-06039
9017906080
main90179-06080
9090119026
main90901-19026
9090202001
main90902-02001
91511G0614
main91511-G0614
9163160612
main91631-60612
9212260612
main92122-60612
9356013008
main93560-13008
51 parts on this diagram · 1 diagram in section
