SHORT BLOCK ASSEMBLY

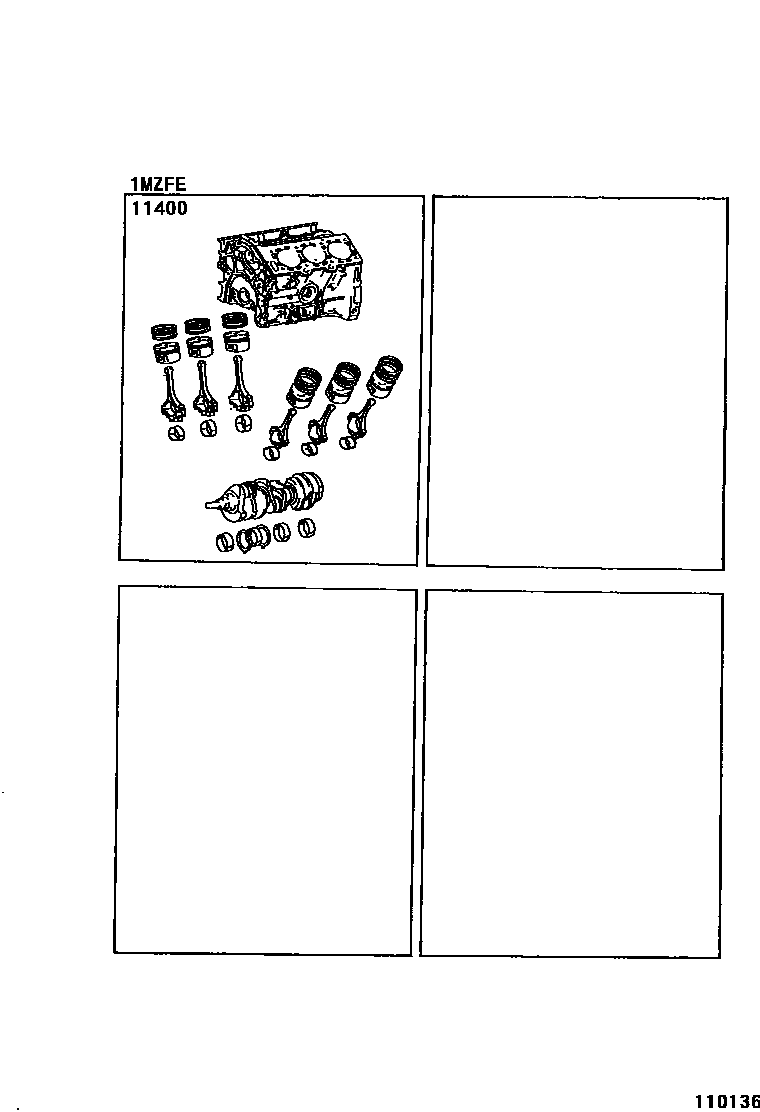

Parts diagram

11400BLOCK ASSY, SHORT

main11400-20010i199608-199710

main11400-20011i199710-199903

main11400-20012i199903

main11400-20021i199810-199903

main11400-20022i199903

1 parts on this diagram · 1 diagram in section
