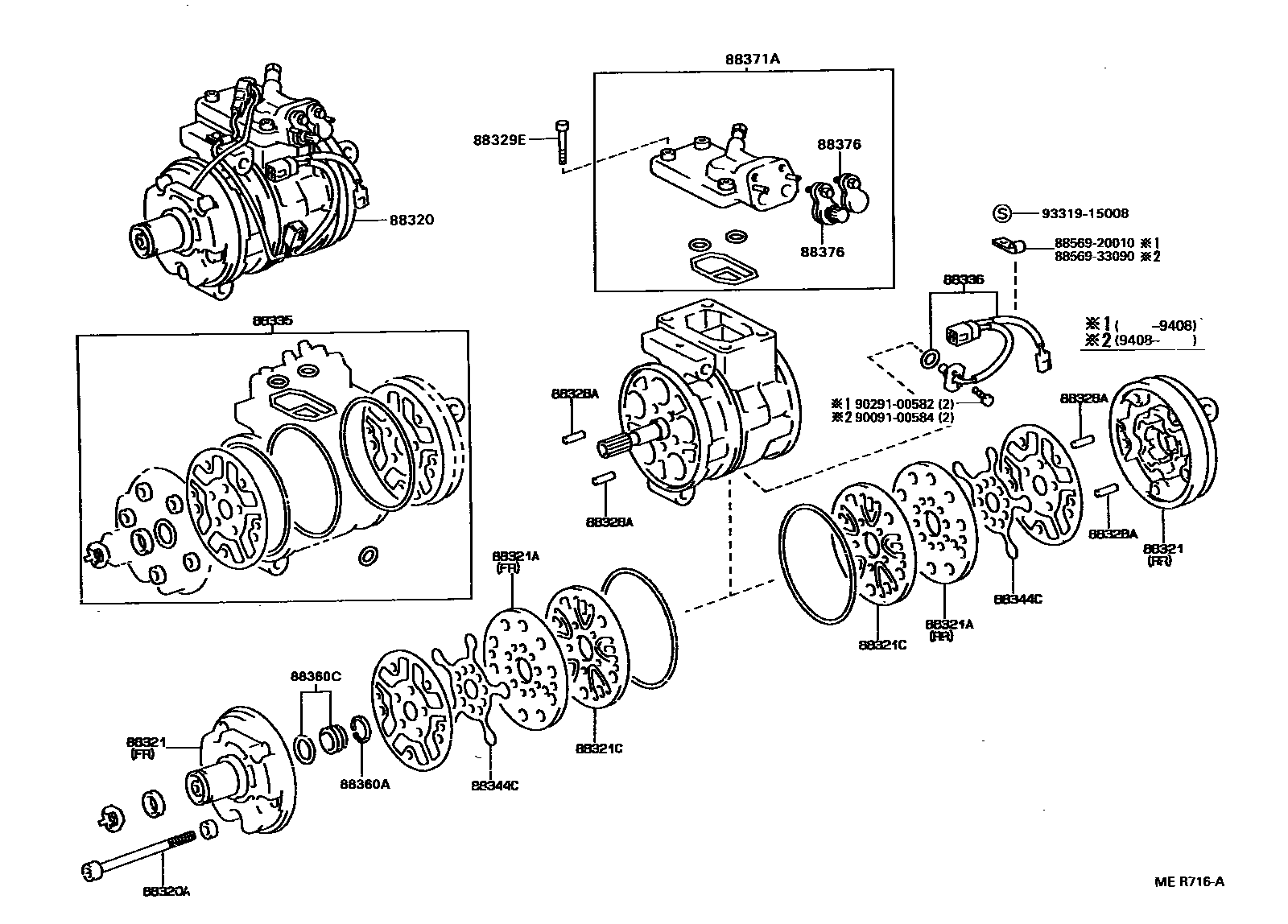

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-33020iVCV10199203-199308

main88320-33070iVCV10199308-199608

88320ABOLT, THROUGH

main90099-04958×5iVCV10199203-199608

88321HEAD, COOLER COMPRESSOR CYLINDER

main88321-32010iVCV10199203-199608

FRONT

main88322-32040iVCV10199203-199608

REAR

88321APLATE SUB-ASSY, VALVE

main88341-22010iVCV10199203-199608

FRONT

main88342-22010iVCV10199203-199608

REAR

88321CREED, SUCTION VALVE

main88343-14020×2iVCV10199203-199608

88328APIN, COMPRESSOR

main90099-08058×4iVCV10199203-199608

88329EBOLT, COMPRESSOR, NO.1

main90099-04924×4iVCV10199203-199608

88335GASKET KIT, OVERHAUL

main88335-2B010iVCV10199308-199608

main88335-32010iVCV10199203-199308

88336SENSOR, COMPRESSOR

main88336-33020iVCV10199203-199608

88344CREED, DISCHARGE VALVE

main88344-22010×2iVCV10199203-199608

88360ARING, COMPRESSOR SEAL PLATE SNAP

main90096-90022iVCV10199203-199608

88360CSEAL ASSY, SHAFT

main88360-14030iVCV10199203-199308

main88360-2B010iVCV10199308-199408

main88360-2B020iVCV10199408-199608

88371AVALVE, SUCTION

main88371-33020iVCV10199203-199308

main88371-33050iVCV10199308-199608

88376CAP, BLIND

main88376-17020iVCV10199203-199308

SUCTION

main88376-22020iVCV10199203-199308

DISCHARGE

8856920010CLAMP (FOR COOLER RELAY)

main88569-20010

8856933090CLAMP (FOR COOLER RELAY)

main88569-33090

9009100584

main90091-00584

9029100582

main90291-00582

9331915008

main93319-15008

19 parts on this diagram · 2 diagrams in section
