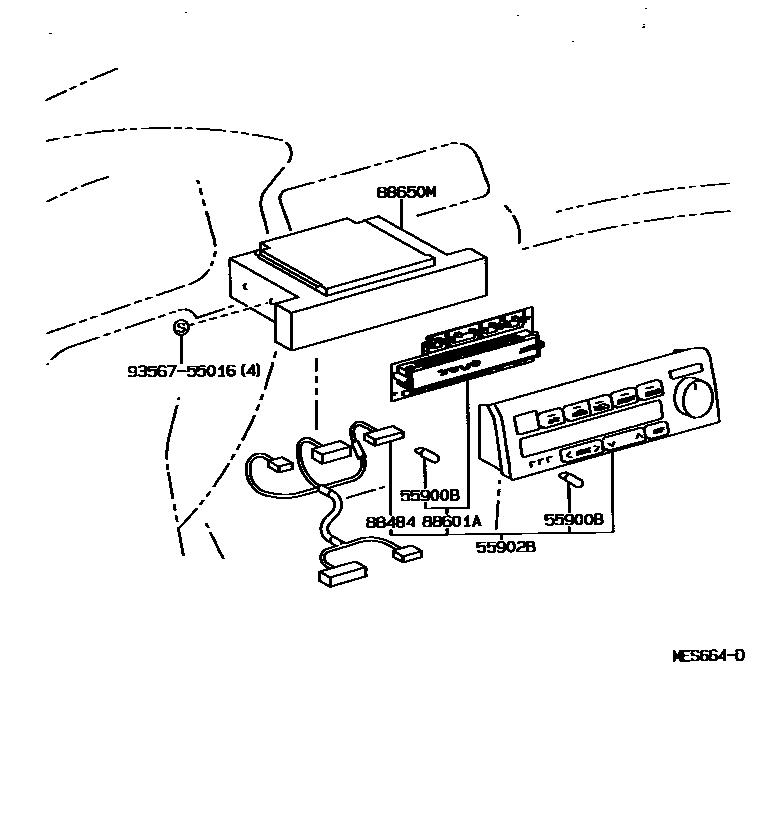

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTRPL PUSH TYPE 0002 1AUTO AIR CONDITIONER SENSOR 0003 1AIR DUCT

55900BBULB, AIR CONDITIONER CONTROL

main84999-60420×2iVCV10199203-199308

14V 1.1W,KNOB

main84999-60430×2iVCV10199203-199608

14V 0.84W,DIAL

main84999-60440×3iVCV10199308-199408

12V 1.12W,DIAL; 12V 1.12W,W(TELEPHONE),KNOB

55902BCONTROL SUB-ASSY, HEATER

main55902-33070iVCV10199308-199608

main55902-33120iVCV10199203-199308

88484WIRE, COOLER, NO.1

main88484-33030iVCV10199203-199608

88601ASWITCH SUB-ASSY, COOLER CONTROL

main88601-33030iVCV10199308-199608

main88601-33050iVCV10199203-199308

88650MCOMPUTER ASSY, AIR CONDITIONER

main88650-33090iVCV10199308-199408

main88650-33100iVCV10199308-199408

W(CAR TELEPHON)

main88650-33130iVCV10199203-199308

main88650-33160iVCV10199408-199608

9356755016

main93567-55016

6 parts on this diagram · 3 diagrams in section
