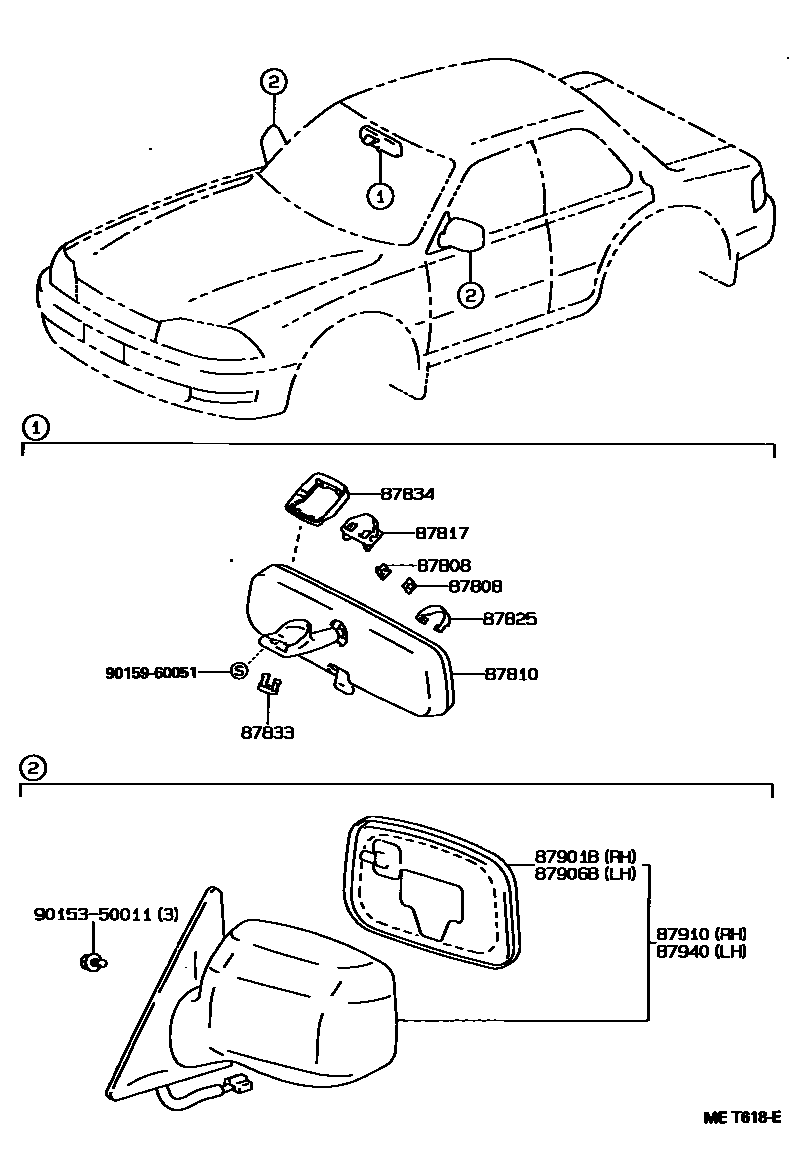

MIRROR
87808HOLDER SUB-ASSY, INNER MIRROR
87810MIRROR ASSY, INNER REAR VIEW
OAK,TRIM4#
TAUPE,TRIM9#
BLACK,TRIM2#
TAUPE,TRIM9#
GRIGE,TRIM0#
OAK,TRIM4#
87817SPACER, INNER REAR VIEW MIRROR
87825SPRING, INNER REAR VIEW MIRROR SETTING
87833CAP, INNER MIRROR SERVICE HOLE
BLACK,TRIM2#
TAUPE,TRIM9#
GRIGE,TRIM0#
OAK,TRIM4#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE PEARL MC,051
BLACK,202
DK.MAUVE MC.ME.,3K1
MED MC.,3K3
LT.GRYSH ROSE ME.OP.,3K7
RED MM.,3K4
MAGENTA MC.,3L3
BEIGE MC.ME.,4J1
BEIGE ME.,4M9
DK.GREEN MC.,6M1
DK.GREEN M.M.,6P2
DK.BLUE MM.,8K0
DK.GRAYISH PURPLE ME,928
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE PEARL MC,051
BLACK,202
DK.MAUVE MC.ME.,3K1
RED MC.,3K3
LT.GRYSH ROSE ME.OP.,3K7
RED MM.,3K4
MAGENTA MC.,3L3
BEIGE MC.ME.,4J1
BEIGE ME.,4M9
DK.GREEN MC.,6M1
DK.GREEN M.M.,6P2
DK.BLUE MM.,8K0
DK.GRAYISH PURPLE ME,928
9015350011
main90153-50011
9015960051
main90159-60051
12 parts on this diagram · 1 diagram in section
