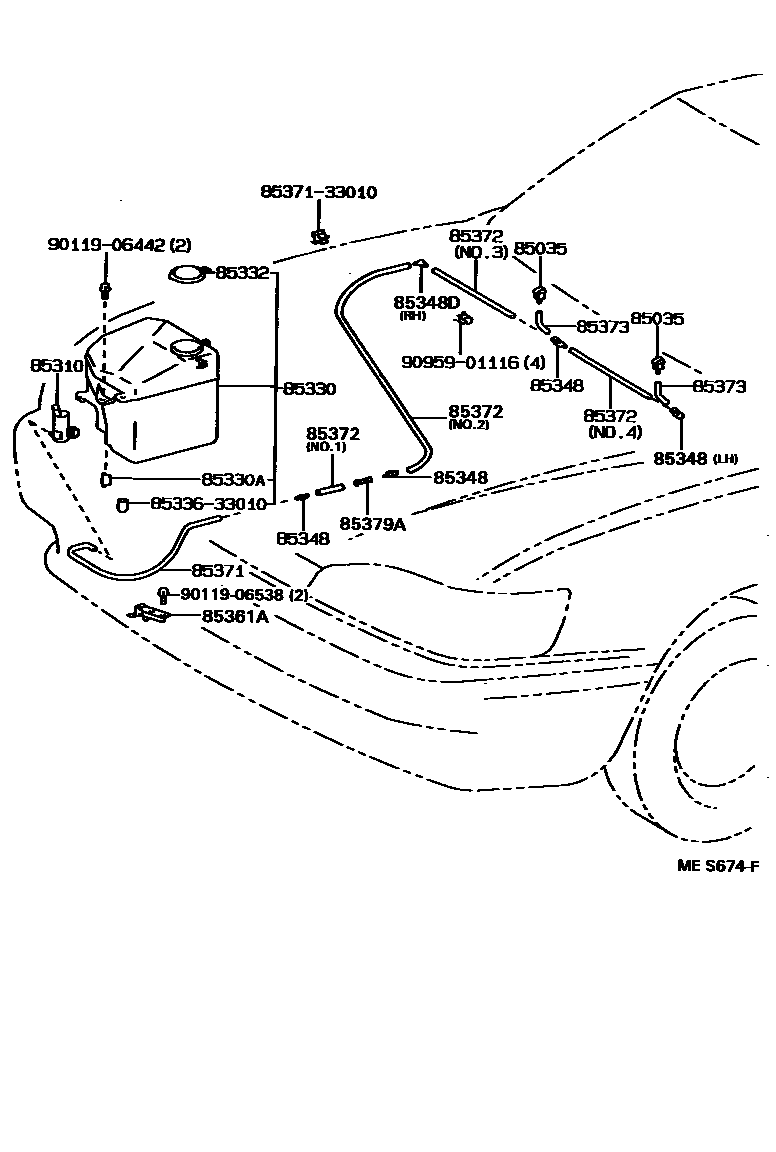

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
SUPER WHITE PEARL M.,051
BLACK,8K0
DARK MAUVE MICA M.,3K1
LT GRAYISH ROSE M OP,3K7
DARK GREEN MICA,6M1
SUPER WHITE PEARL MC,051
BLACK,202
DK.MAUVE MC.ME,3K1
RED MC.,3K3
LT GRAYISH ROSE M.OP,3K7
RED MM,3K4
BEIGE MC.ME.,4J1
BEIGE ME,4M9
DK.GREEN MC.,6M1
DK.GRAYISH PURPLE M.,928
BLACK
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
2-WAY
3-WAY
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
RH
LH
85361ABRACKET, WINDSHIELD WASHER, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450,NO.3,NO.4
L=1450(*H,L=180),NO.1
L=1530,NO.2
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450
85379ASPRING, WINDSHIELD WASHER HOSE
8533633010SWITCH ASSY, RESERVE TANK LEVEL WARNING
main85336-33010
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
9011906442
main90119-06442
9011906538
main90119-06538
9095901116
main90959-01116
17 parts on this diagram · 2 diagrams in section
