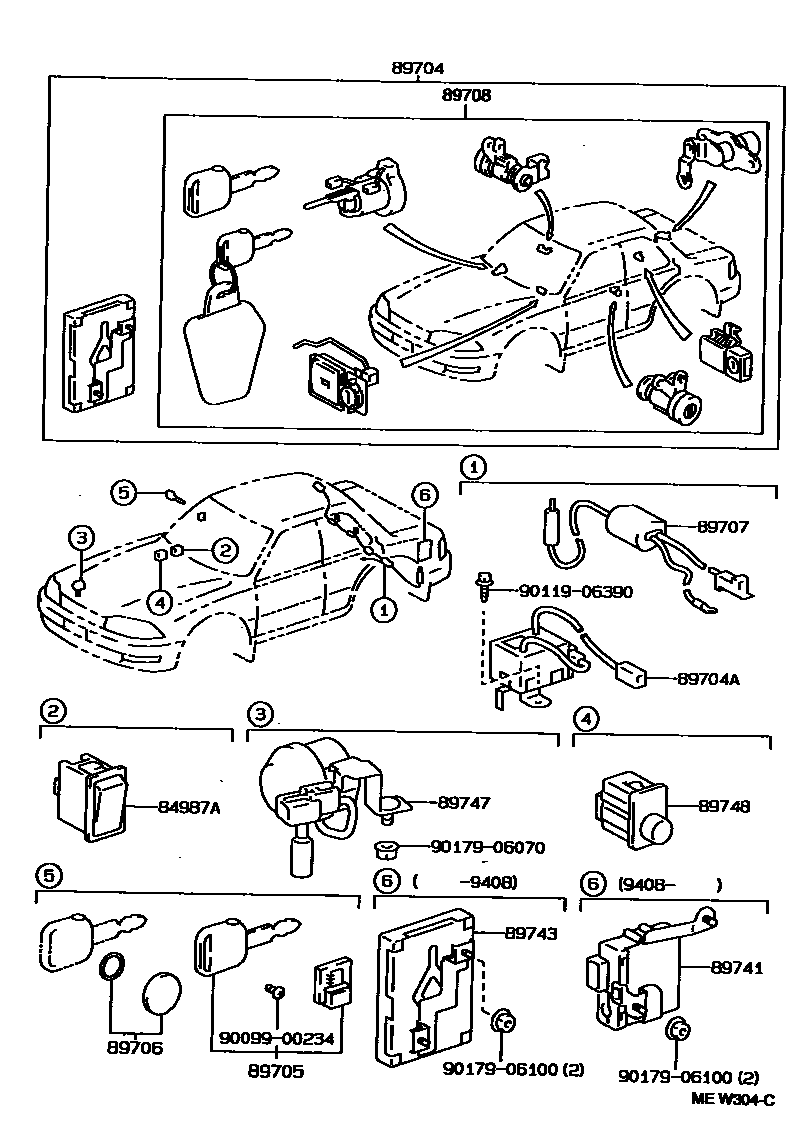

WIRELESS DOOR LOCK

84987ASWITCH, KEYLESS ENTRY CANCEL

main84987-33010-A0i199203-199308

IVORY,TRIM0#

main84987-33010-C0i199203-199308

BLACK,TRIM2#

main84987-33010-K0i199203-199308

MEDIUM TAUPE,TRIM9#

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-33060-A0i199203-199308

IVORY,TRIM0#

main89704-33060-C0i199203-199308

BLACK,TRIM2#

main89704-33060-K0i199203-199308

TAUPE,TRIM9#

main89704-33100-C0i199308-199408

BLACK,TRIM2#

main89704-33100-E0i199308-199408

OAK,TRIM4#

main89704-33100-K0i199308-199408

TAUPE,TRIM9#

main89704-33160-A0i199408-199608

IVORY,TRIM4#

main89704-33160-K0i199408-199608

MD.TAUPE,TRIM9#

89704AFILTER, NOISE(FOR WIRELESS DOOR LOCK)

main90980-05194i199203-199608

89705TRANSMITTER, DOOR CONTROL

main89705-50011i199203-199308

1 SET

main89705-50051i199203-199308

2 SET

main89705-50945i199203-199308

3 SET

main89705-50946i199308-199408

1 SET

main89705-50947i199308-199408

2 SET

main89705-50948i199308-199408

3 SET

main89742-24070i199408-199608

89706BATTERY SET, TRANSMITTER

main89706-50010i199203-199608

89707CORD SUB-ASSY, WIRELESS DOOR LOCK

main89707-33010i199203-199308

main89707-33050i199308-199408

main89707-33051i199408-199608

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-33050-A0i199408-199608

IVORY,TRIM4#

main89708-33050-K0i199408-199608

MD.TAUPE,TRIM9#

89741RECEIVER, DOOR CONTROL

main89741-33110i199408-199608

89743RECEIVER, DOOR CONTROL

main89743-33010i199203-199308

main89743-33060i199308-199408

89747BUZZER, WIRELESS DOOR LOCK

main89747-33010i199308-199608

89748CONTROLLER, WIRELESS DOOR LOCK BUZZER

main89748-33010-C0i199308-199408

BLACK,TRIM2#

main89748-33010-E0i199308-199608

OAK,TRIM4#

main89748-33010-K0i199308-199608

TAUPE,TRIM9#

9009900234

main90099-00234

9011906390

main90119-06390

9017906070

main90179-06070

9017906100

main90179-06100

15 parts on this diagram · 1 diagram in section
