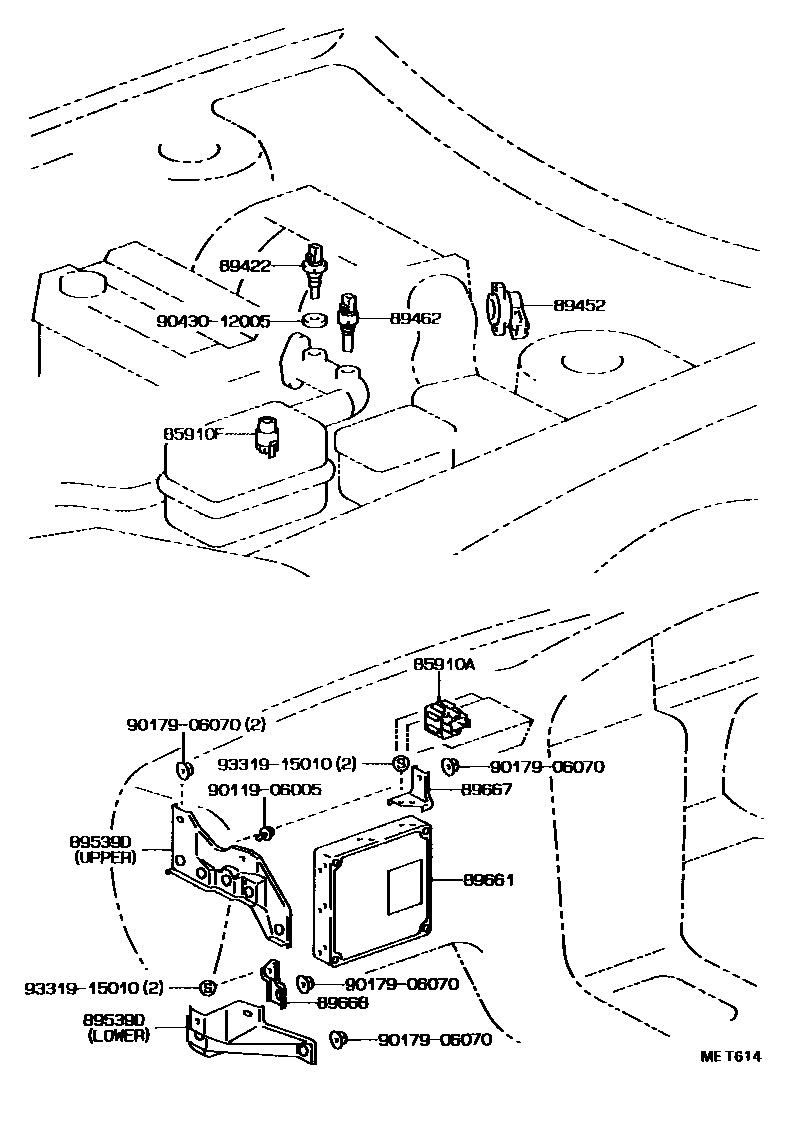

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-22040iVCV10199203-199608

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iVCV10199203-199308

main90987-02009iVCV10199308-199608

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iVCV10199203-199608

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-32060iVCV10199203-199608

89462SWITCH, START INJECTOR TIME

main89462-20020iVCV10199203-199408

89539DBRACKET, COMPUTER

main89539-33010iVCV10199203-199308

UPPER

main89539-33020iVCV10199203-199308

LOWER

main89539-33060iVCV10199308-199608

UPPER

main89539-33070iVCV10199308-199608

LOWER

89661COMPUTER, ENGINE CONTROL

main89661-33280iVCV10199203-199408

main89661-33580iVCV10199408-199608

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33020iVCV10199203-199608

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33030iVCV10199203-199608

9011906005

main90119-06005

9017906070

main90179-06070

9043012005

main90430-12005

9331915010

main93319-15010

13 parts on this diagram · 1 diagram in section
