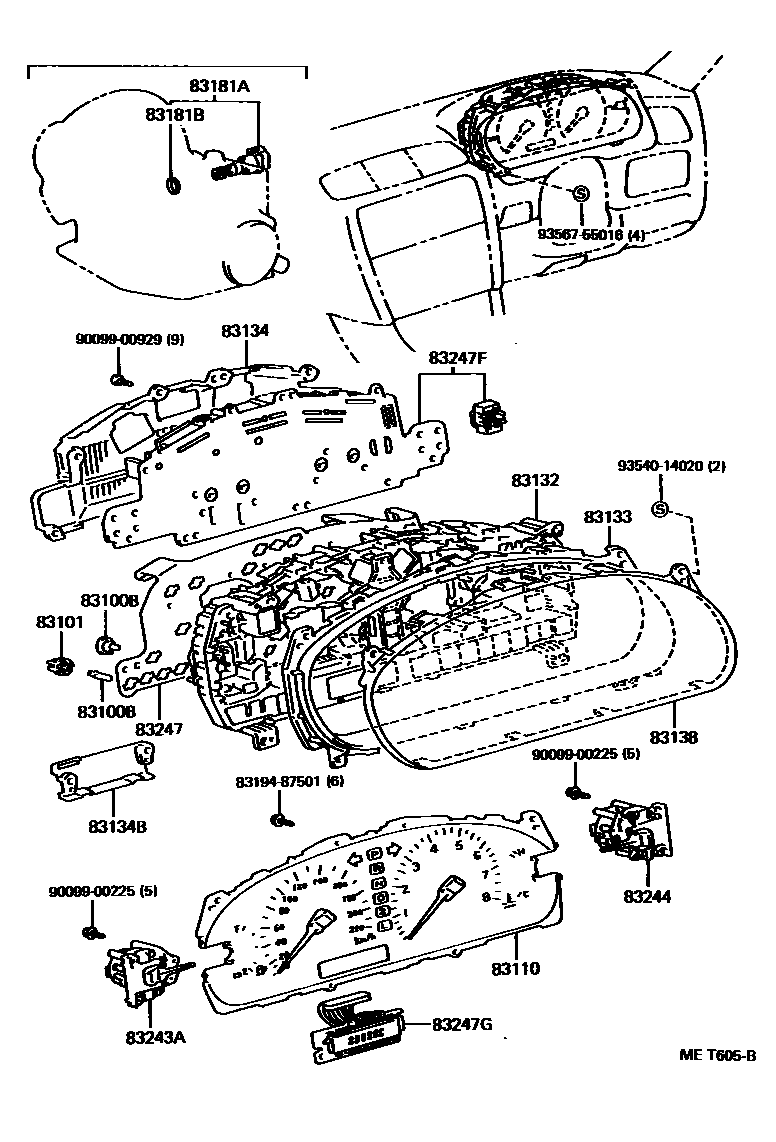

METER
83100BBULB, COMBINATION METER, NO.1
12V 1.4W,W(SOCKET)
14V 2.0W,W/O SOCKET
14V 3.0W,BLUE CAP
14V 3.0W
14V 3.0W,LONG LIFE
12V 1.2W W/O SOCKET
83101SOCKET SUB-ASSY, COMBINATION METER BULB
OD=11.3 BLACK
OD=12.5 GREEN
OD=12.2 BLUE
83110SPEEDOMETER ASSY
W(*80)
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83134COVER, COMBINATION METER, NO.1
83134BCOVER, COMBINATION METER, NO.2
83138GLASS, SPEEDOMETER
83181BRING, O (FOR SPEEDOMETER SENSOR)
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
W(*80)
83247FPLATE, METER CIRCUIT, NO.1 (FOR COMPUTER)
83247GPLATE, METER CIRCUIT, NO.2 (FOR COMPUTER)
8319487501
main83194-87501
9009900225
main90099-00225
9009900929
main90099-00929
9354014020
main93540-14020
9356755016
main93567-55016
20 parts on this diagram · 2 diagrams in section
