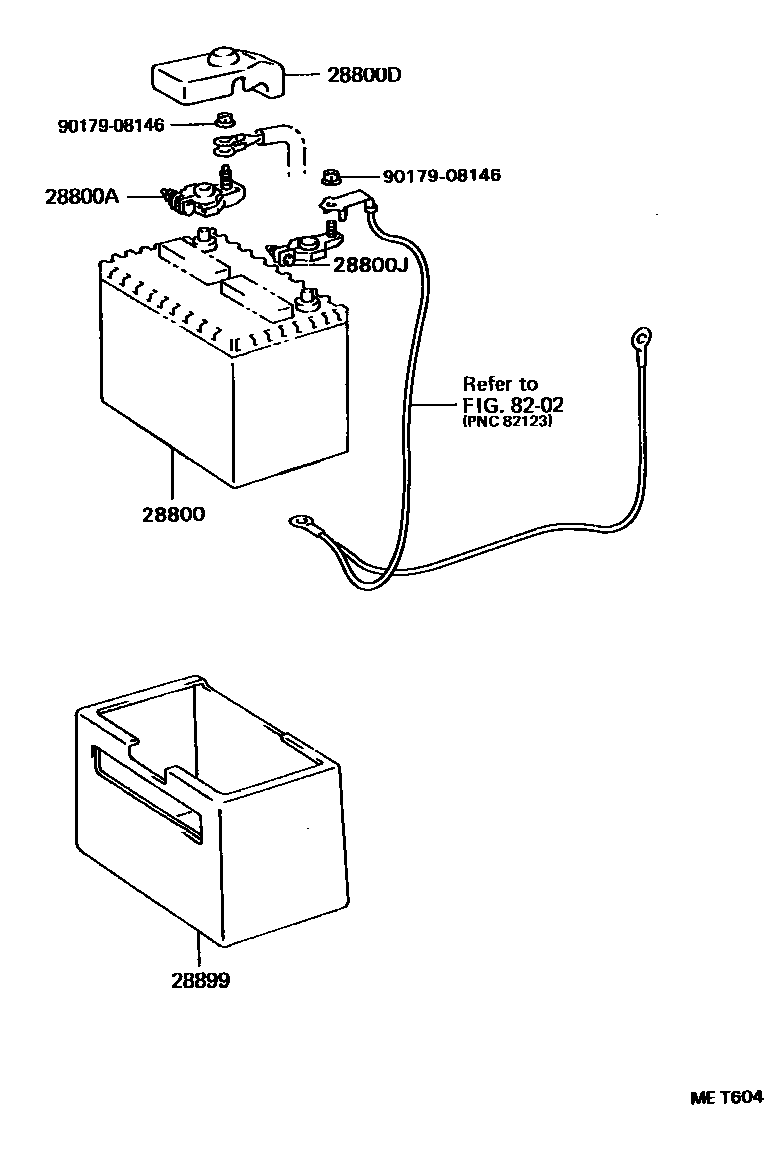

BATTERY & BATTERY CABLE

28800BATTERY

main28800-42030i3VZFE..VCV10199203-199608

55D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i3VZFE..VCV10199203-199608

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i3VZFE..VCV10199203-199608

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i3VZFE..VCV10199203-199608

28899INSULATOR, BATTERY

main28899-62050i3VZFE..VCV10199203-199308

main28899-62051i3VZFE..VCV10199308-199608

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

7 parts on this diagram · 1 diagram in section
