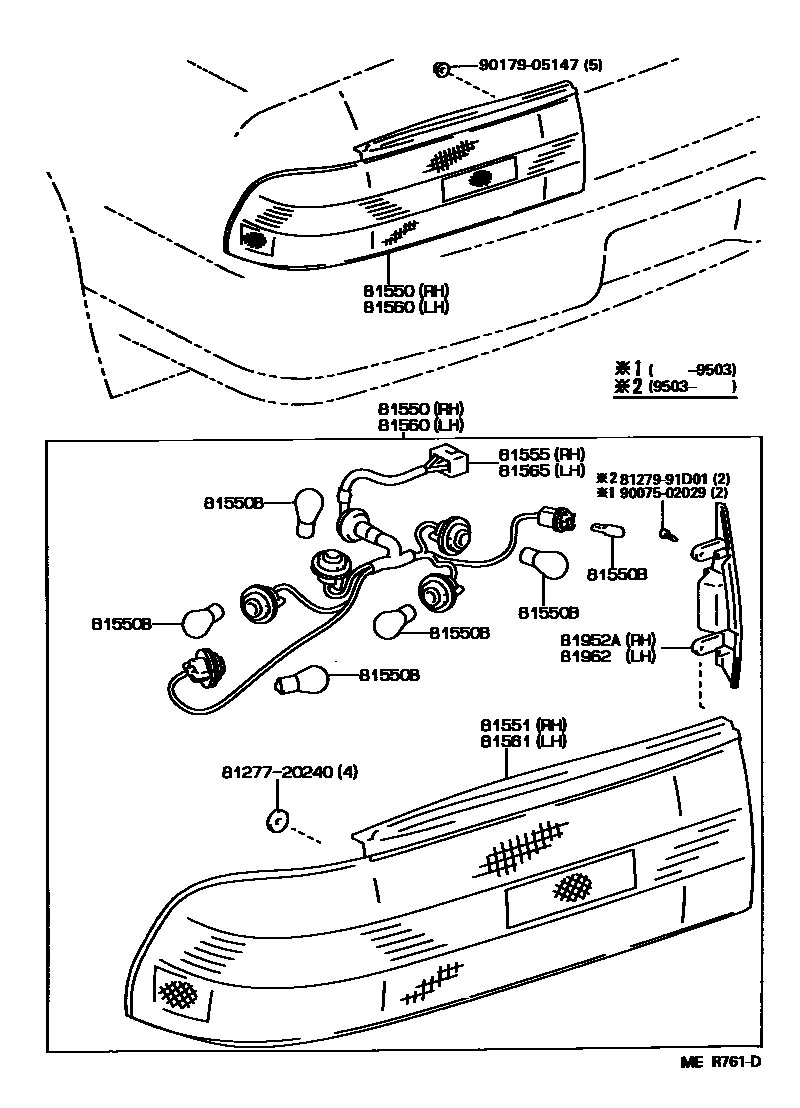

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-33060iVCV10199203-199408

main81550-33120iVCV10199408-199608

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-12010×2iVCV10199203-199608

12V 5W

main99132-11210×6iVCV10199203-199608

12V 21W

main99132-21210×4iVCV10199203-199408

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-33060iVCV10199203-199408

main81551-33110iVCV10199408-199608

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-33060iVCV10199203-199408

main81555-33120iVCV10199408-199608

81560LAMP ASSY, REAR COMBINATION, LH

main81560-33060iVCV10199203-199408

main81560-33120iVCV10199408-199608

81561LENS, REAR COMBINATION LAMP, LH

main81561-33060iVCV10199203-199408

main81561-33110iVCV10199408-199608

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-33060iVCV10199203-199408

main81555-33120iVCV10199408-199608

81952ACOVER, REAR LAMP, RH

main81556-33040iVCV10199203-199608

81962COVER, REAR LAMP, LH

main81566-33040iVCV10199203-199608

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

8127991D01WASHER, SIDE TURN SIGNAL LAMP

main81279-91D01

9007502029

main90075-02029

9017905147

main90179-05147

13 parts on this diagram · 1 diagram in section
