E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

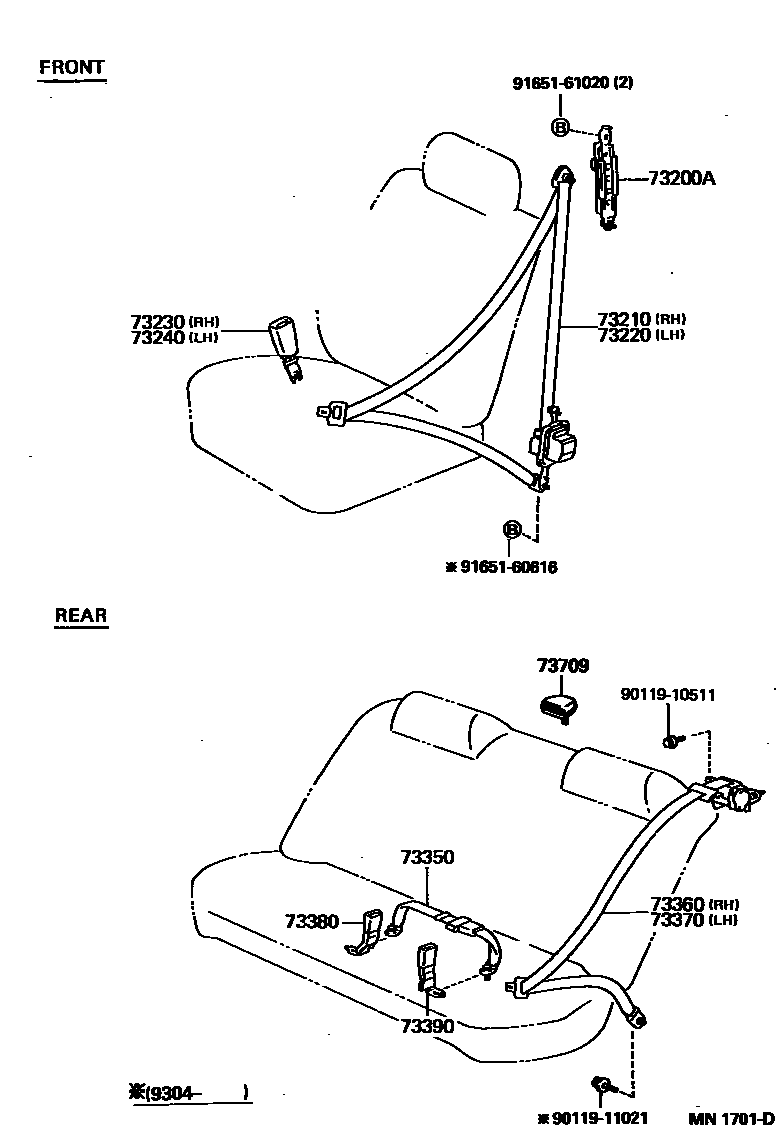

Parts diagram
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-33010-01×2i199203-199408
BLACK,TRIM2#
main73200-33010-02×2i199203-199206
TAUPE,TRIM9#
main73200-33010-05×2i199203-199308
GREIGE,TRIM0#
main73200-33010-E1×2i199308-199608
OAK,TRIM4#
main73200-33010-K0×2i199206-199608
TAUPE,TRIM9#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-33070-C1i199203-199306
BLACK,TRIM2#
main73210-33070-E1i199203-199306
GREIGE,TRIM0#
main73210-33070-K1i199203-199306
TAUPE,TRIM9#
main73210-33071-C0i199306-199405
BLACK,TRIM2#
main73210-33071-E2i199308-199405
OAK,TRIM4#
main73210-33071-K0i199306-199405
TAUPE,TRIM9#
main73210-33072-C1i199405-199408
BLACK,TRIM2#
main73210-33072-E3i199405-199608
OAK,TRIM4#
main73210-33072-K1i199405-199608
TAUPE,TRIM9#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-33070-C1i199203-199306
BLACK,TRIM2#
main73220-33070-E1i199203-199306
GREIGE,TRIM0#
main73220-33070-K1i199203-199306
TAUPE,TRIM9#
main73220-33071-C0i199306-199405
BLACK,TRIM2#
main73220-33071-E2i199308-199405
OAK,TRIM4#
main73220-33071-K0i199306-199405
TAUPE,TRIM9#
main73220-33072-C1i199405-199408
BLACK,TRIM2#
main73220-33072-E3i199405-199608
OAK,TRIM4#
main73220-33072-K1i199405-199608
TAUPE,TRIM9#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-33070-C0i199203-199408
BLACK,TRIM2#
main73230-33070-E0i199203-199308
GREIGE,TRIM0#
main73230-33070-E1i199308-199608
OAK,TRIM4#
main73230-33070-K0i199203-199608
TAUPE,TRIM9#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-33070-C0i199203-199408
BLACK,TRIM2#
main73230-33070-E0i199203-199308
GREIGE,TRIM0#
main73230-33070-E1i199308-199508
OAK,TRIM4#
main73230-33070-K0i199203-199508
TAUPE,TRIM9#
main73230-33150-E0i199508-199608
OAK,TRIM4#
main73230-33150-K0i199508-199608
TAUPE,TRIM9#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-33050-C0i199203-199408
BLACK,TRIM2#
main73350-33050-E0i199203-199308
GREIGE,TRIM0#
main73350-33050-E1i199308-199608
OAK,TRIM4#
main73350-33050-K0i199203-199608
TAUPE,TRIM9#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-33014-E1i199508-199608
OAK,TRIM4#
main73360-33014-K1i199508-199608
TAUPE,TRIM9#
main73360-33050-C1i199203-199306
BLACK,TRIM2#
main73360-33050-E1i199203-199306
GREIGE,TRIM0#
main73360-33050-K1i199203-199306
TAUPE,TRIM9#
main73360-33051-C0i199306-199408
BLACK,TRIM2#
main73360-33051-E2i199308-199408
OAK,TRIM4#
main73360-33051-E3i199408-199508
OAK,TRIM4#
main73360-33051-K0i199306-199408
TAUPE,TRIM9#
main73360-33051-K1i199408-199508
TAUPE,TRIM9#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-33014-E1i199508-199608
OAK,TRIM4#
main73370-33014-K1i199508-199608
TAUPE,TRIM9#
main73370-33050-C1i199203-199306
BLACK,TRIM2#
main73370-33050-E1i199203-199306
GREIGE,TRIM0#
main73370-33050-K1i199203-199306
TAUPE,TRIM9#
main73370-33051-C0i199306-199408
BLACK,TRIM2#
main73370-33051-E2i199308-199408
OAK,TRIM4#
main73370-33051-E3i199408-199508
OAK,TRIM4#
main73370-33051-K0i199306-199408
TAUPE,TRIM9#
main73370-33051-K1i199408-199508
TAUPE,TRIM9#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-33050-C0i199203-199405
BLACK,TRIM2#
main73380-33050-E0i199203-199308
GREIGE,TRIM0#
main73380-33050-E1i199308-199405
OAK,TRIM4#
main73380-33050-K0i199203-199405
TAUPE,TRIM9#
main73380-33051-C1i199405-199408
BLACK,TRIM2#
main73380-33051-E2i199405-199608
OAK,TRIM4#
main73380-33051-K1i199405-199608
TAUPE,TRIM9#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73480-33050-C0i199203-199405
BLACK,TRIM2#
main73480-33050-E0i199203-199308
GREIGE,TRIM0#
main73480-33050-E1i199308-199405
OAK,TRIM4#
main73480-33050-K0i199203-199405
TAUPE,TRIM9#
main73480-33051-C1i199405-199408
BLACK,TRIM2#
main73480-33051-E2i199405-199608
OAK,TRIM4#
main73480-33051-K1i199405-199608
TAUPE,TRIM9#
73709BRACKET SUB-ASSY, TETHER ANCHOR
main73708-33010i199311-199403
9011910511
main90119-10511
9011911021
main90119-11021
9165160616
main91651-60616
9165161020
main91651-61020

15 parts on this diagram · 1 diagram in section
