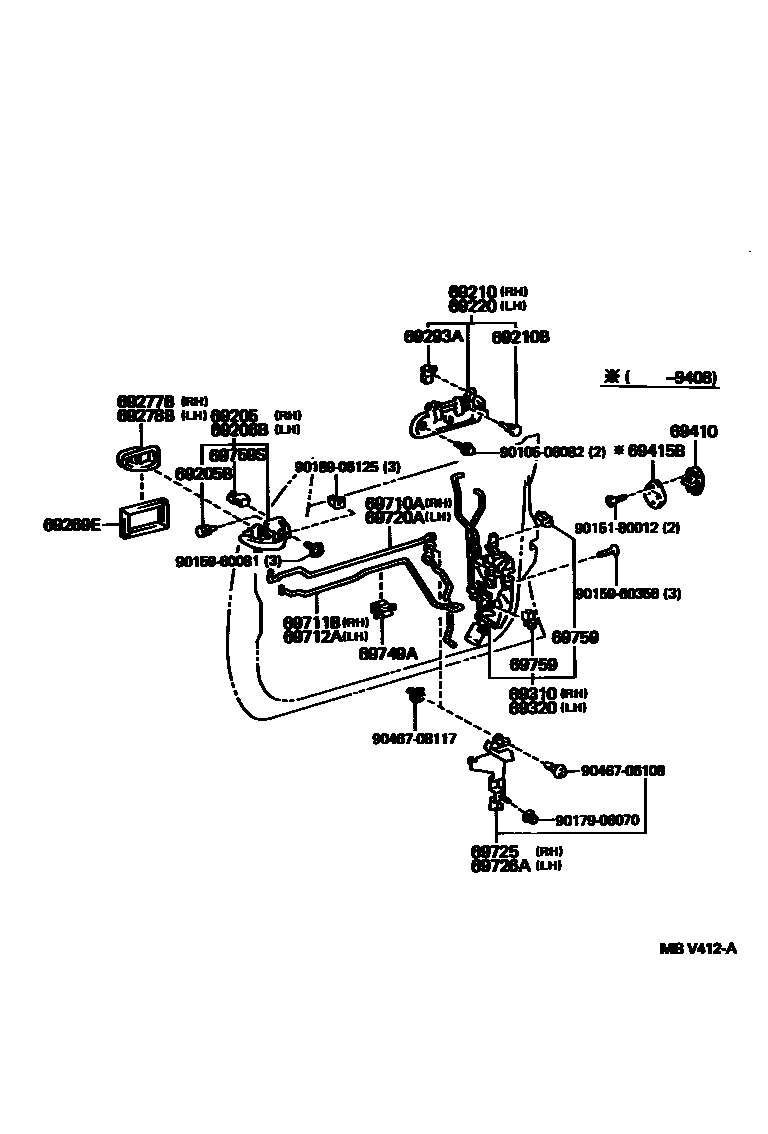

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
IVORY,TRIM0#
TAUPE,TRIM9#
BLACK,TRIM2#
OAK,TRIM4#
TAUPE,TRIM9#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
IVORY,TRIM0#
TAUPE,TRIM9#
BLACK,TRIM2#
OAK,TRIM4#
TAUPE,TRIM9#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE PEARL MC,051
BLACK,202
DK.MAUVE MC M,3K1
RED MC,3K3
LT.GRAYISH ROSE M OP,3K7
RED M.M,3K4
MAGENTA MC.,3L3
BEIGE MC,4J1
BEIGE ME,4M9
DK.GREEN MC,6M1
DK.GREEN M.M.,6P2
DARK BLUE M.M,8K0
DK.GRAYISH PURPLE ME,928
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE PEARL MC,051
BLACK TONING G,202
DK.MAUVE MC M TONING,3K1
RED MC TONING G,3K3
LT.GRAYISH ROSE M OP,3K7
RED M.M,3K4
MAGENTA MC.,3L3
BEIGE MC ME TONING G,4J1
BEIGE ME,4M9
DK.GREEN MC TONING G,6M1
DK.GREEN M.M.,6P2
DARK BLUE M.M,8K0
DK.GRAYISH PURPLE ME,928
69269ESEAL, FRONT DOOR INSIDE HANDLE
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM2#
IVORY,TRIM0#
OAK,TRIM4#
TAUPE,TRIM9#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM2#
IVORY,TRIM0#
OAK,TRIM4#
TAUPE,TRIM9#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
GREEN
GRAY
NATURAL
69759SSNAP, FRONT DOOR INSIDE HANDLE
LH
RH
9010506082
main90105-06082
9015180012
main90151-80012
9015960081
main90159-60081
9015960356
main90159-60356
9017906070
main90179-06070
9018906125
main90189-06125
9046706108
main90467-06108
9046708117
main90467-08117
31 parts on this diagram · 1 diagram in section
