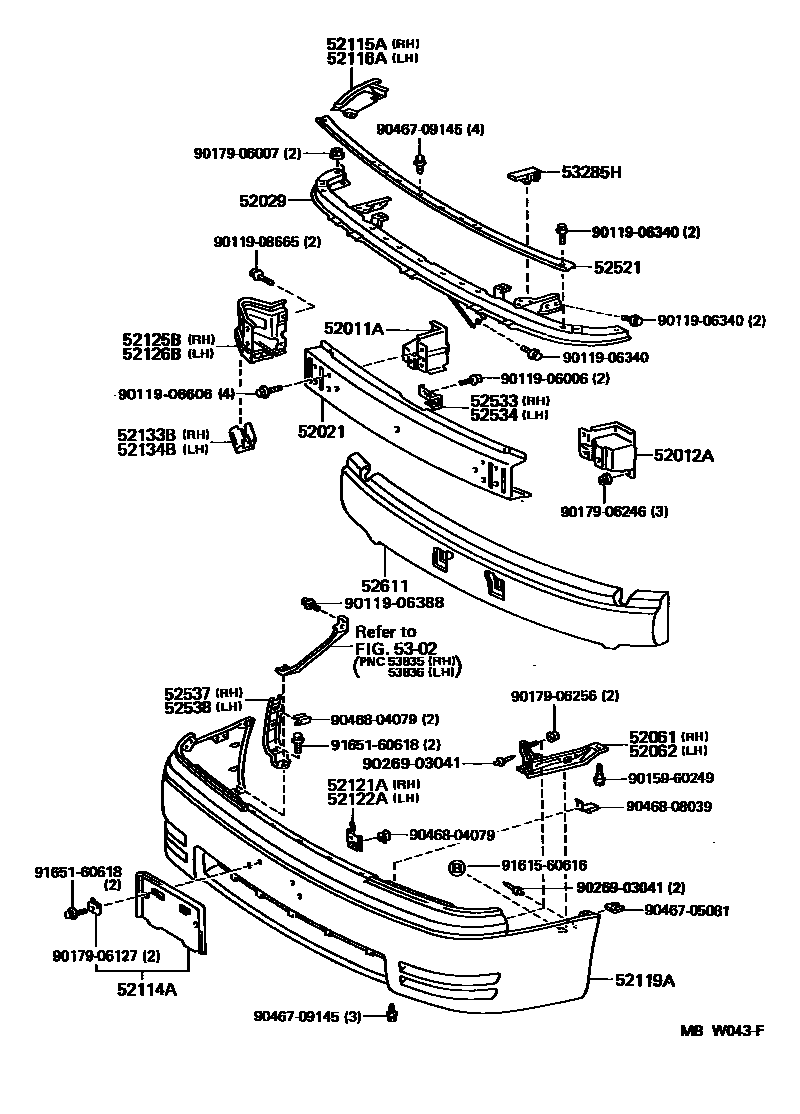

FRONT BUMPER & BUMPER STAY
52011AARM SUB-ASSY, FRONT BUMPER, RH
52012AARM SUB-ASSY, FRONT BUMPER, LH
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52061SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH
52062SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH
52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH
52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH
52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH
52133BBRACKET, FRONT BUMPER EXTENSION MOUNTING, RH
52134BBRACKET, FRONT BUMPER EXTENSION MOUNTING, LH
52521RETAINER, FRONT BUMPER, UPPER CENTER
52533BRACKET, FRONT BUMPER RETAINER, NO.1
52534BRACKET, FRONT BUMPER RETAINER, NO.2
52537RETAINER, FRONT BUMPER END, RH
52538RETAINER, FRONT BUMPER END, LH
52611ABSORBER, FRONT BUMPER ENERGY
5302HOOD & FRONT FENDER
53285HSEAL, RADIATOR SIDE AIR, NO.1
9011906006
main90119-06006
9011906340
main90119-06340
9011906388
main90119-06388
9011906606
main90119-06606
9011908665
main90119-08665
9015960249
main90159-60249
9017906007
main90179-06007
9017906127
main90179-06127
9017906246
main90179-06246
9017906256
main90179-06256
9026903041
main90269-03041
9046705081
main90467-05081
9046709145
main90467-09145
9046804079
main90468-04079
9046808039
main90468-08039
9161560616
main91615-60616
9165160618
main91651-60618
41 parts on this diagram · 1 diagram in section
