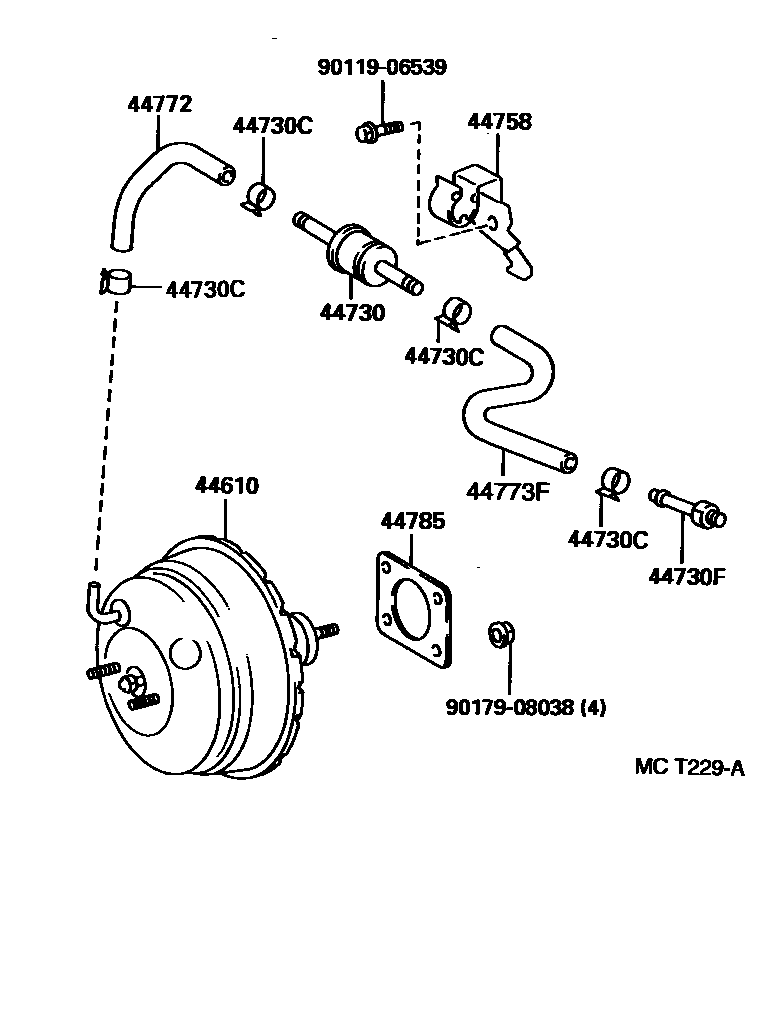

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-33100iVCV10199203-199308

W(*66)

main44610-33120iVCV10199203-199308

main44610-33200iVCV10199308-199408

W(*66)

main44610-33240iVCV10199308-199408

main44610-33340iVCV10199408-199608

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20120iVCV10199203-199608

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×4iVCV10199203-199608

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iVCV10199203-199608

44758BRACKET, VACUUM CHECK VALVE

main44758-33010iVCV10199203-199608

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-33010iVCV10199203-199608

44773FHOSE, UNION TO CHECK VALVE

main44773-33010iVCV10199203-199608

44785GASKET, BRAKE BOOSTER

main44785-32010iVCV10199203-199608

9011906539

main90119-06539

9017908038

main90179-08038

10 parts on this diagram · 1 diagram in section
