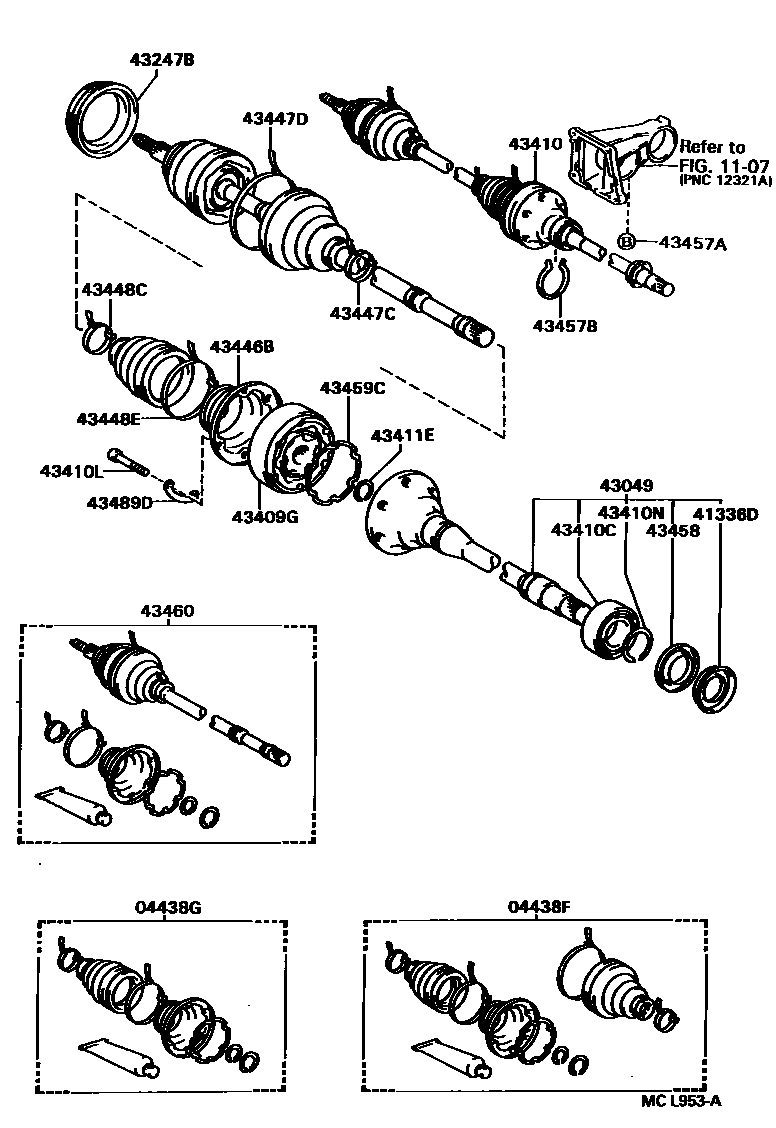

FRONT DRIVE SHAFT

0001 1 0002 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-33020iVCV10199203-199210

main04438-33021iVCV10199210-199608

sub04438-33022

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-33010iVCV10199203-199210

main04438-33011iVCV10199210-199608

sub04438-33012

1107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iVCV10199203-199608

43049SHAFT SUB-ASSY, FRONT DRIVE FLANGE

main43049-33010iVCV10199203-199608

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iVCV10199308-199608

main43247-33010iVCV10199203-199308

43409GJOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH

main43409-17010iVCV10199203-199608

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-33030iVCV10199203-199408

sub43410-33130

main43410-33040iVCV10199203-199408

W(*66)

sub43410-33140

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90369-41001iVCV10199203-199608

sub90363-41002

43410LBOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)

main90110-10007×6iVCV10199203-199608

sub90110-10015

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iVCV10199203-199608

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-26028iVCV10199203-199608

43446BCOVER, FRONT AXLE INBOARD JOINT, RH

main43446-17010iVCV10199203-199608

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16030iVCV10199203-199408

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16070iVCV10199203-199608

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16030iVCV10199203-199608

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16100iVCV10199307-199608

main90949-01340iVCV10199203-199307

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iVCV10199203-199608

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iVCV10199203-199608

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iVCV10199203-199608

43459CGASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43459-17010iVCV10199203-199608

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-39185iVCV10199203-199210

main43470-39186iVCV10199210-199408

sub43470-39187

main43470-39205iVCV10199203-199210

W(*66)

main43470-39206iVCV10199408-199608

sub43470-39207

43489DWASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43489-17010×3iVCV10199203-199608

23 parts on this diagram · 2 diagrams in section
