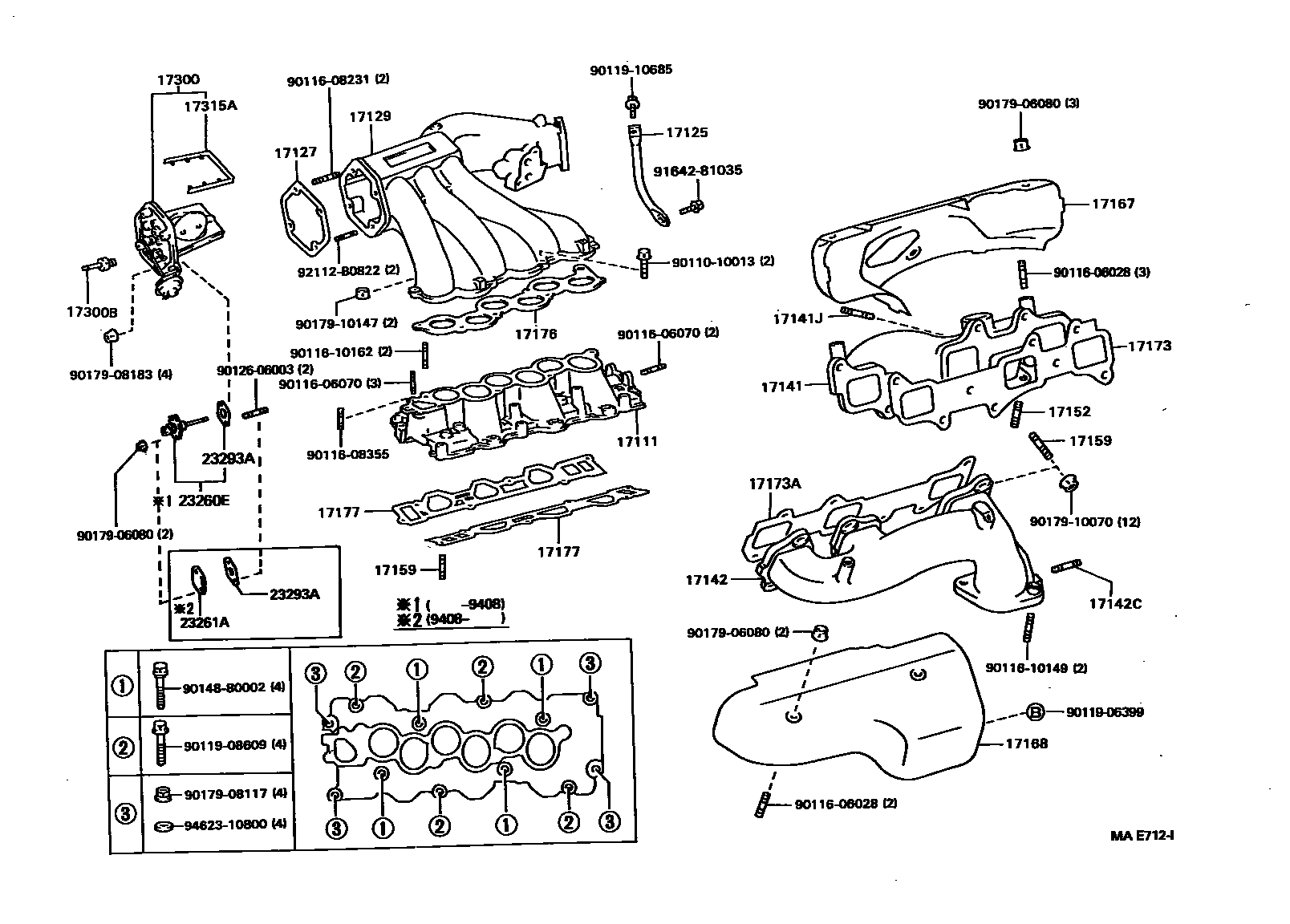

MANIFOLD
17111MANIFOLD, INTAKE
17125STAY, SURGE TANK, NO.1
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
17141MANIFOLD, EXHAUST
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17142CASE, EXHAUST MANIFOLD, NO.2
17142CBOLT, STUD(FOR EXHAUST MANIFOLD, LH)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE SIDE
EXHAUST SIDE
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17300VALVE ASSY, INTAKE AIR CONTROL
17300BUNION(FOR INTAKE AIR CONTROL VALVE)
17315AGASKET, INTAKE AIR CONTROL VALVE
23260EINJECTOR ASSY, COLD START FUEL
23261ACOVER, INJECTOR
23293AGASKET, COLD START FUEL INJECTOR
9011010013
main90110-10013
9011606028
main90116-06028
9011606070
main90116-06070
9011608231
main90116-08231
9011608355
main90116-08355
9011610149
main90116-10149
9011610162
main90116-10162
9011906399
main90119-06399
9011908609
main90119-08609
9011910685
main90119-10685
9012606003
main90126-06003
9014880002
main90148-80002
9017906080
main90179-06080
9017908117
main90179-08117
9017908183
main90179-08183
9017910070
main90179-10070
9017910147
main90179-10147
9164281035
main91642-81035
92112B0822
main92112-B0822
9462310800
main94623-10800
42 parts on this diagram · 1 diagram in section
