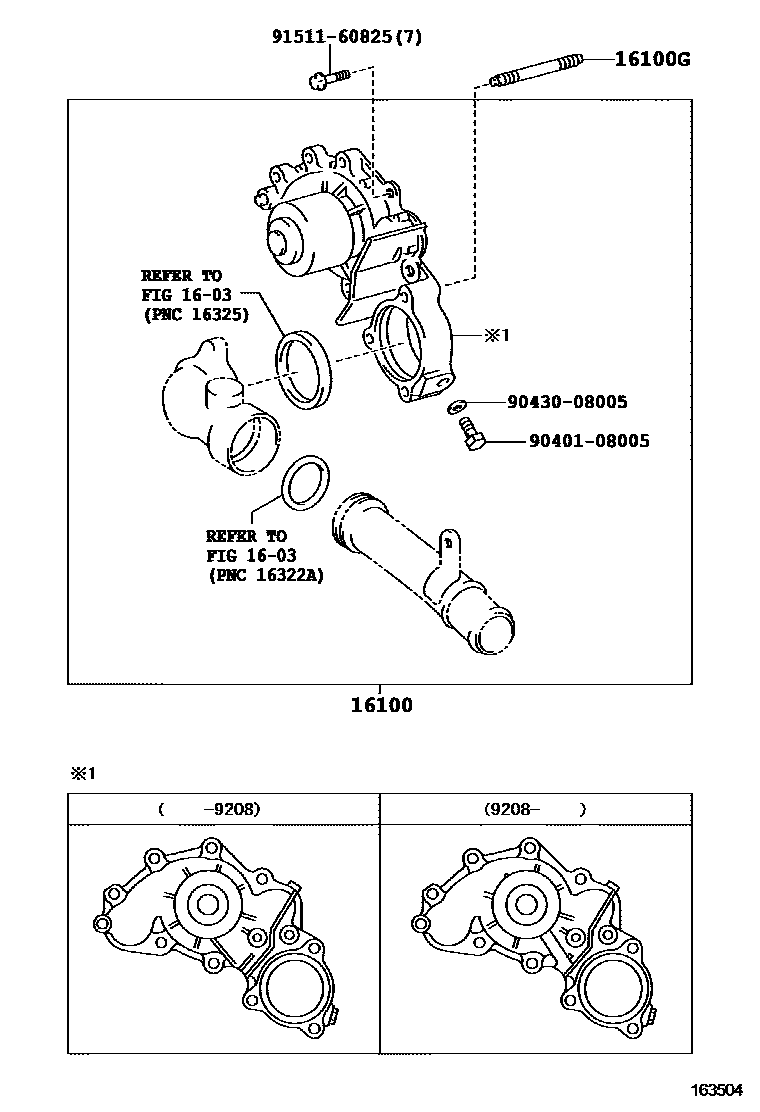

WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-69305i3VZFE..VCV10199203-199208

main16100-69335i3VZFE..VCV10199208-199608

16100GBOLT, STUD(FOR WATER PUMP SET)

main90116-08270×3i3VZFE..VCV10199203-199608

9040108005

main90401-08005

9043008005

main90430-08005

9151160825

main91511-60825

6 parts on this diagram · 1 diagram in section
