STANDARD TOOL

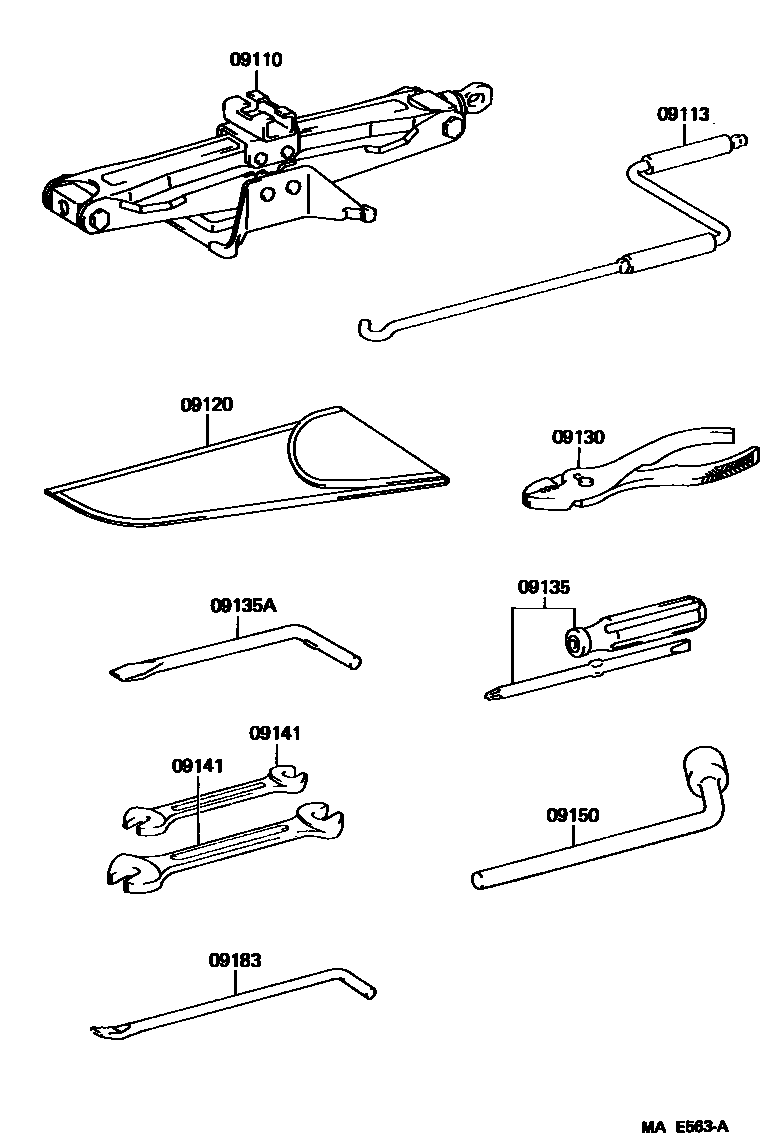

Parts diagram

09110JACK ASSY

main09110-33010i199203-199608

09113HANDLE, JACK

main09113-30030i199203-199608

09120BAG, TOOL

main09120-32010i199203-199608

09130PLIERS

main09130-50010i199203-199407

main09130-50030i199407-199608

09135DRIVER, SCREW

main09135-50020i199203-199407

main09135-50040i199407-199608

09135ABIT, SCREW DRIVER

main09135-50010i199203-199308

09141SPANNER

main09141-50010i199203-199407

8 X 10

main09141-50020i199203-199407

12 X 14

main09141-50050i199407-199608

8 X 10

main09141-50060i199407-199608

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010i199203-199608

09183WRENCH, WHEEL CAP

main09183-00010i199203-199608

9 parts on this diagram · 1 diagram in section
