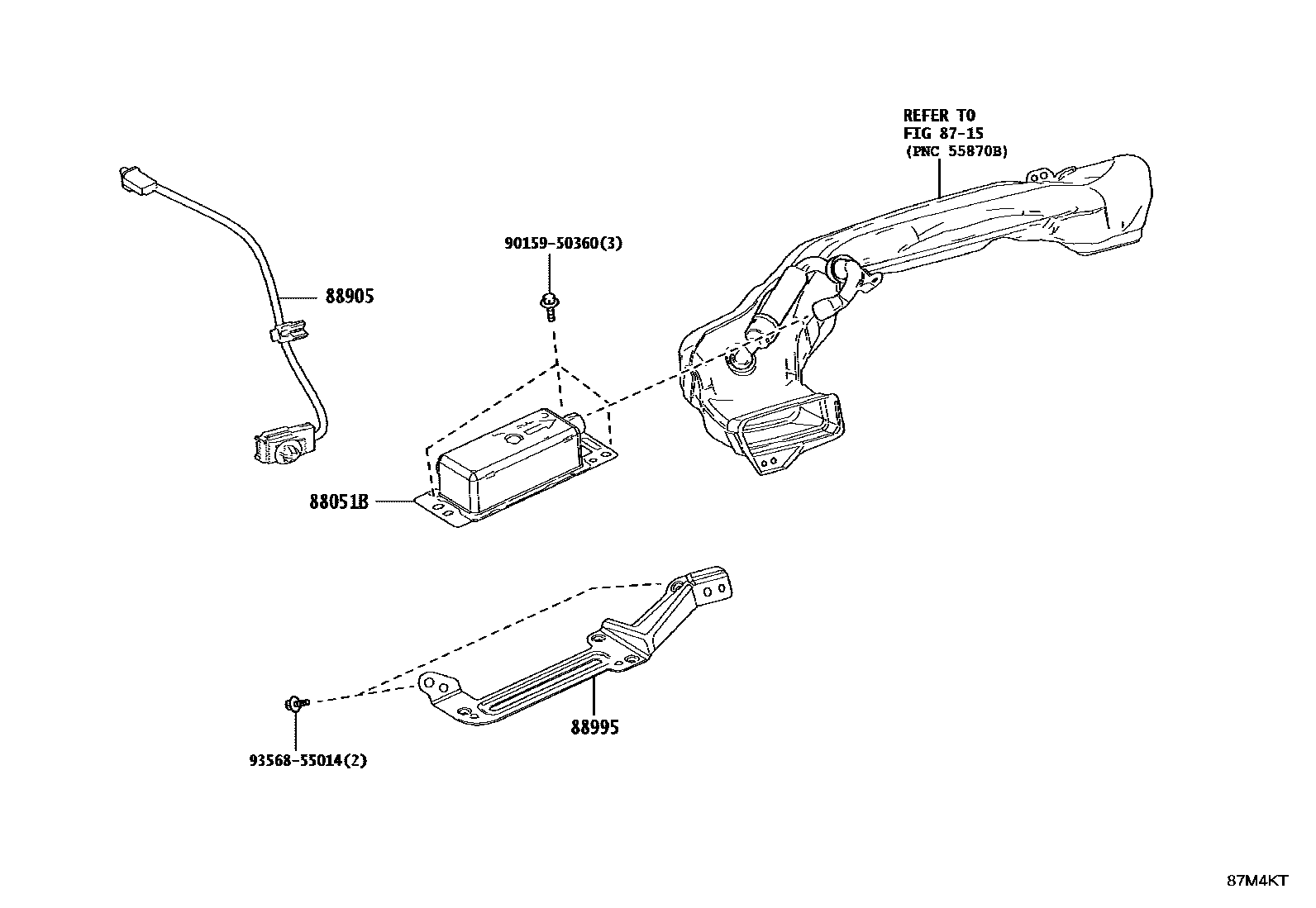

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88051BGENERATOR SUB-ASSY, ION, NO.1

main88051-48010iAXVA80,AXVH80..G..(ARL,EUR)202406

88905WIRE SUB-ASSY, AIR PURIFIER, NO.1

main82144-33200iAXVA80,AXVH80..G..(ARL,EUR)202406

88995BRACKET,ION GENERATOR, NO.1

main88995-33210iAXVA80,AXVH80..LHD..G..EUR202406

main88995-33220iAXVH80..RHD..G202406

9015950360

main90159-50360

9356855014

main93568-55014

6 parts on this diagram · 2 diagrams in section
