Toyota 281220 — HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85279AJOINT, HEADLAMP CLEANER HOSE
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85353COVER, HEADLAMP WASHER, RH
85354COVER, HEADLAMP WASHER, LH
85361CBRACKET, WASHER
85362BRACKET, WASHER, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
9007591002
9016750063

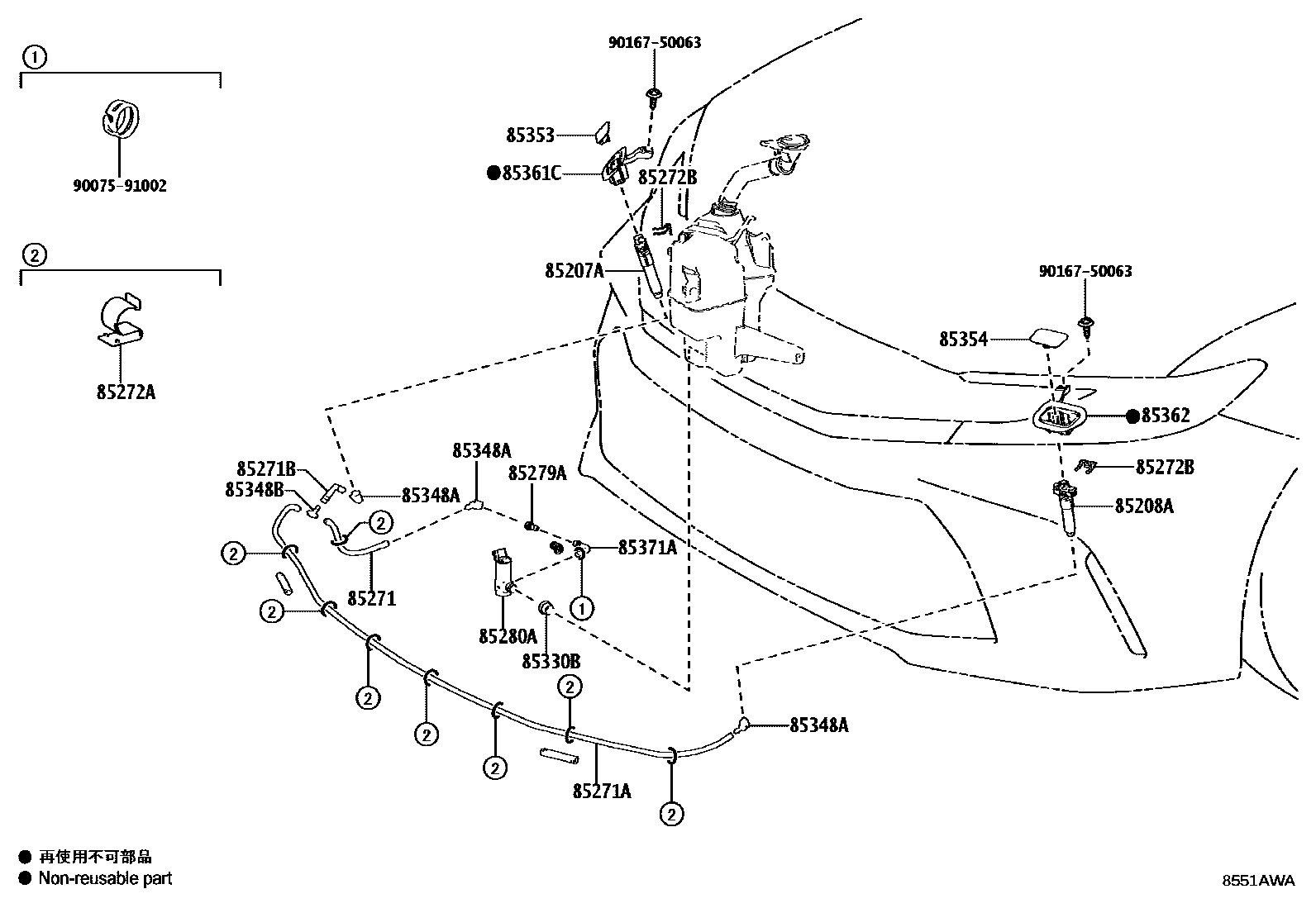

19 parts on this diagram · 1 diagram in section
HEADLAMP CLEANER for Toyota 281220
This section contains 19 genuine Toyota parts for the HEADLAMP CLEANER system of the Toyota 281220. Key components include: ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH, ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH, HOSE, HEADLAMP CLEANER, NO.1, HOSE, HEADLAMP CLEANER, NO.2, HOSE, HEADLAMP CLEANER, NO.3.
