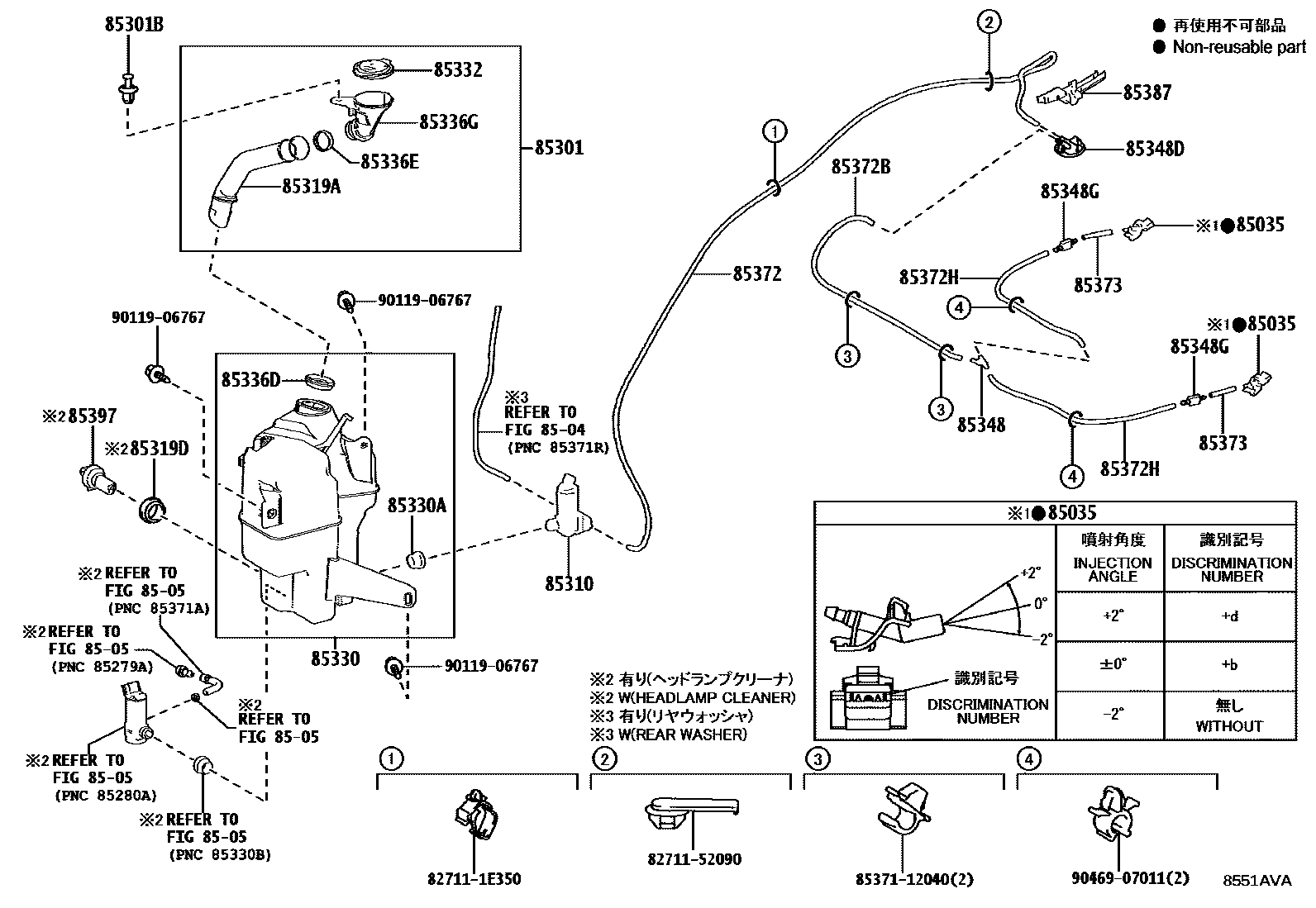

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
8504REAR WASHER
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85301BCLIP, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85319AHOSE, INLET
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85336GGAGE, WATER LEVEL
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1530
L=1530,UPPER GRADE PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&HEAD UP DISPLAY-WITH
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=330)
L=1450(*H,L=330),UPPER GRADE PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&HEAD UP DISPLAY-WITH
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1000(*H,L=370)
L=1000(*H,L=370),UPPER GRADE PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&HEAD UP DISPLAY-WITH
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=60)
L=1450(*H,L=60),UPPER GRADE PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&HEAD UP DISPLAY-WITH
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
9011906767
main90119-06767
9046907011
main90469-07011
28 parts on this diagram · 1 diagram in section
