SIDE MOULDING
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
NO PAINT REQ.
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
NO PAINT REQ.
6701FRONT DOOR PANEL & GLASS
75551HMOULDING, ROOF DRIP SIDE, RH
main75555-33080iAXVH80..LHD..G..EUR; AXVH80..N..GCC; MXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406
KOREA SPEC&UPPER GRADE PACKAGE; VALUE PACKAGE
75552HMOULDING, ROOF DRIP SIDE, LH
main75556-33080iAXVH80..LHD..G..EUR; AXVH80..N..GCC; MXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406
KOREA SPEC&UPPER GRADE PACKAGE; VALUE PACKAGE
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-52040×4iAXVH80..LHD..G..EUR; AXVH80..N..GCC; MXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406
KOREA SPEC&UPPER GRADE PACKAGE; VALUE PACKAGE
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75792CLIP, DOOR WINDOW FRAME MOULDING
9026904051
main90269-04051
9046708225
main90467-08225

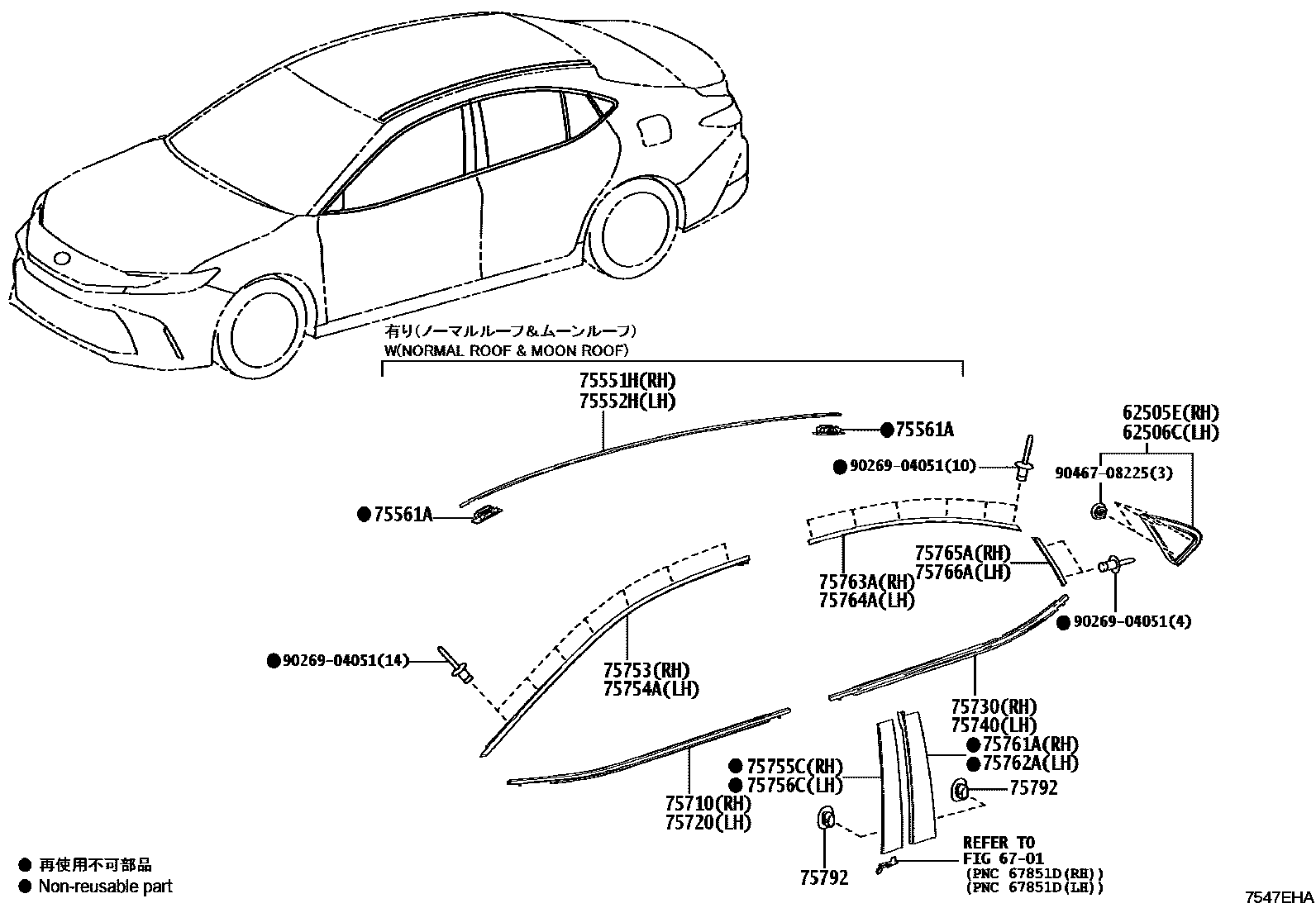

23 parts on this diagram · 2 diagrams in section
