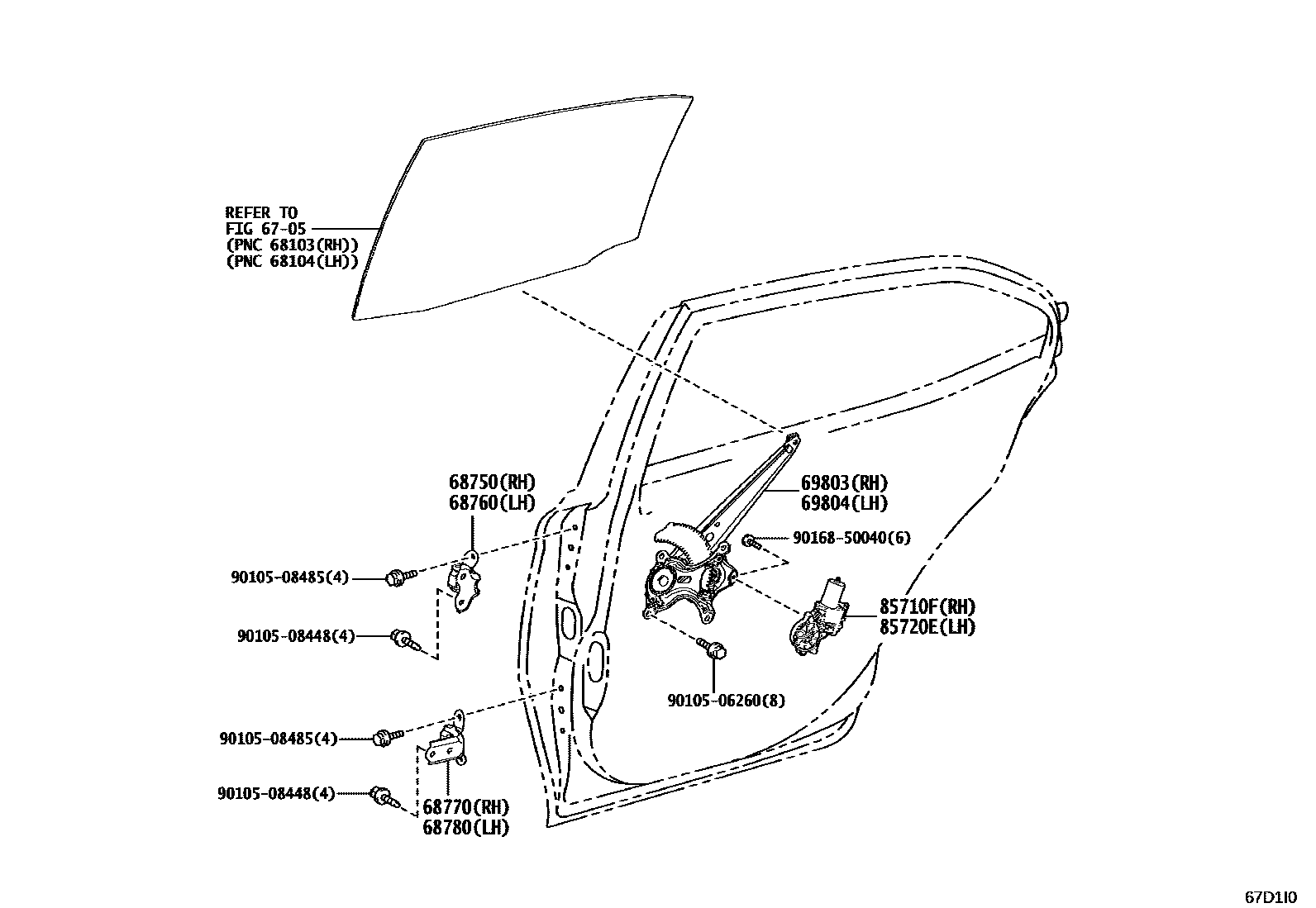

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iAXVA80,AXVH80,MXVA80202406

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iAXVA80,AXVH80,MXVA80202406

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33050iAXVA80,AXVH80,MXVA80202406

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33050iAXVA80,AXVH80,MXVA80202406

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33090iAXVA80,AXVH80,MXVA80202406

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33090iAXVA80,AXVH80,MXVA80202406

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-16200iAXVA80,AXVH80,MXVA80202406

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-16220iAXVA80,AXVH80,MXVA80202406

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
